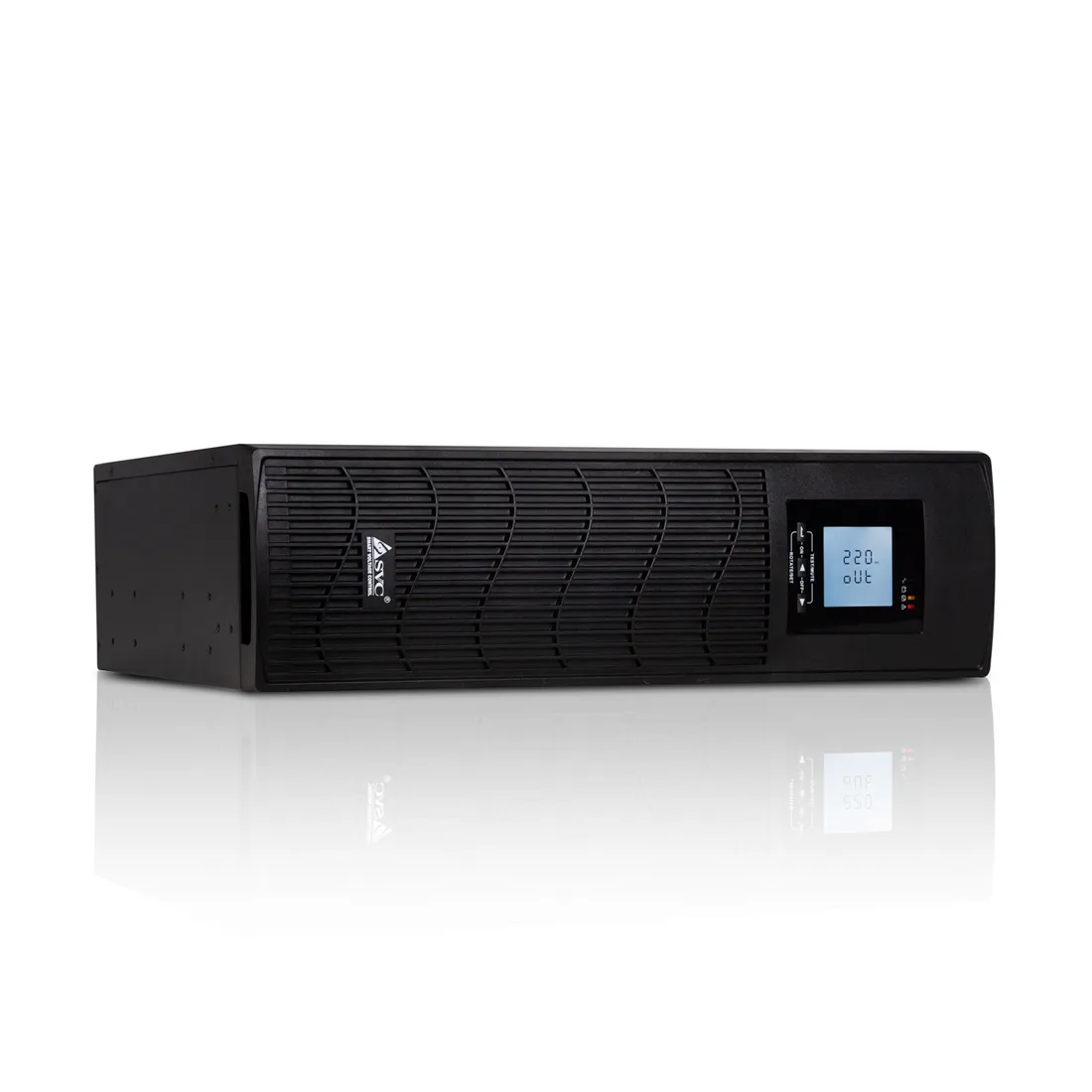

Источник бесперебойного питания SVC RTU-2KL-LCD

Дополнительная батарея для источника бесперебойного питания позволяет увеличить время автономной работы ИБП, кроме того, использование дополнительных батарей особенно необходимо, если в вашей электрической сети возможны длительные перебои, в то время как подключенные устройства не могут оставаться без питания. Герметичный свинцово-кислотный батарейный блок имеет встроенное зарядное устройство. Возможна горячая замена батареи. Заряжается блок в течение 8 часов, и может служить как для домашнего использования, так и для профессионального.

Max. capacity used
100 %

Main Input voltage
230 B

Rated power [W]
720 W

Rated power
1200 VA

Product Type
Uninterruptible power supply (UPS)

Input Connection Type
IEC 60320 C13

output connection type
6 IEC 60320 C13
2 IEC 60320 C13 splash

Battery Type
Lead-acid batteryadditionally installed batteries
0

Free battery compartments
0

Typical recharge time
16 h

number of RBC™ cartridges
1

Battery voltage
24 V

Battery capacity
9,0 Ah

Charger power (W)
13 W rated

Battery capacity in volt-ampere-hours
204 vach working time

battery life
3…5 year(s)

Spare battery
APCRBC161

The possibility of increasing the autonomy time
0

Max. capacity used
100 %

Main Input voltage
230 B

Rated power [W]
960 W

Rated power
1600 VA

Product Type
Uninterruptible power supply (UPS)

Input Connection Type
IEC 60320 C13

output connection type
6 IEC 60320 C13
2 IEC 60320 C13 splash

Battery Type
Lead-acid battery

Pre-installed batteries
0

Free battery compartments
0

Typical recharge time
16 h

number of RBC™ cartridges
1

Battery voltage
24 V

Battery capacity
9,0 Ah

Charger power (W)
11 W rated

Battery capacity in volt-ampere-hours
180 vach working time

battery life
3…5 year(s)

Spare battery
APCRBC166

The possibility of increasing the autonomy time
0

This APC Back-UPS Pro provides high-quality power protection for high-performance gaming consoles and PCs, routers/modems, and gaming accessories. The 2200VA/1320W tower UPS has 6 outlets, 4 of which are dedicated to battery backup and surge protection, and 2 for surge protection only. It has a surge energy rating of 1080J. It features automatic voltage regulation (AVR) to adjust voltage sags and surges to preset levels. It comes with PowerChute Serial Shutdown, an easy-to-use and secure system shutdown software with power and energy management features. This UPS is backed by a 2-year repair or replacement warranty, and a 3-year repair or replacement warranty for EU countries only. It has 3 USB ports (Type A + C) for intelligent charging of personal devices.

Maximum adjustable power (W)
500 W/750 VA

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
The sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-280 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Rated battery voltage
24 V

Expected battery life (years)
3-5

The number of RBC
1

Battery power (W)
49 W

Smart Slot interface Port(s)
, USB

The Control Panel
Multifunctional LCD status and control console

Emergency Power Off (EPO)
Optional

The available number of SmartSlot™ interfaces
1

Pulse energy rating
540joules

Filtering
Constant multi-pole noise filtering: 0.3% IEEE overvoltage bandwidth: zero response time limits: compliant with UL 1449

Maximum height
161 mm, 16.1 cm

Maximum width
138 mm, 13.8 cm

Maximum depth
369 mm, 36.9 cm

Net weight
11.8 kg
