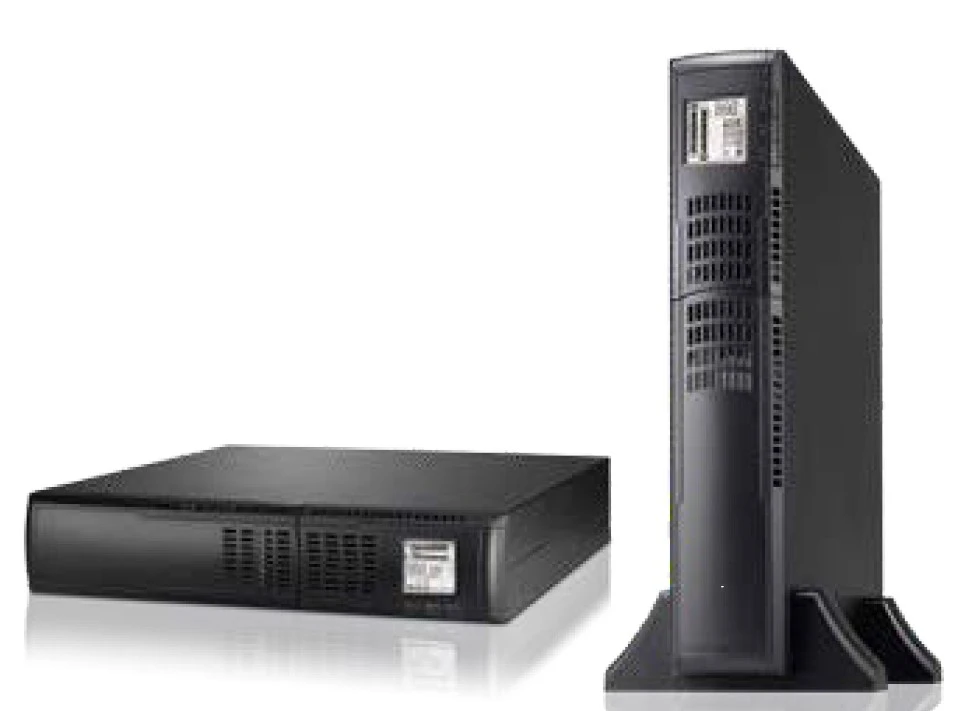

ИБП Astergo AST.UPS.LRT3000VS2U (AST.UPS.LRT3000VS2U)

Overview Presentation High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. Delivery time Usually in stock Key features Runtime with 10,000 W load Min.-max.: 1000-10000 W 2 min 52 sec Max. Used capacity 100% Main Input voltage 230 V Product type Uninterruptible power supply (UPS) Other Input voltage 220 V 240 V Main Output voltage 230 V Other Output voltage 220 V 240 V Nominal power [W] 10000 W Nominal power, VA 10000 VA Output connection type Permanent three-wire (1P + N + E) 1 Quantity Unit 4U provided equipment 1 USB cable 1 RS-232 configuration cable 2 Rack mounting brackets 2 Rack mounting guides 1 external battery pack 1 battery cable operation manual Easy UPS On-Line Series Batteries and Autonomous Runtime View Runtime Graph Efficiency View Efficiency Graph Battery type Lead-acid battery Battery voltage 192 V Extended runtime capability 0 Pre-installed batteries 0 Free battery slots 0 Typical recharge time 5 h Battery life 3…5 year(s) Charger power (W) 235 W nominal General Number of slots occupied by power modules 0 Number of slots not occupied by power modules 0 spare No Physical parameters Colour Black (RAL 7010) Height 173 mm Width 438 mm Depth 710 mm Product weight 68 kg Mounting location Front Mounting type Bottom Mounting type Rack-mount USB-compatible Yes Mounting position Horizontal Input Input voltage limits 110...300 V 60 % load 176...300 V full load Number of input connections 1 Non-detachable three-wire (1P + N + E) Network frequency 40–70 Hz autosensing Output Maximum set power (VA) 10000 VA Maximum set power (W) 10000 W Output frequency 50/60 Hz +/- 3 Hz synchronized with the mains Harmonic distortion 1 % UPS type Double conversion topology Waveform type Sine wave Efficiency 94 % (full load) Bypass type Internal bypass (automatic and manual) Crest factor 3:1 Conformity Certifications CE UKCA EAC TISI Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental parameters Ambient operating temperature 0…40 °C Relative humidity 0…95 % non-condensing Altitude 0...3000 m Ambient storage temperature -15…60 °C Storage relative humidity 0…95 % non-condensing condensate Storage altitude 0…15000 m Acoustic level 58 dBA Heat output 2128 ‰ IP protection rating IP20 Communication and admin alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency power off (EPO) Yes Free slots 1 Control panel Multifunctional LCD status and control panel Surge and filter protection Surge energy rating 600 J

Voltage
200 VAC / 208 VAC / 220 VAC / 230 VAC / 240 VAC, single phase

Input voltage range 220/230/240 VAC:
175~280VAC (100% load);
120~175VAC (70%~100% load)
200/208VAC: 160~280VAC (100% load);
120~160 VAC (70%~100% load)

Input frequency range
50/60 Hz (+/- 10 Hz) Automatic selection

Input connection
Power cord (IEC-320-C20 socket)

Adjusting the output voltage
200 / 208 / 220 / 230 / 240 AC voltage +/- 2%

Adjusting the output frequency
50/60 Hz (+/- 0.05 Hz)

Overload (all modes)
105%~125% 1 min; 126%~150% 15 sec

Internal battery
6 pcs. 12V/9 Ah

Maximum charging current
2A

Interface
RS232 x 1, USB x 1, SNMP slot x 1

Dimensions (WxDxH) mm
440 x 610 x 89 mm

Weight
28 kg

Main features
- Output power: 450 Watts / 800VA
- Output connectors:
(4) Schuko CEE 7 (Battery Backup)
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: Schuko CEE 7/7P
- Length of the cord: 1.5 meters

Exit
- Maximum specified power (W): 450 Watts / 800VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sinusoid
- Switching time: 6 ms typical: 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto-detection
- Input voltage range when operating from the mains: 170-280V
- Number of power cables: 1

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Expected battery life (years): 3-5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery ( battery operation)
- Sound signal: Signal of switching to battery operation mode : special signal of battery exhaustion: continuous overload signal

Surge protection and noise filtering
- Burst energy rating: 156joules

Physical parameters
- Maximum height: 93MM, 9.25 cm
- Maximum width: 161MM, 16.05 cm
- Maximum depth: 305MM, 30.5 cm
- Net weight: 5.3 KG
- Gross weight: 5.6 KG
- Dimensions of the TRANSPORT package: 237x3632x373MM
- Color: Black

Environmental parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0-90 %
- Operating altitude range above sea level: 0-2032.1 meters
- Storage temperature: -20-50 °C
- Relative humidity of storage: 0-90 %
- Storage height above sea level: 0-15240 meters
- The level of acoustic noise at a distance of 1 m from the surface of the device: 40.0 dB (A)
- Protection class: IP20

Compliance
- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
