Беспроводная точка доступа H3C AOLYNK-UAP622G-AX15

Точка доступа Grandstream GWN7605

Grandstream GWN7605 — двухдиапазонная Wi-Fi точка доступа стандарта 802.11ac Wave-2, предназначенная для малых и средних сетей с умеренной плотностью клиентов. Обеспечивает стабильное соединение, широкое покрытие и поддержку до 100 одновременных пользователей.

Основные характеристики

• Стандарты Wi-Fi: IEEE 802.11a/b/g/n/ac (Wave-2)
• Работа в диапазонах 2,4 ГГц и 5 ГГц
• MU-MIMO 2x2:2 с технологией beamforming
• Суммарная скорость передачи данных до 1,27 Гбит/с
• Поддержка до 100+ одновременных клиентов
• Зона покрытия до 165 метров
• До 16 SSID (8 на каждый радиодиапазон)

Интерфейсы и питание

• 2 порта Gigabit Ethernet с автоопределением скорости
• Поддержка PoE 802.3af и PoE+ 802.3at
• Максимальное энергопотребление около 10,16 Вт

Сетевые функции и управление

• Встроенный контроллер для управления до 50 точек доступа серии GWN
• Облачное управление через GWN.Cloud и локальное через GWN Manager
• Поддержка IPv4/IPv6, VLAN (802.1Q), QoS
• Поддержка Mesh-сетей и Captive Portal

Безопасность

• Поддержка WPA3, WPA2-Enterprise и WPA2-PSK
• Защищённая загрузка и цифровая подпись прошивки
• Уникальные сертификаты безопасности для каждого устройства

Эксплуатация

• Рабочая температура: 0–40 °C
• Монтаж: настенный или потолочный внутри помещений

Область применения

• Офисы малого и среднего бизнеса
• Розничные помещения, кафе и торговые зоны
• Учебные аудитории и конференц-залы
• Гостиницы и общественные зоны

Точка доступа MikroTik RBSXTsqG-5acD

SXTsq 5 ac — это компактное и легкое наружное беспроводное устройство 5Ghz 802.11ac со встроенной антенной, идеально подходящее для соединений точка-точка или в качестве устройства CPE. Устройство включает в себя один порт Ethernet 10/100/1000 Мбит для полного использования скоростей, которые обеспечивает протокол 802.11ac. SXTsq 5 ac по-прежнему оснащен антенной с коэффициентом усиления 16 дБи, как и SXT 5 ac, предыдущая модель, однако конструкция антенны была улучшена, а физические размеры значительно уменьшены — SXTsq стал в два раза тоньше. - SXTsq 5 ac поддерживает диапазон 5150 МГц–5875 МГц

Технические характеристики

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC

• Встроенная 12 дБи 2x2 двухполяризационная направленная MIMO антенна
• Регулируемая мощность передачи: от 0 до 20 дБм / 1000 мВт
• Оптимизация на системном уровне для беспроводной передачи данных на расстояния, превышающие 13 км
• Технология TP-LINK Pharos MAXtream TDMA (TDMA — множественный доступ с разделением по времени) улучшает пропускную способность и производительность устройства, уменьшает задержку — идеальное решение для использования в режиме точка-многоточка
• Pharos Control — система централизованного управления сетью
• Режимы работы: точка доступа / клиент / точка доступа с роутером / точка доступа и клиент-роутер (WISP)
• Адаптер пассивного PoE поддерживает питание устройства на расстоянии до 60 метров по технологии PoE и позволяет дистанционно сбрасывать настройки устройства

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
8 individual antennas, 4 per bandwidth
2.4GHz, 3dBi gain
5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 8 Mbit/s to 2402 Mbit/s
IEEE 802.11ac: 6.5 Mbit/s to 1733 Mbit/s
IEEE 802.11n: 6.5 Mbit/s to 600 Mbit/s
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 8 Mbit/s to 1147 Mbit/s
IEEE 802.11n: 6.5 Mbit/s up to 600 Mbit/s
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
* The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2412 - 2484 MHz
5 GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions.


2.4G channel bandwidth: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
4×4:4 2.4GHz
4×4:4 5 GHz

Coverage area
Up to 175 meters
* coverage area may vary depending on the environment

Maximum transmitter power
5G: 25 dBm
2.4G: 26 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -99dBm@1Mbit/s, -91dBm@11Mbit/s; 802.11g: -94dBm @6Mbit/s, -78dBm@54Mbit/s;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
750+

Network interfaces
1x 1G port and 1x 2.5G port, support 3.5Gbps total bandwidth wired connection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included

SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS
802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 17W

Environmental conditions
Operation: from 0°C to 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight Dimensions of the device:
205.3mm(L)x205.3mm(W)x45.9mm(H); Device weight: 0.714kg
Dimensions of the whole package: 258x247x86mm; Weight of the whole package: 1.06kg

Package Contents Wireless
802.11ax access point model GWN7664, mounting kits, quick guide

Accordance
FCC, CE, RCM, IC

Wi-Fi standards
IEEE 802.11 a/b/g/n/ac/ax

Antennas
2 dual-band external antennas
2.4GHz, 3dBi gain, 5 GHz, 3dBi gain

Data transfer rate via Wi-Fi
5G:
IEEE 802.11ax: from 7.3 Mbit/s to 1201 Mbit/s;
IEEE 802.11ac: 6.5 Mbit/s to 867 Mbit/s;
IEEE 802.11n: 6.5 Mbit/s to 300 Mbit/s;
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54
2.4G Mbit/s:
IEEE 802.11ax: from 7.3 Mbit/s to 573.5 Mbit/s;
IEEE 802.11n: 6.5 Mbit/s to 300 Mbit/s;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
*The actual throughput can be affected by various factors, including environmental conditions,
distance between devices, radio interference in the work environment and the combination of devices in the network

Frequencies
2.4GHz radio: 2400-2483.5 MHz
5 GHz radio: 5150-5850 MHz


2.4G channel bandwidth: 20 and 40 MHz
5G: 20, 40 and 80 MHz

System and Wi-Fi protection
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking boot and lock
critical data/management by means of digital signatures, unique
security certificate/random default password for each device

MIMO
2x2:2 2.4GHz
2x2:2 5 GHz

Coverage area
Up to 175 meters
*coverage area may vary depending on the environment

Maximum power of the transmitter
5G: 22 dBm
2.4G: 24 dBm
*Maximum power depends on country, frequency band and MCS

Receiver sensitivity
2.4G
802.11b: -96dBm@1Mbit/s, -88dBm@11Mbit/s;
802.11g: -93dBm @6Mbit/s, -75dBm@54Mbit/s;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11;
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7;
802.11ac 20MHz: -67dBm@MCS8; 802.11ac: 40MHz: -63dBm @MCS9;
802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11;
802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11

SSIDs
A total of 32 SSIDs, 16 per radio channel (2.4GHz and 5 GHz)

Number of simultaneous client devices
500+

Network interfaces
2 x 10/100/1000 Base-T Ethernet ports with auto-detection

Additional ports
1 x Reset Button, 1x Kensington Lock

Mounting
Plank for wall or ceiling mounting indoors, mounting kits included


SIDs
Three-color LED device tracking and status indication

Network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS

Network management
The built-in controller can manage up to 50 local access points GWN
GWN.Cloud - a cloud platform for managing an unlimited number of access points GWN
GWN.Manager - a local software controller for managing up to 3,000 GWN access points

Power and energy efficiency
PoE 802.3af/ 802.3at;
Maximum power consumption: 9W

Environmental conditions
Operation: from 0°C to 45°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Dimensions and weight
Device dimensions: 180,4mmx180,4mmx40,8mm; Device weight: 443g
Dimensions of the whole package: 228.5x220x79mm; Weight of the whole package: 774g

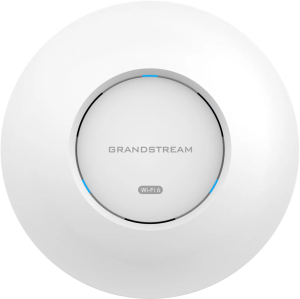

Package Contents Wireless access point model GWN7660 802.11ax, mounting kits, quick guide

Compliance with FCC, CE, RCM, IC
