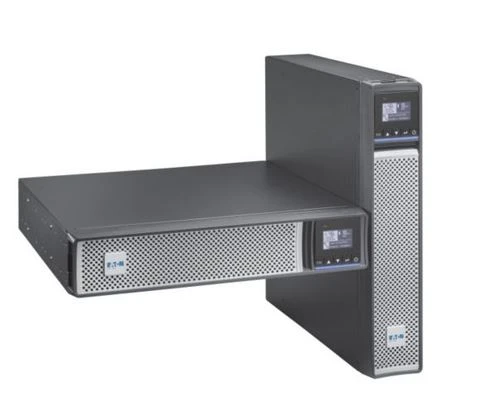

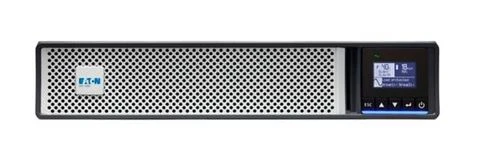

ИБП Eaton 5PX1500IRTNG2 5PX 1500i RT2U Netpack G2 (5PX1500IRTNG2)

Maximum adjustable power (W)
2.7 kW/3.0 kVA

Output Voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
Sinusoidal wave

Transmission time
6 ms is typical: 10 ms max

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
RBK43

Expected battery life (years)
3-5

Number of RBC
1

Battery power (W)
182 W

Interface Port(s)
RJ-45 serial port, SmartSlot, USB

Control Panel
Multifunctional LCD status and Control Console

Available number of SmartSlot™ interfaces
1

Operating Temperature
0-40 °C

Operating relative humidity
0–95 %

Working height
0-3048 meters

Storage temperature
-15–45 °C

Relative humidity of storage
0–95 %

Storage height
0 - 15240 meters

Noise is heard at a distance of 1 meter from the surface of the device.
55.0 dBA

Online Heat Dissipation
348.0 BTU/h

С коэффициентом мощности равным 0.9 и увеличенной силой зарядного тока до 12А. Используется для защиты питания файловых серверов и АТС, а также любого другого оборудования, предъявляющего повышенные требования к качеству сетевого электропитания. Принцип работы состоит в двойном преобразовании (double conversion) тока. Сначала входное переменное напряжение преобразуется в постоянное, затем обратно в переменное напряжение с помощью обратного преобразователя (инвертора). При потере питания в городской сети, время переключения в автономный режим равно нулю.

Maximum adjustable power (W)
2.7 kW/3.0 kVA

Output Voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
Sinusoidal wave

Transmission time
6 ms is typical: 10 ms max

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Spare battery
RBK43

Expected battery life (years)
3-5

Number of RBC
1

Battery power (W)
182 W

Interface Port(s)
RJ-45 serial port, SmartSlot, USB

Control Panel
Multifunctional LCD status and Control Console

Available number of SmartSlot™ interfaces
1

Operating Temperature
0-40 °C

Operating relative humidity
0–95 %

Working height
0-3048 meters

Storage temperature
-15–45 °C

Relative humidity of storage
0–95 %

Storage height
0 - 15240 meters

Noise is heard at a distance of 1 meter from the surface of the device.
55.0 dBA

Online Heat Dissipation
348.0 BTU/h
