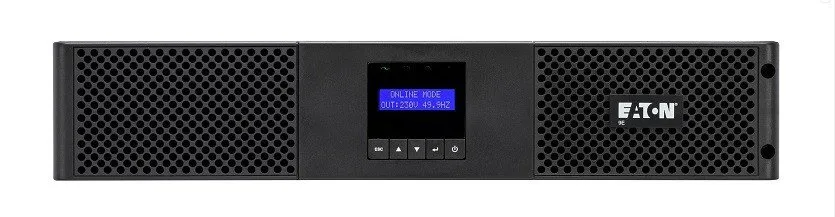

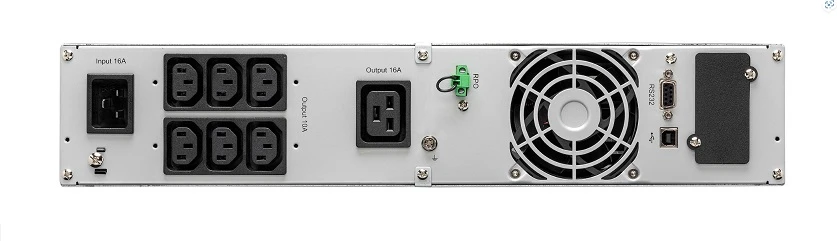

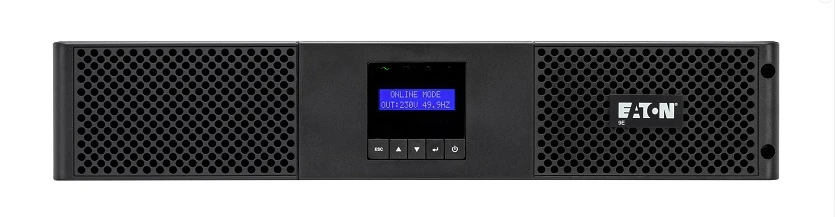

ИБП Eaton 9E (9E3000IR)

Высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях . ЭКОЛОГИЧНЫЙ режим/Зеленый режим • Режим энергосбережения, в котором диапазон регулирования входного напряжения может быть установлен/изменен с помощью ЖК-дисплея. Упрощенный мониторинг и управление • USB и последовательные порты для управления ИБП с помощью PowerChute Интеллектуальное управление батареей • Увеличивает производительность, срок службы и надежность батареи благодаря интеллектуальной точной зарядке с температурной компенсацией

Rated voltage
380/400/415 V AC. 3P4W+PE

Voltage
range 305-485 VAC (100% load), 138-305 VAC (with a reduction to 40-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal x 1, Bypass input terminal x 1

Rated voltage
380/400/415 VAC. 3P4W+PE or 220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor1

Connecting terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Battery Type
VRLA/ Lithium-ion

Rated voltage:
● RT-15K-3P/20K-3P±144 V DC(2), ±192-±264 V DC. current

Charger current
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-485, Mini Slot, REPO, Dry Input Pin x1, Dry Output Pin x3

Dimensions (W x D x H):
RT-15K-3P/20K-3P440 x 760 x 88.2 mm

Net Weight:
RT-15K-3P/20K-3P22.5 kg

Operating temperature
0-55 °C (45-55 °C nominal reduction to 75% load)

Humidity
5-95% (non-condensing)

Noise level:
RT-15K-3P/20K-3P
Altitude above sea level
0-3000 m (1%/100 m nominal reduction from 1000 to 3000 m)

Protection against penetration
IP20

Safety
CE, UKCA, UL/cUL, TISI, RCM, BIS, BSMI

EMS
IEC 62040-2

Efficiency
IEC 62040-3

Stability
RoHS, REACH, Energy Star 2.0

Интеллектуальная и эффективная защита — от начального уровня до крупных объектов. Идеальный ИБП для серверов, маршрутизаторов, коммутаторов, и других сетевых устройств. В комплект поставки входит: Компакт-диск с документацией Оборудование для монтажа в стойку Опорные направляющие для монтажа в стойку USB-кабель

Physical parameters
- Maximum height: 44MM, 4.4 cm
-Maximum width: 527MM, 52.7 cm
- Maximum depth: 89MM, 8.9 cm
- Net weight: 2.72 kg
- Gross weight: 3.35 kg
- Dimensions of the TRANSPORT package: 70x695x185MM
- Devices on a pallet: 80.0

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main input voltage
230 V

Type of product or component
Uninterruptible power Supply (UPS)

Other input voltage
220 V
240 V

Main output voltage
230 V

Other output voltage
220 V
240 V

Rated power [W]
5000 V

Rated power [VA]
5000 V·A

source connection type
2 IEC 60320 C13
1 IEC 60320 C19

Type of output connector
All-in-one three-wire (phase + neutral + ground) 1

Number of rack units
4U

Battery Type
Lead-acid battery pack

Battery voltage
+/- 96 V

The possibility of increasing the battery life
1

Pre-installed batteries
2

Number of empty battery compartments
0

Battery recharge time
Year 4

Number of replaceable battery packs
1

Colour
Black (RAL 9005)

Height
17.5 cm

Width
44 cm

Depth
62 cm

Net weight
55.9 kg

Preferred installation location
Lower

Mounting method
On the rack with the kit

Two-post installation
0

USB-compatible
Yes

Mounting position
Horizontal

Maximum incoming current
30 A

Permissible switching current
40 A

Input voltage limits
160...285 At full load
100...285 V half load

Number of connectors for inputs
1 All-in-one three-wire (phase + neutral + ground)

The network frequency
is 40...70 Hz auto-sensing

Bypass type
Internal bypass (with auto or manual on)

The amplitude coefficient
3:1

Harmonic distortion
Less than 2

Maximum configurable power [VA]
5000 V·A

Maximum configurable power [W]
5000 V

Wave type
The sinusoidal signal

Efficiency
93.5 %

Output frequency
50/60 Hz +/- 4 Hz synchronized with the power grid

Additional information
Configuration is possible for operation with an output voltage of 220: 230 or 240 V

Height
8,92 cm

Width
4,1 cm

Depth
63,4 cm

Net weight
3.1 g

Installation execution
Rack-mounted

Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Height
96 mm

Package 1 Width
690 mm

Package 1 Length
96 mm

Package 1 Weight
4,3 kg

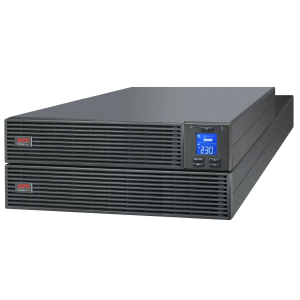

Schneider Electric Easy UPS SRVS3KRILRK высококачественный онлайн-ИБП с двойным преобразованием, предназначенный для обеспечения необходимой защиты электропитания даже в самых нестабильных условиях электропитания. В комплект поставки входит: 1 IEC 60320 C19 to Schuko силовой кабель 1 IEC 60320 C13 to C14 силовой кабель 1 USB кабель 1 Кабель для конфигурирования через порт RS-232 2 Кронштейны для монтажа в аппаратурные стойки 2 Направляющие для монтажа в аппаратурные стойки 1 external battery pack 1 батарейный кабель

Maximum adjustable power (W)
1.6 kW/2.0 kVA

Output voltage Note
Configurable for rated output voltage 220: 230 or 240.

Efficiency at full load
88,0 %

Output voltage distortion
3 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Peak load factor
3 : 1

Topology
Double Conversion Online

Signal type
The sine wave

Bypass
Internal bypass (automatic and manual)

Input frequency
40-70 Hz, automatic detection

Input voltage range for basic operations
110-285 Half load, 160-280 Full load In

Number of power cords
1

Efficiency at full load
88,0 %

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
4 hours)

Rated battery voltage
48 V

Spare battery
APCRBCV204

Expected battery life (years)
3-5

Battery power (W)
70 W


DB-9 RS-232 Interface Port(s), USB

The Control Panel
Multifunctional LCD status and control console

Operating Temperature
0-40 °C

Operating relative humidity
0-95 (non-condensing) %

Working height
0 - 3000 meters

Storage temperature
-20–50 °C

Relative humidity during storage
0-95 (non-condensing) %

Storage height
0 - 15000 meters

A noise is heard at a distance of 1 meter from the surface of the device.
50.0 dBA

Online heat dissipation
745.0 BTU/h

Protection class
IP20
