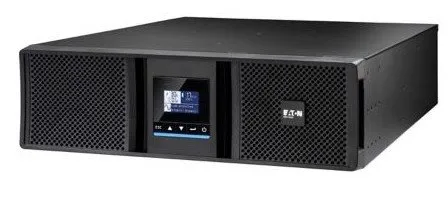

ИБП Eaton 9SX6KIRT3UG2 (9SX6KIRT3UG2)

Main characteristics:
- Main input voltage 230 V
- Other Input voltage 220 V; 240 B
- Main output voltage 230 V
- Other Output voltage 220 V; 240 V
- Rated power [W] 4500 W
- Rated power 5000 VA

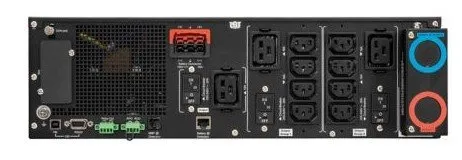

- Output connection type 6 IEC 60320 C13; 2 IEC Jumpers; 4 IEC 60320 C19
- Unit quantity 3U
- Battery type Lead-acid battery

Are common:
- Product subcategory web High density
- Number of slots unoccupied by power modules - 0
- Number of slots occupied by power modules - 0
- Spare - No

Physical parameters:
- Black color
- Height 13 cm
- Width 43.2 cm
- Depth 71.94 cm
- Net weight 54.43 kg
- Installation location - Front
- Fastening type - No preference
- Installation style - Rack-mounted
- Two-post mount - 0
- USB compatible - Yes
- Mounting position - Horizontal

Entrance:
- Network frequency - 40–70 Hz auto detection
- Number of input connections - 1 All-in-one three-wire (1P + N + E)
- Input voltage limits - 100...275 V adjustable (for half load)

Exit:
- Maximum set power (W) - 4500 W
- Harmonic distortion - Less than 2%
- Output frequency - 50/60 Hz +/- 3 Hz synchronized with the mains
- Crest factor - 3:1
- UPS type - Double conversion topology
- Voltage waveform type - Sine wave
- Bypass type - Internal bypass (automatic and manual)
- Maximum set power (VA) - 5000 VA

Correspondence:
- Certificates - CE; EAC; IRAM; RCM; VDE
- Marking - CE mark
- Standards - EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Environment parameters:
- Operating ambient temperature - 0…40 °C
- Relative humidity - 0…95% without condensation
- Altitude above sea level - 0...10000 ft
- Ambient temperature during storage -15…45 °C
- Relative storage humidity - 0...95% without condensation
- Storage height 0.00…15240.00 m
- Acoustic level 55 dBA
- Heat transfer - 931 ‰
- Degree of protection IP - IP20

Batteries and battery life:
- Pre-installed batteries - 0
- Typical recharge time 1.5 h
- Number of RBC™ cartridges 1
- Battery voltage 192 V
- Charger power (W) - 560 W nominal
- Battery capacity in volt-ampere hours - 845 VAh operating time
- Battery life 3…5 year(s)
- Spare battery APCRBC140; SR13KXIET; SR16KXIET
- Battery options - SRT192RMBP 1,2535 Wh
SRT192RMBP 2 4225 VAh
SRT192RMBP 3 5915 VAh
SRT192RMBP 4 7605 VAh
SRT192RMBP 5 9295 VAh
SRT192RMBP 6 10985 VAh
SRT192RMBP 8 14365 VAh
SRT192RMBP 10 17745 VAh
- Possibility of increasing autonomy time - 1

Communication and admin tools:
- Free slots - 1
- Pre-installed SmartSlot&tra cards - Network management card 3 with environmental monitoring
- Alarm - Audible and visible alarms : prioritized by severity
- Emergency Power Off (EPO) - Yes

Surge and filtering protection:
- Rating according to the level of absorbed energy of the float - 480 J

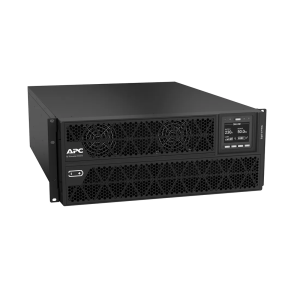

ИБП APC Smart-UPS предназначен для ИТ-специалистов и сетевых администраторов, чтобы обеспечить бесперебойную работу и непрерывность бизнеса. APC Smart-UPS SRT5KRMXLI обеспечивает чистое синусоидальное питание и увеличенное время автономной работы для поддержки критически важной электроники во время перебоев в подаче электроэнергии. В комплект поставки входит: Компакт-диск с документацией Руководство по установке Крепеж для установки в стойку Кронштейны для монтажа в аппаратурные стойки Направляющие для монтажа в аппаратурные стойки Датчик температуры Гарантийная карта Плата управления Web/SNMP

Rated voltage
380/400/415 VAC. 3P4W+PE

Voltage
range 305-485 VAC (100% load), 138-305 VAC (with a reduction to 40-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal x 1, Bypass input terminal x 1

Rated voltage
380/400/415 VAC. 3P4W+PE or 220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor1

Connecting terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Battery Type
VRLA/ Lithium-ion

Rated voltage:
● RT-15K-3P/20K-3P±144 V DC(2), ±192-±264 V DC. current

Charger current
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-485, Mini Slot, REPO, Dry Input Pin x1, Dry Output Pin x3

Dimensions (W x D x H):
RT-15K-3P/20K-3P440 x 760 x 88.2 mm

Net Weight:
RT-15K-3P/20K-3P22.5 kg

Operating temperature
0-55 °C (45-55 °C reduction of nominal value to 75% of load)

Humidity
5-95% (non-condensing)

Noise level:
RT-15K-3P/20K-3P
Altitude above sea level
0-3000 m (1%/100 m nominal reduction from 1000 to 3000 m)

Protection against penetration
IP20

Safety
CE, UKCA, UL/cUL, TISI, RCM, BIS, BSMI

EMS
IEC 62040-2

Efficiency
IEC 62040-3

Stability
RoHS, REACH, Energy Star 2.0

ИБП APC Smart-UPS предназначен для ИТ-специалистов и сетевых администраторов, чтобы обеспечить бесперебойную работу и непрерывность бизнеса. APC Smart-UPS SRTG6KXLI обеспечивает чистое синусоидальное питание и увеличенное время автономной работы для поддержки критически важной электроники во время перебоев в подаче электроэнергии. ИБП имеет встроенную карту сетевого управления для мониторинга и управления. ИБП имеет функцию PowerChute Network Shutdown, которая обеспечивает плавное завершение работы серверов и кластеров HCI. ИБП можно подключать к EcoStruxure IT или сторонним платформам централизованного управления. В комплект поставки входит: 1 х USB-кабель 1 х кронштейны для монтажа в стойку 1 х стабилизирующие/настенные ножки 1 х руководство по установке 1 шнур питания C13-C14

Overview Presentation Ultra high density online power protection with scalable runtime supported by Lithium-Ion batteries. Delivery time Usually in stock Key features Runtime with 3000 W load Min.-max.: 300-3000 W 4 min 37 sec Max. Usable capacity 100% Main Input Voltage 230 V AC 1 phase Product type Uninterruptible power supply (UPS) Other Input Voltage 230 V Main Output Voltage 230 V AC 1 phase Other Output Voltage 230 V Nominal power [W] 3000 W Nominal power 3000 VA Input Connection Type BS1363A British IEC 60320 C20 Schuko CEE 7 / EU1-16P Output connection type 3 IEC 320 C13 2 IEC 320 C19 Quantity Unit 1U Cable length 2.4 m Number of cables 1 Battery type Li-Ion Included hardware RJ45 cable USB cable Safety manual Rack-mounting brackets Stabilization feet Screws Smart-UPS Ultra series Additional features Battery type Li-Ion (Lithium-ion) internal included UPS connectivity Serial port USB port Embedded network management card 3 mounting methods Rack/tower convertible with included kit Batteries and battery life Runtime View Runtime Graph Efficiency View Efficiency Graph Typical recharge time 1.5 h Number of RBC™ cartridges 1 Battery voltage 50 V Charger power (W) 448 W Battery life 8...10 g. Battery life 8...10 g. Spare battery APCRBC173-LI Extended runtime capability 1 General product web sub-family High density spare No Physical parameters Color Silver gray Height 43 mm Width 432 mm Depth 560 mm Net weight 15.9 kg Fastening type No preference Mounting style Rack-mounted with mounting kit Tower-mounted with kit Two-post mount 1 USB-compatible Yes Mounting position Horizontal Vertical Input Network frequency 50/60 Hz autosensing Input voltage limits 160...275 V adjustable (for half load) Input Power Factor at Full Load 1 Output Maximum Configurable Power (W) 3000 W Output Frequency 50/60 Hz +/- 3 Hz synchronized with the utility power Crest Factor 3:1 UPS Type On-Line Waveform Type Sine wave Output voltage THD
