IP-телефон Fanvil V60G

Protocols/Standards SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*, IPV6 Network interfaces Two switched 10/100/1000 Mbps Gigabit Ethernet ports with auto-sensing and PoE support Screen TFT color LCD screen 2.8 inches (320x240) Function buttons 6 line buttons and up to 4 SIP accounts, 4 XML programmable context-sensitive on-screen buttons, 5 navigation/menu buttons, 11 special function buttons: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE SOUND, SEND/REDIAL, SPEAKERPHONE, VOL+/VOLUME+, VOL-/VOLUMEAdditional RJ9 headset port (EHS support when using Plantronics headsets) Speech Codecs and Features Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC Telephony Features Hold, Transfer, Forward, 3-way conference, Call Park, Call Pickup, Twinned Lines (SCA)/(BLA), Downloadable Phonebook (XML, LDAP, up to 1000 entries), call waiting, call log (up to 2000 entries), XML screen personalization, auto-dial on hook, auto answer, push to call, flexible dial plan, shift work, personalized ringtones and melody on hold, failover to the backup server in case of failure HD Audio Yes, high-resolution audio in the earpiece and speakerphone with support for wideband audio Base Yes, 2 positions available, wall-mountable (Wall-mount kit sold separately) QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS Security User and administrator level password, MD5 and MD5-sess-based authentication, configuration file with 256-bit AES encryption, SRTP*, TLS, 802.1x media access control, secure Loading.. Supported languages English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and other languages Update/Configuration Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, bulk configuration using GDMS/TR-069 or XML configuration file with AES encryption. Power and energy efficiency Universal power adapter: Input: 100-240V; Output: +5V, 0.6A; Powered by Ethernet (802.3af) IEEE 802.3az Ethernet energy efficiency Max. Power consumption 3W (power adapter) or 3.8W (PoE) Temperature and Humidity Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% non-condensing Package contents GRP2613 phone, handset with cord, stand, 5V network adapter, network cable, quick installation guide, GPL license Dimensions and weight Dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g Compliance FCC: Part 15 Class B; FCC Part 68 HAC CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1 RCM: AS/NZS CISPR32;AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 62368.1; AS/CA S004 IC: ICES-003; CS-03

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (record A, SRV,
NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP, IPV6

Network interfaces
Two switchable 10/100/1000 Mbit/s Gigabit Ethernet ports with auto
-negotiation and integrated PoE module

Graphic display
TFT Color LCD Display, 4.3" (480x272)

Wi-Fi
Yes, built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4 and 5 GHz)

Bluetooth
Yes, the built-in module

Main buttons
12 line buttons with support for up to 16 SIP accounts, 24 universal
expansion keys with pockets for paper inserts, 5 programmable (XML)
contextual touch keys, 5 menu/navigation keys, 8 special keys:
MESSAGE (with LED indicator), TRANSLATION, HEADSET, HOLD,
SOUND OFF, SEND/REDIAL, SPEAKER, THUNDER.+, THUNDER.–

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB connector for
Grandstream GUV Series headsets and other USB headsets

Voice codecs and features
Supports G7.29A/B, G.711 mic/a-law, G.726, G.722 (broadband), G723, iLBC,
OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony functions
Retention, transfer, forwarding, five-participant conference,
call parking, call interception, single internal number (shared call
appearance, SCA), bridged line appearance (BLA),
downloadable phone book (XML, LDAP, up to 2000 elements), call waiting
, call log (up to 2000 recordings), XML screen setup, auto-dial when the handset
is picked up, answering machine, call from the website (click-to-dial), flexible configuration of subscriber
groups, support for shared workplace usage, personalization of ringtones
and ringtones on hold, switching to a backup server in case of failure

HD Audio
Yes (HD headset and speaker), with broadband audio support. Two microphones
There is no expansion module

Rack
Yes, with two tilt angles and wall mount (*Wall mount
is available separately)

Quality of service
Layer 2 (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, authentication on the database
MD5 and MD5-session, configuration file with 256-bit AES encryption, SRTP, TLS,
802.1x-based media access control, secure download

Languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, mass configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Nutrition and energy efficiency
The package includes a universal power adapter:
Input: 100-240 V; Output: +12V, 1 A;
Integrated Power-over-Ethernet Module (802.3af)
IEEE 802.3az Ethernet Energy Efficiency
Maximum power consumption: 3.2W (power adapter) or 4.3W (PoE)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Physical characteristics
Dimensions: 220 × 210 × 82 mm
Device weight: 880 g; package weight: 1260 g

Compliance of GRP2636 with regulatory requirements
FCC: FCC, Part 15, Class B; FCC, Part 15, Subsection C, 15.247; FCC, Part 15,
Subsection E, 15.407; FCC, Part 68 (HAC).
CE: ETSI EN 301 893; ETSI EN 301 489-1/-17; ETSI EN 300 328; EN IEC 62311; EN 55032;
EN 55035; EN 62368-1.
IC: RSS-247, issue 2; RSS-Gen, issue 5; ICES-003, issue 7; CS-03, Part V.
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004.
UKCA: ETSI EN 301 893; ETSI EN 301 489-1/-17; ETSI EN 300 328; BS EN IEC 62311;
BS EN 55032; BS EN 55035; BS EN 62368-1

IP‑телефон Fanvil X303‑2 Wire

Fanvil X303‑2 Wire — профессиональный VoIP‑телефон для корпоративной связи, разработанный для работы по двухжильной линии (2‑Wire) совместно с 2‑Wire PoE‑коммутаторами/шлюзами, такими как PN8 или PN24. Устройство сочетает расширенный функционал IP‑телефонии с возможностью использования существующей проводки, что снижает затраты на монтаж и модернизацию сетевой инфраструктуры.

Основные особенности

• Поддержка подключения через двухжильную линию с PoE‑питанием и передачей данных (2‑Wire)
• Управление вызовами по стандарту SIP для интеграции с IP‑АТС и VoIP‑сервисами
• Цветной IPS‑дисплей для удобного отображения информации
• Поддержка HD‑аудио для чёткой голосовой связи
• Поддержка до 6 или более SIP‑линий (в зависимости от системы)
• Клавиатура с программируемыми DSS‑клавишами для быстрого доступа к функциям и BLF
• Поддержка EHS‑гарнитур через адаптер (Plantronics/Jabra и др.)
• Настольная или настенная установка
• Совместимость с популярными VoIP‑системами и платформами
• Удобный интерфейс и навигация по меню

Технические характеристики

• Интерфейс: двухжильная линия (2‑Wire) для питания и передачи данных
• Протоколы VoIP: SIP, RTP/RTCP, SRTP, TLS и др.
• Дисплей: цветной IPS‑экран
• SIP‑линий: поддержка нескольких (обычно до 6+) — зависит от конфигурации системы
• Аудио: HD‑Voice, поддержка широкополосных кодеков
• Поддержка EHS‑гарнитур через адаптер
• Питание: через 2‑Wire PoE‑коммутатор (PN8, PN24)
• Установка: настольная или настенный монтаж

Применение

Fanvil X303‑2 Wire используется в корпоративной IP‑телефонии там, где требуется адаптация под существующую двухжильную инфраструктуру. Совместно с 2‑Wire PoE‑коммутатором телефон предоставляет удобные функции управления вызовами, поддерживает HD‑звук и интегрируется с VoIP‑АТС, при этом снижает затраты на прокладку новых сетевых кабелей.

The GHP Series of hospitality phones includes the easy-to-use GHP620/GHP620W and GHP621/GHP621W IP phones for any hotel room, which can be programmed and configured to meet the needs of hotels and their guests. The GHP620W and GHP621W models feature built-in dual-band Wi-Fi to support wireless network deployments. This series features a high-definition speakerphone, two SIP accounts/lines, six programmable keys, ten speed-dial keys, three-way voice conferencing, support for the full-band OPUS voice codec, and an advanced jitter-tolerance algorithm that tolerates up to 30% packet loss without affecting voice quality. The GHP Series is supported by the Grandstream Device Management System (GDMS), which provides a centralized interface for configuring, provisioning, managing, and monitoring Grandstream endpoint deployments. The GHP series IP phones can be desktop or wall-mounted and can be powered via PoE (GHP620/GHP621), a power adapter (GHP620W/GHP621W), or a USB Type-C charger. Their sleek and compact design makes the GHP620/GHP620W and GHP621/GHP621W ideal for not only hotels but also apartments, dormitories, hospitals, and retail spaces.

Grandstream DP755 — это мощная базовая станция DECT VoIP, которая сопрягается с 10 DECT-трубками серии Grandstream DP и обеспечивает мобильность пользователей. В помещении радиус ее действия достигает 50 м, а на улице — 400 м для телефонов DP730 и 350 м — для DP722/DP720. Так пользователи могут свободно перемещаться дома или на работе, оставаясь на связи. К этой базовой станции можно подключить до 10 трубок и 20 SIP-аккаунтов. Она оснащена модулем PoE, отличается четким звуком и поддерживает аудиоконференции до трех участников. Все трубки можно подключить к одному SIP‑аккаунту и получать все вызовы независимо от местоположения. DP755 поддерживает несколько способов автоматической настройки и шифрование TLS/SRTP/HTTPS. При сопряжении с трубками Grandstream DP720, DP722 или DP730 эта базовая станция превращается в мощную беспроводную DECT‑систему, которая подойдет для дома и офиса.

Особенности Grandstream DP755

• Аутентификация и шифрование DECT для защиты звонков и аккаунтов
• Аудиоконференции (до трех участников) для удобной организации совместных звонков
• До 20 SIP-аккаунтов; до 20 линий на трубку
• Режим рации
• Качественный и чистый звук; полнодуплексный спикерфон
• Автоматическая настройка с помощью TR-069 и XML‑файлов конфигурации
• Поддержка расширенных функций: перевода, переадресации и ожидания вызова, функции «Не беспокоить», индикатора сообщений, подсказок на нескольких языках, гибкой настройки абонентских групп и многого другого.
• Настройка Zero Config при использовании с IP‑АТС Grandstream серии UCM

Protocols/standards
SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, SSH, TFTP, NTP,
STUN, LLDP, TR-069, 802.1x

Network interfaces
One 10/100 Mbps Ethernet connector with auto-negotiation function and built-in module
PoE Class 2 (GHP610/GHP611)

Wi-Fi
Built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4 and 5 GHz) (models
GHP610W/GHP611W)

Main buttons
23 buttons, including 3 programmable keys, 12 standard buttons with numbers (0-9:
web-based speed dial keys, *, #), 5 special keys
(Flash, Redial, Speakerphone, Answering machine, Hold), 3
volume control keys: increase, decrease, mute (with red LED indicator)

HD audio
One HD handset with broadband audio
Audio conferencing 2 SIP accounts and 2 lines, conferences for up to 3 participants

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726, G.722 (broadband), G.723, iLBC and
full-band OPUS. In-band and out-of-band DTMF (in RFC2833 audio signal,
SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Dial, reply, translate, conference, redial, reset, speakerphone,
voicemail (with server), hold/de-hold, mute and turn on the microphone,
flexible configuration of subscriber groups, switching to a backup server in
case of failure during speed dial

Additional features
Support for multicast paging and E911 service
Support for advanced jitter resistance algorithm
Door opening support via GDS

Wall mounting
One wall mount

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Secure boot, random default password, unique
security certificate for each device, passwords for administrators, configuration file
with 256-bit AES encryption, SRTP, TLS, access control to the transmission medium
based on 802.1x

Multiple languages
English and Chinese

Update/Setup
Firmware update via FTP/TFTP/HTTP/HTTPS, quick setup in 15 seconds,
mass configuration using GDMS/TR-069 or an XML configuration
file with AES encryption

Nutrition and energy efficiency
Universal Power Adapter (GHP610W/GHP611W)
Input: 100-240 VAC, 50-60 Hz
Output: 12V/0.5A (6W)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to +60 °C
Humidity: 10 to 90% (non-condensing)

Package Contents
GHP61X phone, Handset with cord, Mount, Universal power adapter
(GHP610W and GHP611W), quick installation guide

Colour
White (GHP610 and GHP610W), Black (GHP611 and GHP611W)

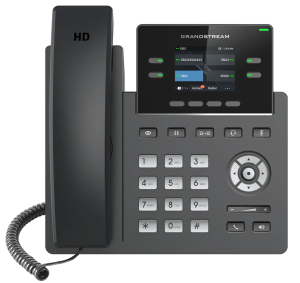

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR- 069, SNMP, 802.1x,
TLS, SRTP*, IPv6

Network interfaces
- Two switched 10/100 Mbps Ethernet ports with auto-detection, built
-in PoE support (only in the GRP2602P model)
- Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2602G model)

Wi-Fi
GRP2602W, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
132 x 48 dots (2.41 inches’) backlit graphic LCD display

Function buttons
2 line buttons with two-color LEDs and support for 4 SIP accounts, 4 XML
context-sensitive on-screen buttons, 5 buttons (navigation,
menu). 8 special function buttons for: MESSAGE (with LED
indicator), TRANSLATION, HEADSET, MICROPHONE MUTE, SEND /
REDIAL, SPEAKERPHONE, VOLUME +, VOLUME

Additional ports
RJ9 headset jack (EHS support for Plantronics, Jabra and Sennheiser headsets)

Voice codecs and capabilities
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- and
out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel call indication (BLA),
downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting
, call log (up to 800 entries), auto-dial when you pick up the handset, auto-answer, clickto-dial, flexible number plan, hot table system, personalized
ringtones and music on hold, backup server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support

Footing
Yes, 1 position (45°) available, wall mounting option (*
wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Automatic configuration
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration using
GDMS (Grandstream Device Management System), TR-069 or XML
configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (only
for GRP2602P/GRP2602G model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone model GRP2602, tube with wire, base, universal power
supply (only for model GRP2602/GRP2602W/GRP2602G), network cable, quick
guide

Sizes
Dimensions: 208mm (L) x 180mm (W) x 63.4mm (H) (with tube)
Device weight:670g; Package weight: 880g (GRP2602/GRP2602W/GRP2602G), 830g
(GRP2602P)

Compliance with standards
GRP2602/GRP2602P/GRP2602G
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32;
AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

Compliance with standards
GRP2602W
FCC: Part 15 Subpart B, Class B; FCC Part 15 Subpart E,15.407; FCC Part 68;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; ETSI EN 301 893;
RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: RSS-Gen; ICES-003; CS-03.

IP‑телефон Fanvil V60W

Fanvil V60W — настольный IP‑телефон с поддержкой Wi‑Fi 2.4/5 ГГц, предназначенный для корпоративной IP‑телефонии. Устройство обеспечивает стабильную голосовую связь, поддержку 4 SIP‑линий и высокое качество звука благодаря технологии HD Voice.

Телефон оснащён цветным 2.4" дисплеем, поддерживает локальную и удалённую телефонную книгу, а также аудиоконференции. Благодаря Wi‑Fi пользователи могут подключать устройство к беспроводной корпоративной сети без кабелей, при этом телефон поддерживает PoE для настольного подключения через Ethernet, если необходимо.

Основные особенности

• Цветной дисплей 2.4" (320 × 240)
• Поддержка 4 SIP‑линий
• HD Voice и кодеки G.722, Opus, G.711, G.729
• 6‑сторонняя аудиоконференция
• Wi‑Fi 802.11 a/b/g/n/ac (2.4 / 5 ГГц)
• Поддержка питания PoE (802.3af) через Ethernet
• 6 программируемых DSS‑клавиш
• Разъём RJ9 для гарнитуры
• Локальная телефонная книга до 1000 контактов
• Поддержка IPv4 / IPv6
• Настольная установка или настенный монтаж

Технические характеристики

• Дисплей: 2.4" цветной LCD, 320 × 240
• SIP‑линии: до 4
• Аудио: HD Voice, кодеки G.722, Opus, G.711, G.729
• Конференция: до 6 участников
• Сетевые интерфейсы: Wi‑Fi 2.4/5 ГГц, Ethernet 10/100 Мбит/с
• DSS‑клавиши: 6 программируемых
• Питание: PoE (802.3af) или адаптер 5V/1A
• Разъём гарнитуры: RJ9
• Телефонная книга: до 1000 записей
• Поддержка IPv4 / IPv6
• Монтаж: настольная установка или настенное крепление

Применение

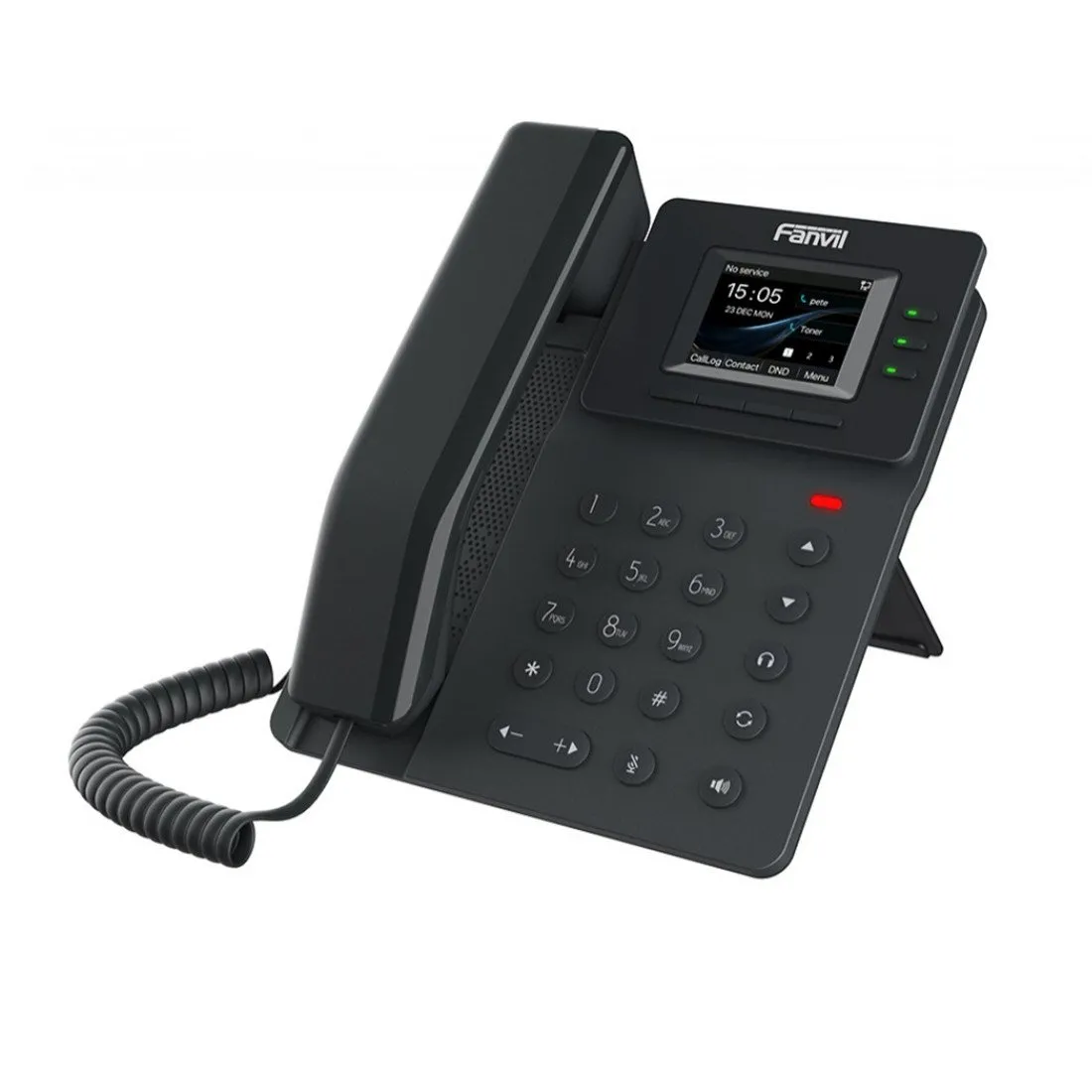

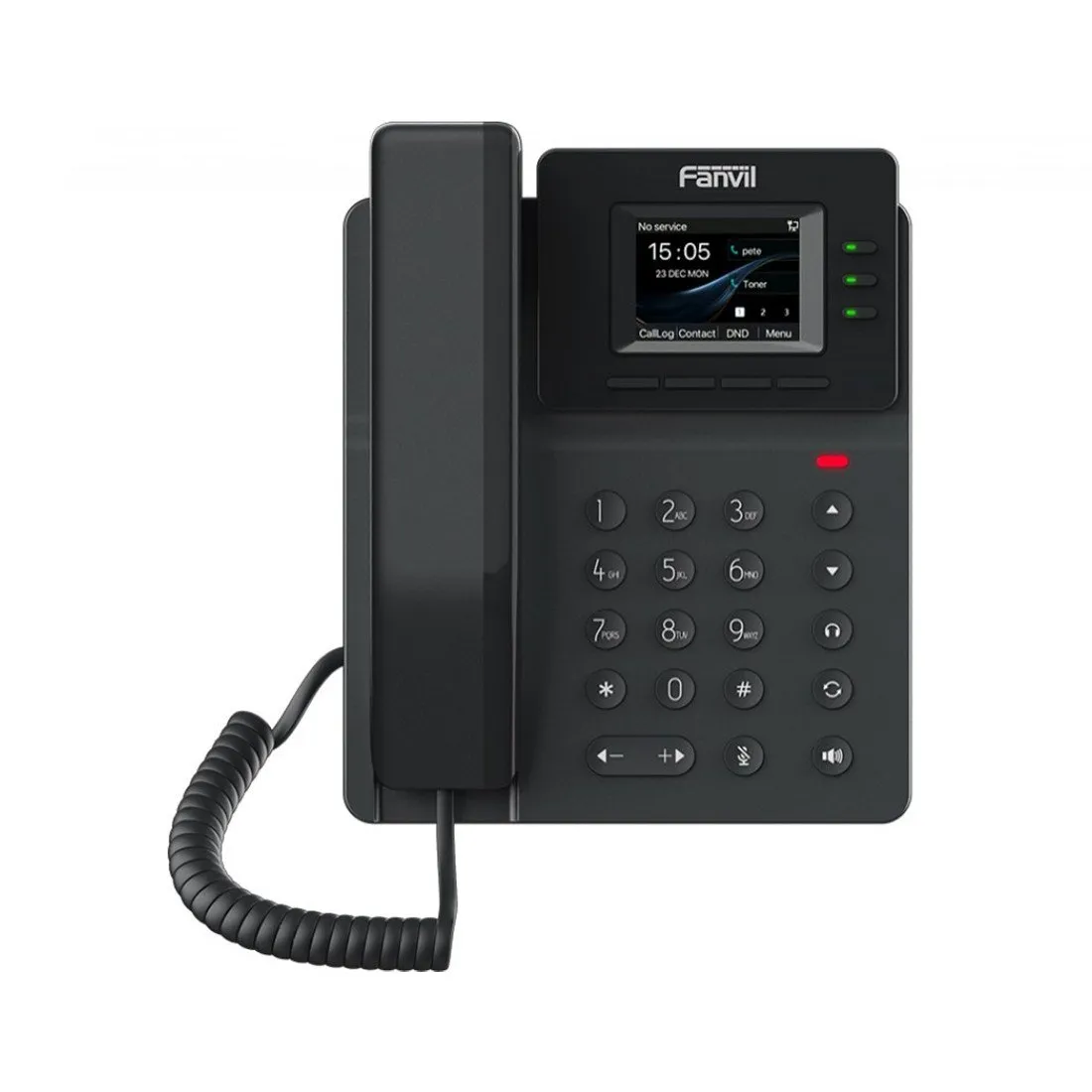

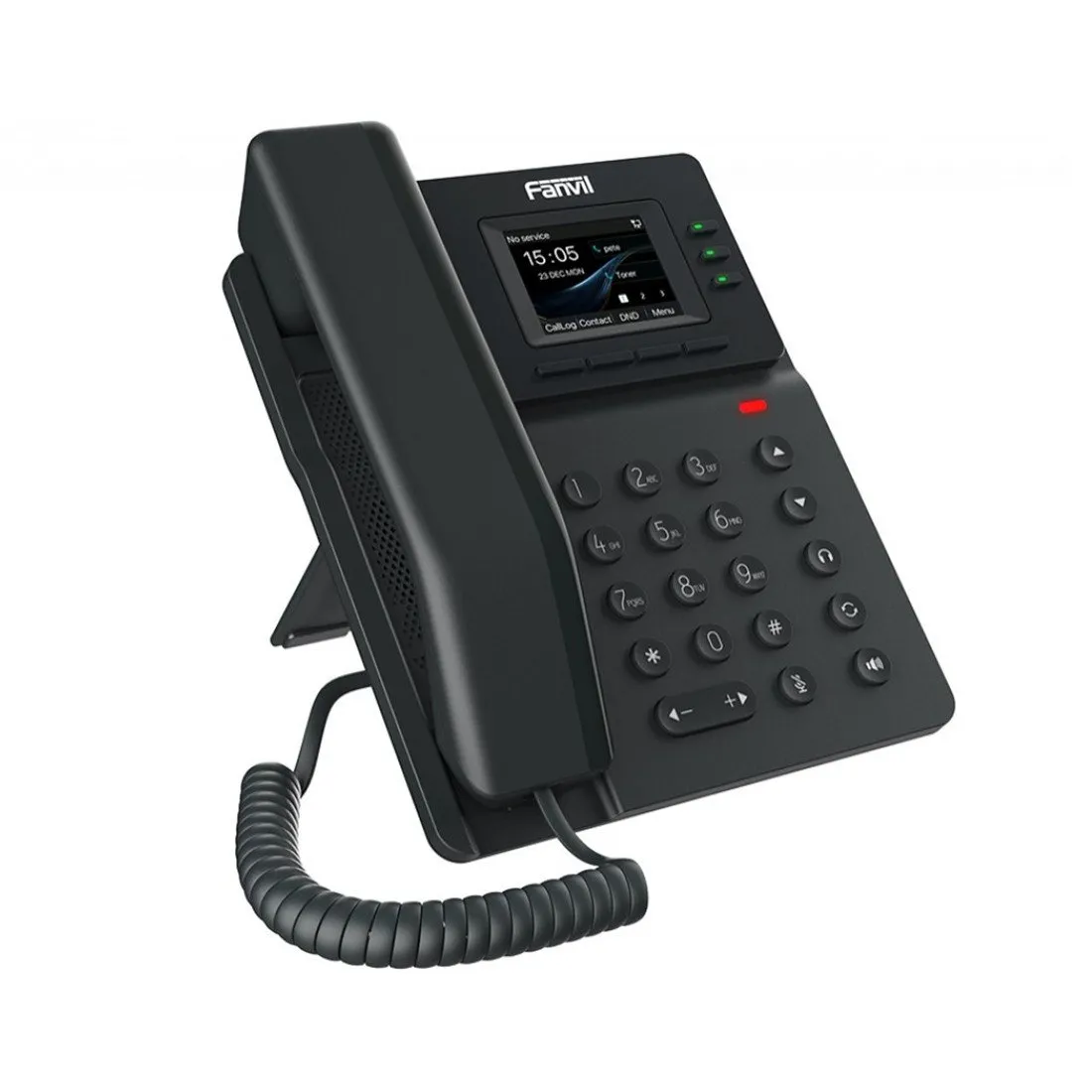

IP‑телефон Fanvil V60W используется для мобильной корпоративной связи в офисах, колл‑центрах, гостиницах и предприятиях малого и среднего бизнеса. Благодаря Wi‑Fi устройство подходит для сетей с ограничением кабелей, сохраняя высокое качество голосовой связи и удобство управления.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*,
IPV6

Network interfaces
Two 10/100 Mbps network ports with auto-detection (GRP2612)
Two 10/100 Mbps network ports with auto-detection with PoE support (GRP2612P/
GRP2612W)
Two 10/100/1000 Mbps network ports with auto-detection with PoE support
(GRP2612G)

Wi-Fi
GRP2612W, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
2.4 inch TFT color LCD screen (320x240)

Function buttons
4 line buttons and up to 2 SIP accounts, 4 XML programmable context-
sensitive on-screen buttons, 5 navigation/menu buttons, 9 special function
buttons: MESSAGE/MESSAGE (with LED indicator), TRANSFER/TRANSLATION, HOLD/
HOLD, HEADSET/HEADSET, MUTE/OFF SOUND, SEND/REDIAL / SEND/
REDIAL, SPEAKERPHONE/SPEAKERPHONE, VOL+/VOLUME+, VOL-/
VOLUME

Optional
RJ9 port headset jack (EHS support when using headsets
Plantronics)

Speech Codecs and Features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
Hold, transfer, forwarding, 3-way conference, call parking
, call interception, paired lines (SCA)/(BLA), downloadable phonebook (XML,
LDAP, up to 1000 positions), call waiting, Call log (up to 1000 entries), XML
screen personalization, auto-dialing when picking up the handset, auto-reply, push call,
flexible number plan, shift work of users, personalized
ringtones and melody on hold, switching to a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Footing
Yes, 2 positions are available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM)GRP2612W, and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot.

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal Power adapter:
Input: 100-240V; Output: +5V, 0.6A;
Powered by Ethernet (802.3af)
IEEE 802.3az Ethernet Energy efficiency
Max. power consumption 3W (power adapter, GRP2612/GRP2612W/GRP2612G)
or 3.8W (PoE, GRP2612P/GRP2612W/GRP2612G)

Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
GRP2612 phone, handset with wire, stand, 5V power adapter (only
with GRP2612/GRP2612G), network cable, quick installation guide, GPL
license

Dimensions and weight
dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g
Model GRP2612/GRP2612P/
GRP2612G

Accordance
FCC: Part 15 Class B; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004.
IC: ICES-003; CS-03, Part V.
Model GRP2612W

Accordance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1;
EN 301 489-17; EN 300 328; EN 301 893; EN 62311.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.
IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.
