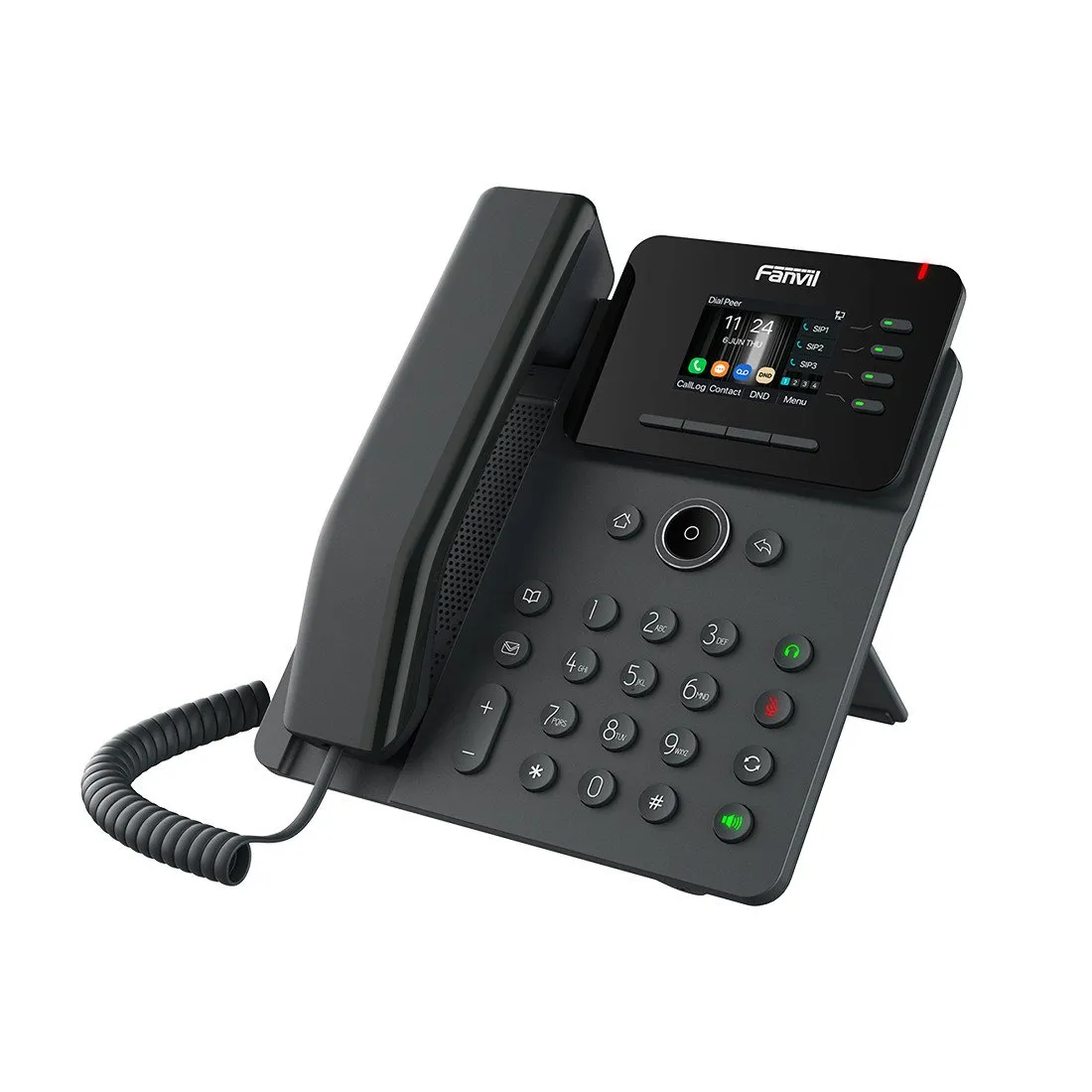

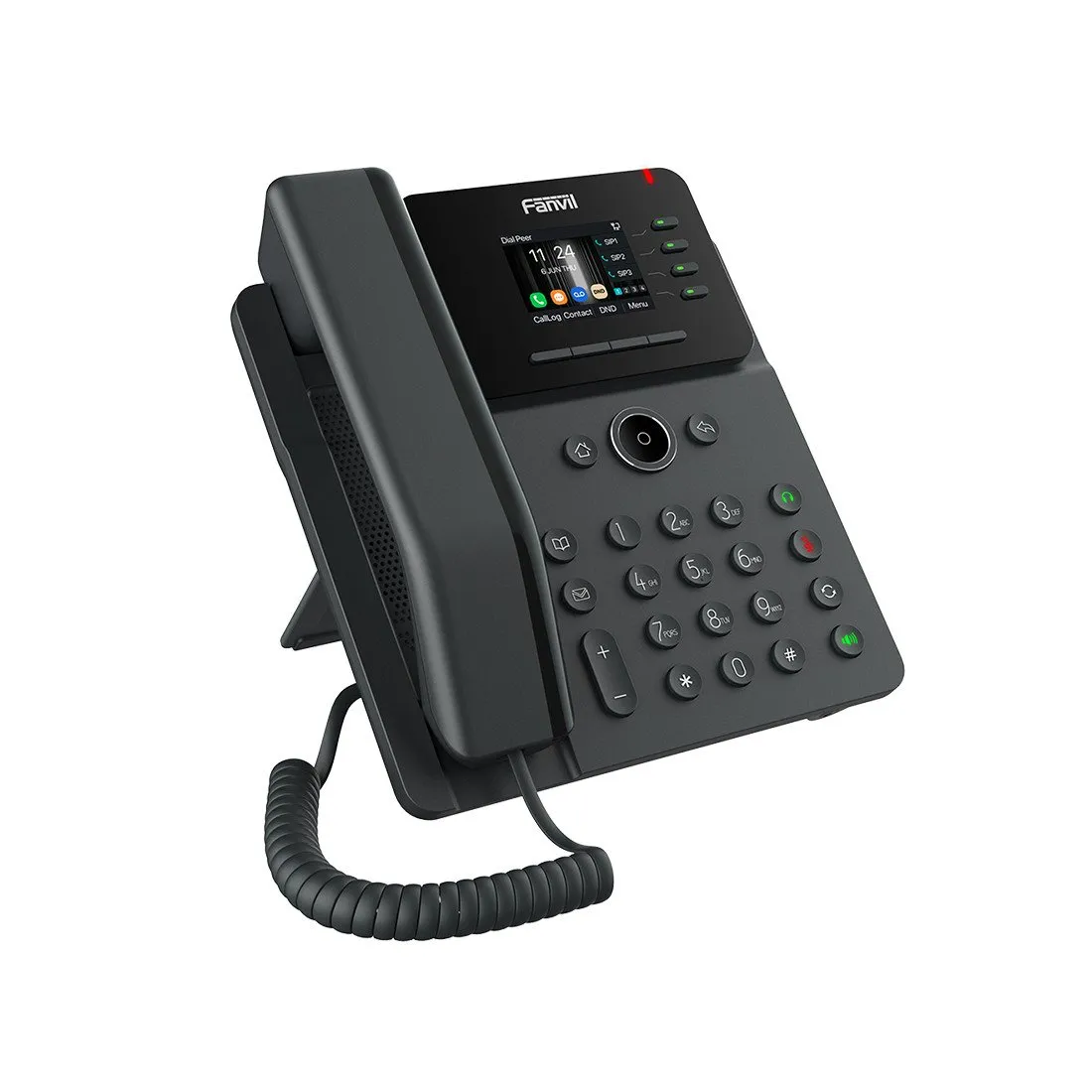

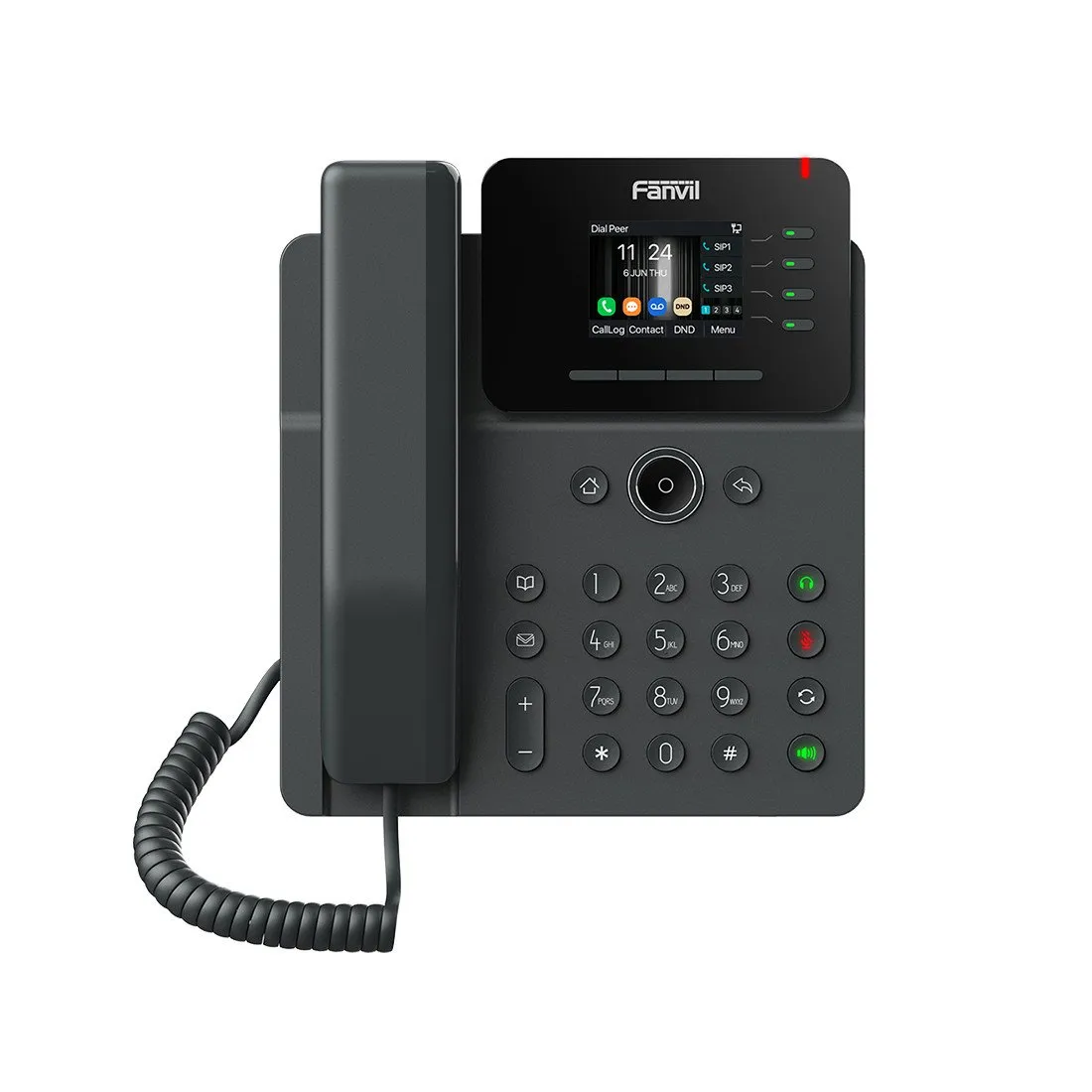

IP-телефон Fanvil V61G

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)

Temperature and Humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% - 90%
Non - condensing

Contents of the delivery set
Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
"Quick Start", brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6 (expected), OpenVPN (expected)

Network interface
Gigabit Ethernet port with auto-detection and built-in PoE+ (IEEE
802.3at Class 4)

Graphic display
4.3” IPS LCD display with 800x480 resolution

Microphone
3 cardioid microphones; capture distance 12 ft., 360° coverage

Speaker
Frequency: 220-14,000 Hz
Volume Up to 86 dB at 0.5 meters

Bluetooth
Yes, built-in. Bluetooth 4.0

Wi-Fi
Yes, built-in. 802.11 b/g/n

Additional ports
3.5mm audio port, USB Micro-B, RJ48 flex port

Speech codecs
Support G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (expected),
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), G.729A/B,
VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
6 SIP accounts, retention, forwarding, translation, 7-way
conference, call parking, call interception, downloadable
phonebook (XML, LDAP, up to 2000 entries), call waiting, call history
(up to 2000 entries), XML screen setup, automatic call reception,
mouse-click dialing, flexible number plan, "hot" workplace,
personalized ringtones and music on hold,
server reservation and switching in case of failure

Application Examples
Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google Calendar,
import/export data from a mobile phone via Bluetooth, etc. API/SDK
is available for advanced development of user applications

HD Audio
Yes, a speaker with broadband audio support

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS.

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit configuration file protected
by AES, TLS, SRTP*, HTTPS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc.

Update/Provision of services
Firmware update via TFTP/HTTP/HTTPS or local HTTP download,
mass connection using TR-069 or AES encrypted
XML configuration file

Energy consumption and environmental efficiency
Universal power supply: Input: 100-240VAC 50-60Hz; Output: 12VDC,2A (24W)

Physical properties
Dimensions: 280mm(W) x 285mm(L) x 60mm(H) Weight:1.34kg; Package weight: 2.35kg

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: from 10% to 90% without condensation

Contents
of the delivery set
Phone GAC2500, Universal power supply, Network cable, USB cable,
RJ48 cascade cable, Quick Installation Guide

Accordance
FCC: Part 15(CFR 47) Class B, FCC Part 15C 15.247; UL 60950 (power adapter).
CE: EN 55032,EN 55035,EN 61000-3-2,EN 61000-3-3,ETSI EN 301 489-1,ETSI EN 301
489-17, ETSI EN 300 328, EN 60950-1,EN 62311, RoHS.
RCM: AS/NZS CISPR 32, AS/NZS 60950.1, AS/NZS 4268.

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069,
802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/1000Mbps network port with integrated PoE

Graphic display
Graphic LCD display 132*48 (2.95’) pixels with backlight

Function Keys
2 line keys with two-color LED, and 2 SIP account, 3
context-dependent programmable touch keys, eight programmable
BLF extension keys, 5 navigation/menu keys, 13 special
keys with MUTE, HEADSET, TRANSFER, CONFERENCE, SEND, REDIAL functions,
SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC, in
-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)VAD, CNG, AEC, PLC,
AJB, AGC

Telephony Functions
Hold, transfer, redirect (unlimited/no-response/busy),
Shared Call Appearance (SCA) / Bridged Line Appearance(BLA), Downloadable
Phonebook (XML, LDAP, up to 1000 items), Call Waiting
, Call History (up to 200 entries), Auto-call, Automatic Response, One
-click Dialing, Flexible Numbering Plan, Hot Desking, Personalized
Music ringtones, Redundancy servers and fault tolerance
Headset connector Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

HD Audio
Yes, HD tube and speaker with broadband audio support

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision
of services via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.8 kg;
Package weight: 1.2 kg

Temperature and Humidity
For operation: from 0°C to 40°C, Storage: from -10°C to 60°C, Humidity: 10％ - 90%
Non - condensing

Contents of the delivery set
Phone GXP1628, handset with cord, base, universal
power supply, power cord, Quick Start Manual, brochure, license
GPL

Accordance
FCC: Part 15 (CFR 47) Class B, CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

IP‑телефон Fanvil V60W

Fanvil V60W — настольный IP‑телефон с поддержкой Wi‑Fi 2.4/5 ГГц, предназначенный для корпоративной IP‑телефонии. Устройство обеспечивает стабильную голосовую связь, поддержку 4 SIP‑линий и высокое качество звука благодаря технологии HD Voice.

Телефон оснащён цветным 2.4" дисплеем, поддерживает локальную и удалённую телефонную книгу, а также аудиоконференции. Благодаря Wi‑Fi пользователи могут подключать устройство к беспроводной корпоративной сети без кабелей, при этом телефон поддерживает PoE для настольного подключения через Ethernet, если необходимо.

Основные особенности

• Цветной дисплей 2.4" (320 × 240)
• Поддержка 4 SIP‑линий
• HD Voice и кодеки G.722, Opus, G.711, G.729
• 6‑сторонняя аудиоконференция
• Wi‑Fi 802.11 a/b/g/n/ac (2.4 / 5 ГГц)
• Поддержка питания PoE (802.3af) через Ethernet
• 6 программируемых DSS‑клавиш
• Разъём RJ9 для гарнитуры
• Локальная телефонная книга до 1000 контактов
• Поддержка IPv4 / IPv6
• Настольная установка или настенный монтаж

Технические характеристики

• Дисплей: 2.4" цветной LCD, 320 × 240
• SIP‑линии: до 4
• Аудио: HD Voice, кодеки G.722, Opus, G.711, G.729
• Конференция: до 6 участников
• Сетевые интерфейсы: Wi‑Fi 2.4/5 ГГц, Ethernet 10/100 Мбит/с
• DSS‑клавиши: 6 программируемых
• Питание: PoE (802.3af) или адаптер 5V/1A
• Разъём гарнитуры: RJ9
• Телефонная книга: до 1000 записей
• Поддержка IPv4 / IPv6
• Монтаж: настольная установка или настенное крепление

Применение

IP‑телефон Fanvil V60W используется для мобильной корпоративной связи в офисах, колл‑центрах, гостиницах и предприятиях малого и среднего бизнеса. Благодаря Wi‑Fi устройство подходит для сетей с ограничением кабелей, сохраняя высокое качество голосовой связи и удобство управления.

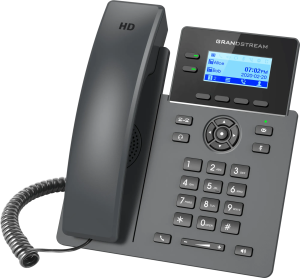

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A
record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP*, IPv6

Network interfaces
Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2603P model)

Screen
132 x 64 (2.7 inch’) dots backlit graphic LCD display

Function buttons
3 line buttons with two-color LEDs and support for 6 SIP accounts, 4
XML context-sensitive on-screen buttons, 5 buttons
(navigation, menu). 9 special function buttons for: MESSAGE
(with LED indicator), TRANSLATION, HOLD, HEADSET,
MUTE THE MICROPHONE, SEND/REDIAL, SPEAKERPHONE
COMMUNICATION, VOLUME +, VOLUME

Additional RJ9 ports headset jack (EHS support for Plantronics, Jabra and
Sennheiser)

Voice codecs and features
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS,
in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC,
AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel
call indication (BLA), downloadable phonebook (XML, LDAP, up to 2000 entries),
call waiting, call log (up to 800 entries), auto-dial when
you pick up the handset, auto-answer, click-to-dial, flexible number plan, hot
table system, personalized ringtones and music on hold, backup
server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support

Footing
Yes, 2 positions are available (39° & 45°), wall mounting option
(*Wall mounting bracket sold separately)

QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot

Supported languages English, Chinese, Korean, Japanese, German, Italian,
French, Spanish, Portuguese, Russian, Croatian, etc. languages
Update/

Automatic configuration
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration
using GDMS (Grandstream Device Management System),
TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA; PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE)
(only for GRP2603P model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone model GRP2603, tube with wire, base, universal
power supply (only for model GRP2603), network cable, quick
guide

Dimensions Dimensions: 214mm (L) x 206mm (W) x 68mm (H) (with tube)
Device weight:780g; Package weight:1090g for GRP2603P and 1140g for GRP2603

Compliance with standards
GRP2603/GRP2603P
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS
CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR),
DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP*,
IPV6

Network interfaces
Two 10/100 Mbps network ports with auto-detection (GRP2612)
Two 10/100 Mbps network ports with auto-detection with PoE support (GRP2612P/
GRP2612W)
Two 10/100/1000 Mbps network ports with auto-detection with PoE support
(GRP2612G)

Wi-Fi
GRP2612W, dual-band Wi-Fi module 802.11a/b/g/n/ac (2.4GHz and 5 GHz)

Screen
2.4 inch TFT color LCD screen (320x240)

Function buttons
4 line buttons and up to 2 SIP accounts, 4 XML programmable context-
sensitive on-screen buttons, 5 navigation/menu buttons, 9 special function
buttons: MESSAGE/MESSAGE (with LED indicator), TRANSFER/TRANSLATION, HOLD/
HOLD, HEADSET/HEADSET, MUTE/OFF SOUND, SEND/REDIAL / SEND/
REDIAL, SPEAKERPHONE/SPEAKERPHONE, VOL+/VOLUME+, VOL-/
VOLUME

Optional
RJ9 port headset jack (EHS support when using headsets
Plantronics)

Speech Codecs and Features
Support G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
Hold, transfer, forwarding, 3-way conference, call parking
, call interception, paired lines (SCA)/(BLA), downloadable phonebook (XML,
LDAP, up to 1000 positions), call waiting, Call log (up to 1000 entries), XML
screen personalization, auto-dialing when picking up the handset, auto-reply, push call,
flexible number plan, shift work of users, personalized
ringtones and melody on hold, switching to a backup server in case of failure

HD Audio
Yes, high-resolution sound in the speaker tube and speaker with
broadband sound support

Footing
Yes, 2 positions are available, wall mounting option (Wall mounting kit
sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P), 802.11e (WMM)GRP2612W, and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password, authentication based on
MD5 and MD5-sess, configuration file with 256-bit AES encryption, SRTP*, TLS,
802.1x media access control, secure boot.

Supported languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc. languages

Update/Customization
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, group configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal Power adapter:
Input: 100-240V; Output: +5V, 0.6A;
Powered by Ethernet (802.3af)
IEEE 802.3az Ethernet Energy efficiency
Max. power consumption 3W (power adapter, GRP2612/GRP2612W/GRP2612G)
or 3.8W (PoE, GRP2612P/GRP2612W/GRP2612G)

Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
GRP2612 phone, handset with wire, stand, 5V power adapter (only
with GRP2612/GRP2612G), network cable, quick installation guide, GPL
license

Dimensions and weight
dimensions: 203mm x 193mm x 52.1mm; Device weight: 554g; Package weight: 936g
Model GRP2612/GRP2612P/
GRP2612G

Accordance
FCC: Part 15 Class B; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/CA S004.
IC: ICES-003; CS-03, Part V.
Model GRP2612W

Accordance
FCC: Part 15 Class B; Part 15 Subpart C, 15.247; Part 15 Subpart E, 15.407; FCC Part 68 HAC.
CE: EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; EN 301 489-1;
EN 301 489-17; EN 300 328; EN 301 893; EN 62311.
RCM: AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268; AS/NZS 2772.2; AS/CA S004.
IC: ICES-003; CS-03, Part V; RSS-247; RSS-102.

The GRP2611G is a functional carrier—class IP phone with three lines and automatic
parameter settings, which is suitable for mass deployment and easy to manage. The model features a stylish
design and advanced features, including 12 universal virtual keys, two Gigabit ports, and color
An LCD display with a removable panel for changing the appearance of the device (adding a logo, etc.). The GRP series
includes carrier-grade security features for deployment in corporate infrastructures,
including secure boot, two firmware images, and encrypted data storage. GRP2611G phones are
supported by the Grandstream Device Management System (GDMS), a cloud
—based center for configuring, initializing, managing, and monitoring Grandstream endpoint deployments.
Designed with the needs of office workers in mind, the GRP2611G phones are designed for rapid
deployment in large enterprises, service providers, and other organizations with high volume
of telephone traffic.

Protocols/standards
SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
Network: IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN,
LLDP, TR-069, 802.1x

Graphic display
3.5" (480 x 320) high-resolution color LCD display

Network interfaces
One 10/100 Mbps Ethernet connector with auto-negotiation function and integrated
Class 2 PoE module

Wi-Fi
Built-in dual-band 802.11a/b/g/n/ac/ax Wi-Fi module (2.4 and 5 GHz) (GHP630W/
GHP631W models)

Main buttons
26 buttons, including:
6 context-sensitive programmable buttons;
12 standard numeric buttons (0-9: speed dial buttons with settings
in the web interface, *, #);
5 special buttons (Flash, Redial, Speakerphone, Answering machine, Hold);
3 volume control buttons: increase, decrease, off. Microphone (with red
LED indicator)

HD audio
One HD handset with broadband audio

Audio conference call
2 SIP accounts and 2 lines, conferences for up to 3 participants

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726, G.722 (broadband), G.723, iLBC,
full-band Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO),
VAD, AEC, CNG, PLC, AGC, AJB

Telephony functions
Dial, answer, redial, reset, speakerphone, voicemail (with server), translation,
conference, hold/de-hold, microphone mute and on, flexible
configuration of subscriber groups, switching to a backup server in case of failure during
speed dial

Additional features
Support for multicast paging and E911 service
Door opening support via GDS
Support for advanced jitter resistance algorithm
USB Type-C connector for charging external devices (max. 500 mA)

Wall mounting
One wall mount

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Secure boot, random default password, unique security certificate
for each device, passwords for administrators, 256-bit configuration file
AES encryption, SRTP, TLS, access control to the transmission medium based on 802.1x

Languages
English, Spanish, French, Chinese (expected)

Update/Setup
Firmware update via FTP/TFTP/HTTP/HTTPS, quick setup in 15 seconds,
mass configuration using GDMS/TR-069 or an XML configuration file with AES encryption

Nutrition and energy efficiency
Universal Power Adapter (GHP630W/GHP631W)
Input: 100-240 VAC, 50/60 Hz
Output: 12V/0.5A (6W)

Temperature and humidity
Operation: from 0 to +40 °C
Storage: -10 to +60 °C
Humidity: 10-90% (non-condensing)

Package Contents
GHP phone, handset with cord, mount, Universal power adapter (GHP630W
and GHP631W), Front panel, quick installation guide

Colour
White (GHP630, GHP630W), Black (GHP631, GHP631W)

Physical characteristics
Device size: 210 mm (L) * 147 mm (W) * 89.8mm (H) (with tube and stand)
Device weight: 601g (GHP630/GHP631), 658g (GHP630W/GHP631W [USA]), 668g (GHP630W/
GHP631W [other countries])
Package weight: 824g (GHP630/GHP631), 881g (GHP630W/GHP631W [USA]), 891g (GHP630W/
GHP631W [other countries])

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
8.0" (1280×800) Capacitive LCD Touch Screen, 10 touch points, IPS

Camera
Camera with CMOS sensor, protective curtain and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, Dual-band (2.4 and 5 GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display and AirPlay
Additional Connectors RJ9 headset jack (supports EHS headsets with Plantronics adapter), 3.5mm
jack for stereo headsets with microphone, USB 3.0 connector, Type-C, HDMI (output), HDMI (input)

Main buttons 2 function keys: VOLUME +/–, 3 special Android touch keys:
HOME, MENU and BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video codecs and capabilities
of H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bitrate up to 4 Mbit/s, video
conference for three participants (1080p, 30 fps), BFCP, camera video (up to 1080p, 30 fps) + The demonstrator
screen correction (up to 1080p, 15 fps), flicker prevention technology, autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 12-way audio conference (including creator),
single internal number (shared call appearance, SCA)/bridged line function
line appearance, BLA), virtual universal key, downloading contacts (XML, LDAP, up to
2000 items), call recording (locally and to the server), call log (up to 2000 entries),
call waiting, answering machine, XML screen setup, flexible setting of subscriber groups, personalization
of the ringtone and ringtones on hold, switching to a backup server in case of failure

Typical applications
• Local applications: Contacts, call log, file manager,
softkey, Settings, Browser, Clock, voicemail, Calculator, audio recording, GS store, etc.
• Support for third-party Android apps
• API/SDK available for custom application development

Application Deployment
Support for the development, download, and use of Android 11-compatible apps on
a device with provisioning controls

Android
Uses Android 11 OS

HD audio
Yes, two omnidirectional microphones, an HD headset, and a speaker with broadband
audio support.

Rack
Built-in stand with multiple tilt angles

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-session authentication, 256-bit configuration file
AES encryption, TLS, SRTP, 802.1x-based media access control
, Kensington Lock Slot, Secure boot with tamper protection

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Nutrition and energy efficiency
A universal power adapter is included in the package. Input: 100-240 V AC;
50-60 Hz; Output: DC12V, 1.5A (18W)
Built-in PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4
* It is necessary to use a power module or PoE+ to power the phone when using
USB devices.

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90%, non-condensing

Package Contents: GXV3480 phone, headset with cable, stand, universal power adapter, network
cable, screen cloth, quick installation guide
