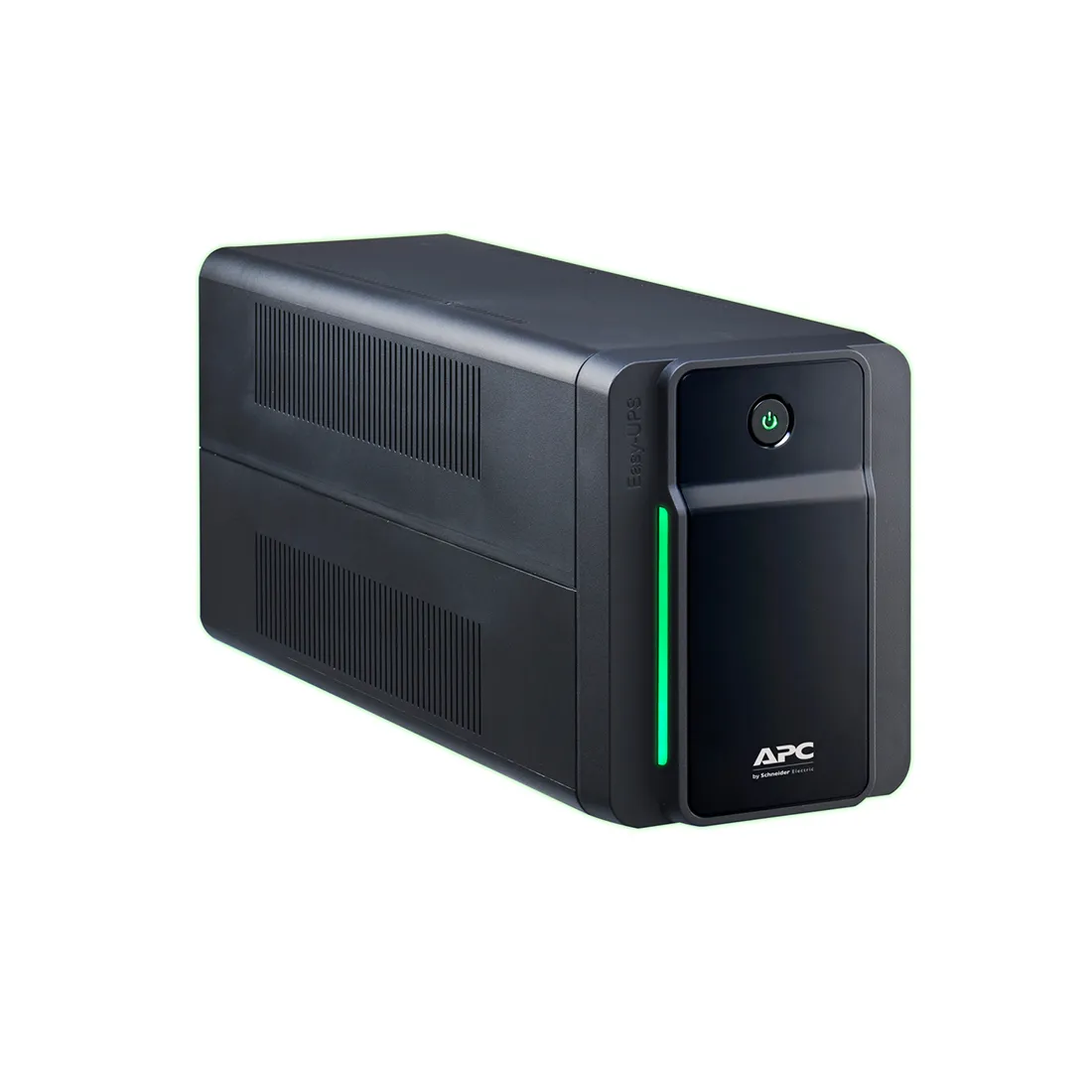

Источник бесперебойного питания APC Easy UPS BVX700LI-GR

Устройство, позволяющее подключенному оборудованию некоторое время работать от встроенных аккумуляторов, при пропадании электрического тока или при выходе его параметров за допустимые нормы. Кроме того, оно способно корректировать параметры (напряжение, частоту) электропитания. Часто применяется для обеспечения бесперебойной работы компьютеров.

Maximum adjustable power (W)
520 W/850 VA

Efficiency at full load
80,0 %

Output frequency (network synchronization)
47-63 Hz Network synchronization

Other output voltages
220 V

Topology
Support

Signal type
Stepwise approximation of a sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
47-63 Hz

Efficiency at full load
80,0 %

Other input voltages
220 V

Battery Type
Lead-acid battery

Typical recharge time
16hours(a)

Rated battery voltage
12 V

Expected battery life (years)
2-5

Battery power (W)
6 W

USB Interface Port(s)


Pulse energy rating
310joules

Maximum height
120 mm, 12.0 cm

Maximum width
130 mm, 13.0 cm

Maximum depth
365 mm, 36.5 cm

Net weight
4.5 kg

Main features
- Working time with 410W load: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: 4 IEC 60320 C13
- Cord length: 1.2 meters

Exit
- Maximum set power(W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto detection
- Input voltage range during mains operation: 140–300V
- Number of power cables: 1
- Input power factor under full load: 0.63

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
- Expected battery life (years): 3 - 5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation)
- Beep: Signal to switch to battery operation mode : a special signal of battery depletion

Surge protection and noise filtering
- Burst energy Rating: 273joules
- Data Line Protection: Ethernet protection 10/100/1000 Base-T RJ45

Physical parameters
- Maximum height: 160MM, 16.0cm
- Maximum width: 120MM, 12.0cm
- Maximum depth: 355MM, 35.5cm
- Net weight: 5.4KG
- Gross weight: 5.9KG
- Dimensions of the transport package: 250x197x430MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 (Non-condensing) %
- Operating range of altitude above sea level: 0 - 3000meters
- Storage temperature: -15 - 40 °C
- Storage relative humidity: 0 - 95 (Non-condensing) %
- Storage altitude above sea level: 0 - 3000meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 40.0dB(A)
- Protection class: IP20

Accordance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Main features
- Working time with 410W load: 0m 43s
- Output power: 410 Watts / 750 VA
- Rated output voltage: 230V
- Rated input voltage: 230V
- Input connection type: 4 IEC 60320 C13
- Cord length: 1.2 meters

Exit
- Maximum set power(W): 410 Watts / 750VA
- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Synchronized with the power grid
- Topology: Linear-interactive
- Type of voltage form: Step approximation of a sine wave
- Switching time: 6 ms typical : 10 ms maximum

Entrance
- Input frequency: 50/60 Hz +/- 5 Hz Auto detection
- Input voltage range during mains operation: 140–300V
- Number of power cables: 1
- Input power factor under full load: 0.63

Batteries and battery life
- Battery Type: Lead-acid battery
- Typical recharge time: 8 hours
- Rated battery voltage: 12 V
- Replaceable battery: RBC17
- Expected battery life (years): 3 - 5

Communication and administrative tools
- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation)
- Beep: Signal to switch to battery operation mode : a special signal of battery depletion

Surge protection and noise filtering
- Burst energy Rating: 273joules
- Data Line Protection: Ethernet protection 10/100/1000 Base-T RJ45

Physical parameters
- Maximum height: 160MM, 16.0cm
- Maximum width: 120MM, 12.0cm
- Maximum depth: 355MM, 35.5cm
- Net weight: 5.4KG
- Gross weight: 5.9KG
- Dimensions of the transport package: 250x197x430MM
- Color: Black

Environmental Parameters
- Operating temperature: 0 - 40 °C
- Operating range of relative humidity: 0 - 95 (Non-condensing) %
- Operating range of altitude above sea level: 0 - 3000meters
- Storage temperature: -15 - 40 °C
- Storage relative humidity: 0 - 95 (Non-condensing) %
- Storage altitude above sea level: 0 - 3000meters
- Acoustic noise level at a distance of 1 m from the surface of the device: 40.0dB(A)
- Protection class: IP20

Accordance
- Compliance with the requirements: CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
