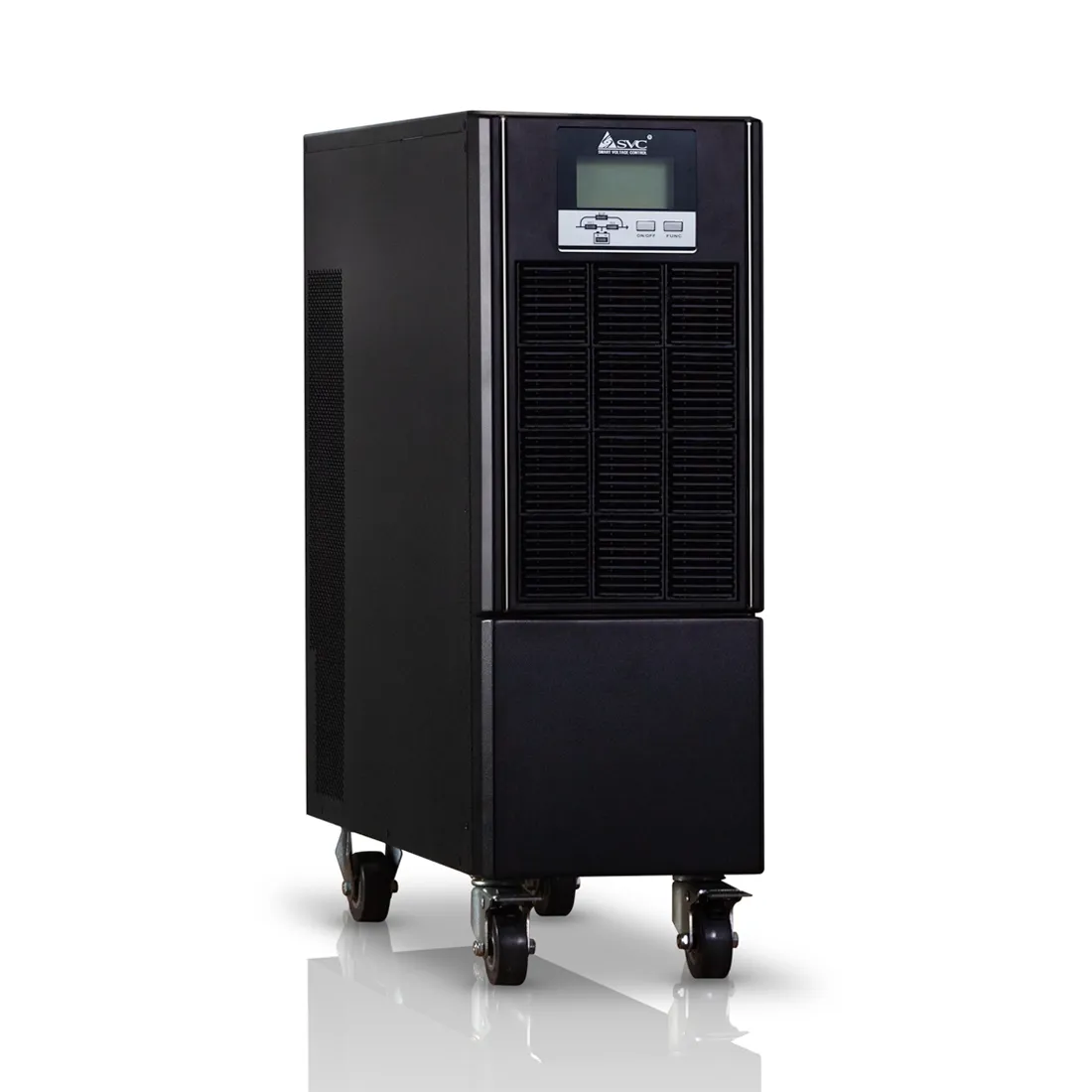

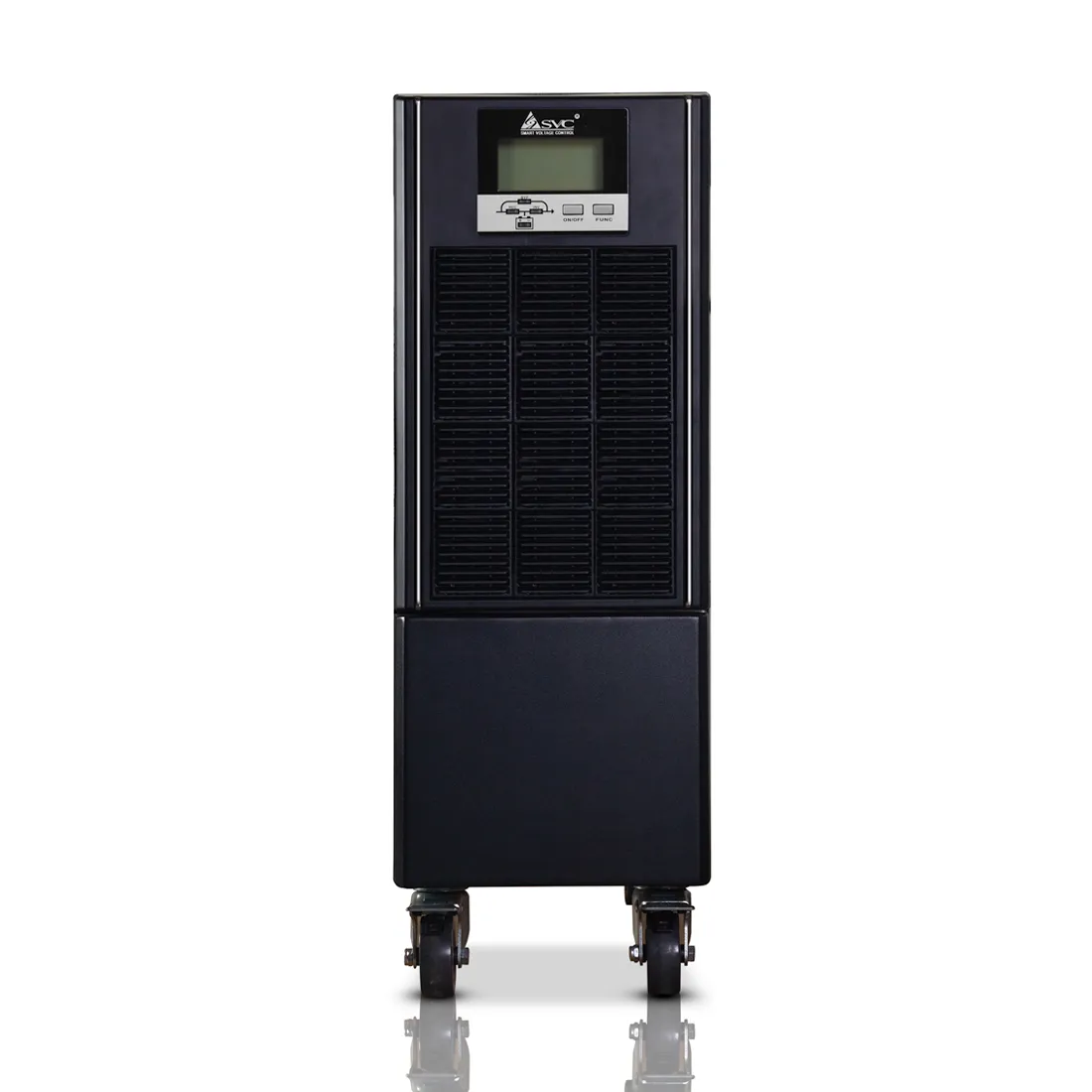

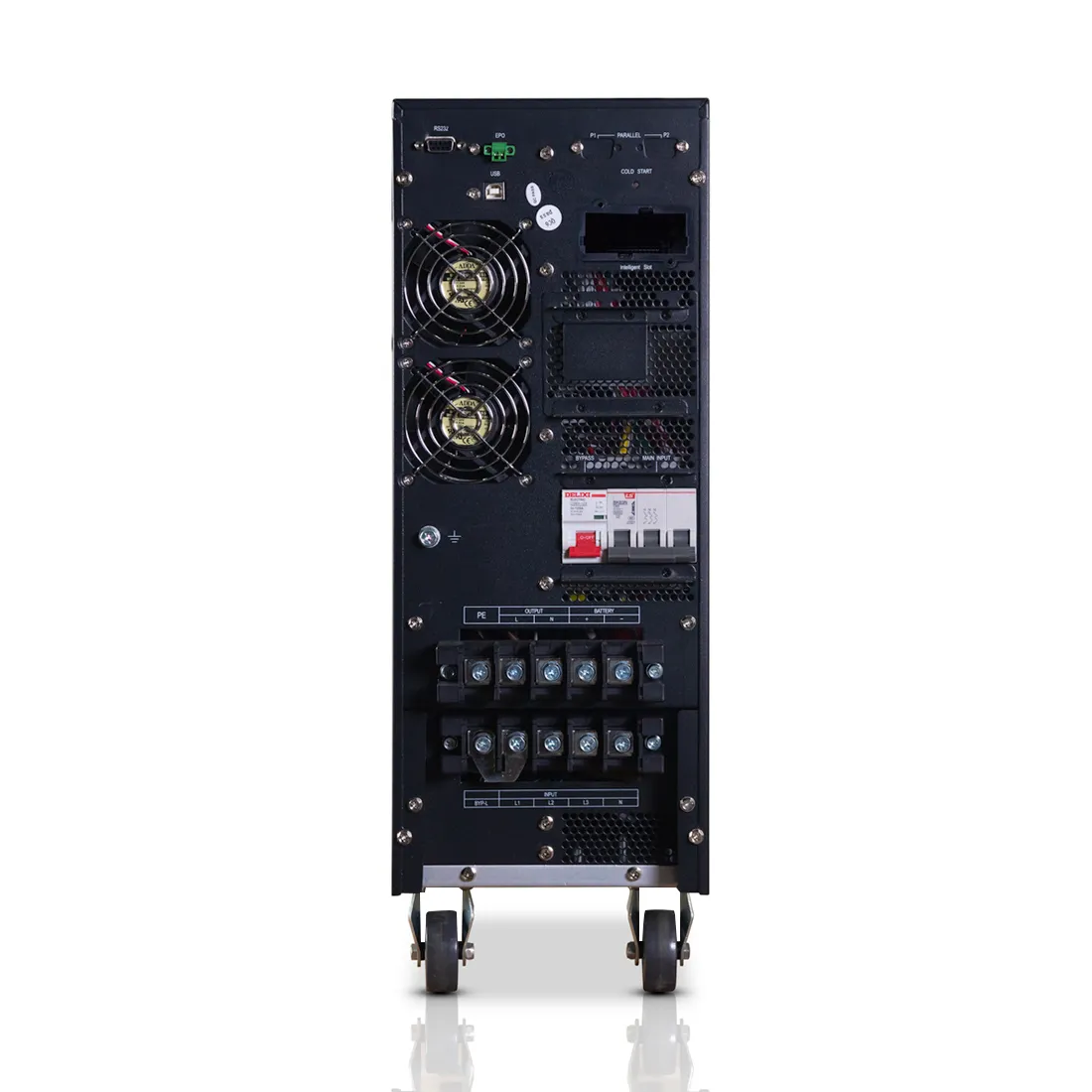

Источник бесперебойного питания SVC GT31-15KVA

Дополнительный батарейный шкаф для источника бесперебойного питания Daker DK Plus 10 кВА (3 101 77) и Keor DK 10кВА. Позволяет увеличить время автономной работы ИБП, кроме того, использование дополнительных батарей особенно необходимо, если в вашей электрической сети возможны длительные перебои, в то время как подключенные устройства не могут оставаться без питания.

Maximum adjustable power (W)
2.7 kW/3.0 kVA

Output voltage Note
Configurable for rated output voltage 220: 230 or 240.

Output voltage distortion
Less than 5 %

Output frequency (network synchronization)
50/60 Hz +/- 3 Hz Network synchronization

Other output voltages
220 V, 240 V

Topology
The line is interactive

Signal type
The sine wave

Transfer time
6 ms is typical: 10 ms maximum

Input frequency
50/60 Hz +/- 3 Hz, auto-detection

Input voltage range for basic operations
151-302 Adjustable, 160-286 V

Number of power cords
1

Other input voltages
220 V, 240 V

Battery Type
Lead-acid battery

Typical recharge time
3 hours)

Expected battery life (years)
3-5

The number of RBC
1

Battery power (W)
271 W

Extended working time
1

Smart Slot interface Port(s)
, USB

The Control Panel
Multifunctional LCD status and control console

Emergency Power Off (EPO)
Yes

The available number of SmartSlot™ interfaces
1

Pulse energy rating
365joules

Filtering
Constant multi-pole noise filtering: 0.3% IEEE overvoltage bandwidth: zero response time limits: compliant with UL 1449

Maximum height
435 mm, 43.5 cm

Maximum width
197 mm, 19.7 cm

Maximum depth
544 mm, 54.4 cm

Net weight
52.5 kg

Max. power used
100%

Main input voltage
230 V

Other input voltage
220 V
240 V

Main output voltage
230 V

Other output voltage
220 V
240 V

Rated power [W]
1980 V

Rated power [VA]
2200 V·A

Type of input connection
IEC 320 C20
Schuko CEE 7/EU1-16P
BS1363A British

the type of initial connection
8 IEC 320 C13

2 IEC Jumpers
1 IEC 320 C19

Number of rack units
0U

Number of cables
1

Battery Type
Lead-acid battery

Additional equipment
USB Cable

Additional information
Configuration is possible for operation with an output voltage of 220: 230 or 240 V

The possibility of increasing the operating time from the battery
0

Pre-installed batteries
0

Number of empty battery compartments
0

Battery recharge time
Year 3

Number of battery replaceable units
1

Battery life
3...5 year(years)

Replaceable battery
RBC55

Charger power (W)
260 V rated

Input voltage limits
151...302 V adjustable
160...286 V

Network frequency
50/60 Hz +/- 3 Hz auto-sensing

Harmonic distortion
Less than 5

Maximum configurable power [VA]
2200 V·A

Maximum configurable power [W]
1980 V

Battery switching time
6 ms (typical value): 10 ms (maximum value)

Type of UPS
Linear Interactive UPS

Wave type
Sinusoidal signal

Output frequency
50/60 Hz +/- 3 Hz synchronized with the power grid

Sound level
45 dBA

Power dissipation
275 BTU/hour

Altitude above sea level
0...10000 feet

Ambient operating temperature
0…40 °C

The ambient temperature for the assembly.
-15…45 °C

Storage height
0.00...15240.00 m

Relative humidity
0...95 %

The relative humidity of storage
is 0...95 %

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/ 208/ 220/ 230/ 240 AC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection
Standard operating time model
⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1
⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1

A model with an extended working time
Terminal x1, programmable terminal x1

Overload ability(1)
106-125% 5 min, 126-150% 1 min, > 150% 500 ms

Current peak
The coefficient is 31

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/ Lithium-ion

Rated voltage
The standard run-time model
⦁ RT-5K/6K 192 V DC
⦁ RT-8K/10K 240 V DC

The extended execution time model
144 V DC(2), 192-264 V DC

Charge current
The standard run-time model
⦁ RT-5K/6K 1A (default), up to 8 A
⦁ RT-8K/10K 1.5A (default), up to 8 A

Extended Execution time model
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
The standard run-time model
⦁ RT-5K/6K 440 x 665 x 176 mm
⦁ RT-8K/10K 440 x 750 x 218 mm
A model with an extended working time
⦁ RT-5K/6K 440 x 430 x 88.2 mm
⦁ RT-8K/10K 440 x 565 x 88.2 mm

Weight
A model with a standard operating time
⦁ RT-5K/6K 54 kg
⦁ RT-8K/10K 85.5 kg
A model with an extended working time
⦁ RT-5K/6K 10.9 kg
⦁ RT-8K/10K 15.2 kg

ИБП APC Smart-UPS предназначен для ИТ-специалистов и сетевых администраторов, чтобы обеспечить бесперебойную работу и непрерывность бизнеса. APC Smart-UPS SRT2200RMXLI обеспечивает чистое синусоидальное питание и увеличенное время автономной работы для поддержки критически важной электроники во время перебоев в подаче электроэнергии. В комплект поставки входит: Компакт-диск с программным обеспечением Съемный шнур питания для конкретной страны Компакт-диск с документацией Руководство по установке Крепеж для установки в стойку Кронштейны для монтажа в аппаратурные стойки Направляющие для монтажа в аппаратурные стойки USB кабель Гарантийная карта
