Grandstream GXV3370, IP Multimedia Video Phone, 7" capasitive touch screen color LCD (1024x600), 1.3M CMOS camera, Dual 100M/1000M Ethernet 802.3af PoE

Grandstream GXV3480 — это мощный интеллектуальный видеотелефон высокого класса для Android, который сочетает в себе 16-линейный IP-телефон с многоплатформенным решением для видео-сотрудничества и функциональность планшета Android, предлагая универсальное решение для связи. Это идеальное настольное устройство для занятых профессионалов и руководителей, а также мощное, но экономичное устройство для любого конференц-зала.

IP-видеотелефон GXV3480 для Android сочетает в себе 16-линейный IP-видеотелефон с многоплатформенным решением для видеоконференций и функциональность планшета Android, предлагая универсальное коммуникационное решение. Телефон оснащен 8-дюймовым емкостным сенсорным экраном IPS LCD с разрешением 1280x800, 2-мегапиксельной камерой, двойным микрофоном, двумя гигабитными портами с PoE/PoE+, HD-аудио и HD-видео, встроенным Wi-Fi 6 (802.11 a/b/g/n/ac). /ax) и Bluetooth 5.0, богатые периферийные интерфейсы. Он также работает на Android 11 и предлагает мгновенный доступ к сотням тысяч приложений для Android. Сочетая современный IP-видеотелефон, передовое решение для видеоконференций и функциональность планшета Android, GXV3480 предлагает предприятиям по всему миру мощное настольное решение для связи и повышения производительности.

Функции Grandstream GXV3480

• 16 линий до 16 SIP-аккаунтов
• Встроенная 2-мегапиксельная камера для видеозвонков с защитной шторкой
• Работает на операционной системе Android 11.
• Встроенный Bluetooth 5.0 для синхронизации с мобильными устройствами и подключения Bluetooth-гарнитур
• Двойные сетевые порты 10/100/1000 Мбит/с с автоматическим определением скорости
• Встроенный двухдиапазонный Wi-Fi 6 (2,4 ГГц и 5 ГГц)
• Встроенный PoE/PoE+ для питания и сетевых подключений
• Громкая связь HD с двумя микрофонами и шумоподавлением 2.0, усовершенствованным эхоподавлением и отличным качеством одновременного разговора
• Четырехъядерный процессор ARMCortex-A55 с тактовой частотой 2,0 ГГц, 4 ГБ ОЗУ и 16 ГБ флэш-памяти eMMC
• 8-дюймовый (1280x800) емкостный IPS ЖК-экран с 10 точками касания
• Периферийные устройства включают вход / выход HDMI, USB, Type-C, разъем для гарнитуры 3,5 мм , EHS (гарнитуры Plantronics)
• 12-сторонняя аудиоконференция HD и 3-сторонняя видеосвязь 1080p 30fps HD

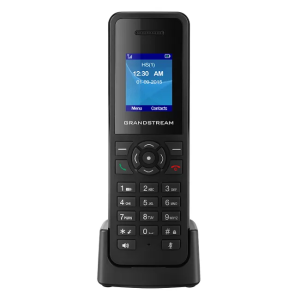

Wireless interface
Standard: DECT
Frequency ranges:
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (USA),
1910 – 1920 MHz (Brazil), 1786 – 1792 MHz (Korea),
1893 – 1906 MHz (Japan), 1880 – 1895 MHz (Taiwan)
Number of channels: 10 (Europe), 5 (USA, Brazil or Japan), 3 (Korea), 8
(Taiwan)
Range: up to 300 meters outdoors and up to 50 meters indoors

The periphery
1.8 inch (128x160) color TFT LCD screen
23 keys, including 2 on-screen keys, 5 navigation/menu keys, 4
function keys for SEND,
POWER/END (power on/off), SPEAKERPHONE (speakerphone), MUTE (
mute)
3-color LED indicating a pending message
3.5mm Headset jack
Removable belt clip
Micro-USB connector for charging and battery-free operation

Protocol/Standards
Compatible with a hearing aid (HAC)

Voice codecs
G.722 codec for HD audio and G.726 codec for narrowband audio, AEC, AGC,
Suppression of outdoor noise

Telephony functions
Hold, Forward, Transfer, 3-way conference, Call parking
, Call Interception, Downloadable Phonebook,
Call waiting, Call log, Answering machine, One-click call, Flexible
number plan, Music on hold, DID call group

Application Examples
Weather, Exchange rate (pending)

HD Audio
Yes, both in the handset and in the speaker

Safety
DECT authentication and encryption

Supported languages
English, Czech, German, Spanish, French, Hebrew,
Italian, Dutch, Polish, Portuguese, Russian, Turkish,
Arabic, Chinese Simplified, Chinese Traditional, Japanese,
Korean, Slovak, Serbian

Update/Customization
Over-the-air Software Update (SUOTA), wireless handset setup

Line access
Each tube can have access to up to ten (10) lines

Energy consumption and environmental efficiency
Universal AC power supply 100-240V 50/60Hz; Output
5V DC 1A; Micro-USB connection;
AAA 800mAh Ni-MH low self-discharge (LSD) batteries
(250 hours standby and 20 hours talk time)

Package Contents Tube, universal power supply, charging station,
mounting clip, 2 batteries, quick start guide

Dimensions (H x W x D)
Tube: 155 x 50 x 26 mm, charging station: 35 x 63.5 x 54 mm
Tube weight: 138g; Charging station: 71g; Universal power supply: 50g;
Package: 360g

Temperature and humidity
Operation: -10º to 50ºC (14 to 122ºF); Charging: 0 to 45ºC (32 to 113ºF)
Storage: - 20º to 60ºC (-4 to 140ºF); Humidity: 10% to 90% non
-condensing

Compliance with standards
FCC: Part 15D; 47 CFR 2.1093 and IEEE1528-2013, Part 68, Part 15B
CE: EN60950; EN301489-1-6; EN301406; EN50360; EN62209-1
RCM: AS/NZS60950, AS/ACIF S004
ANATEL: #2288-16-9452

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

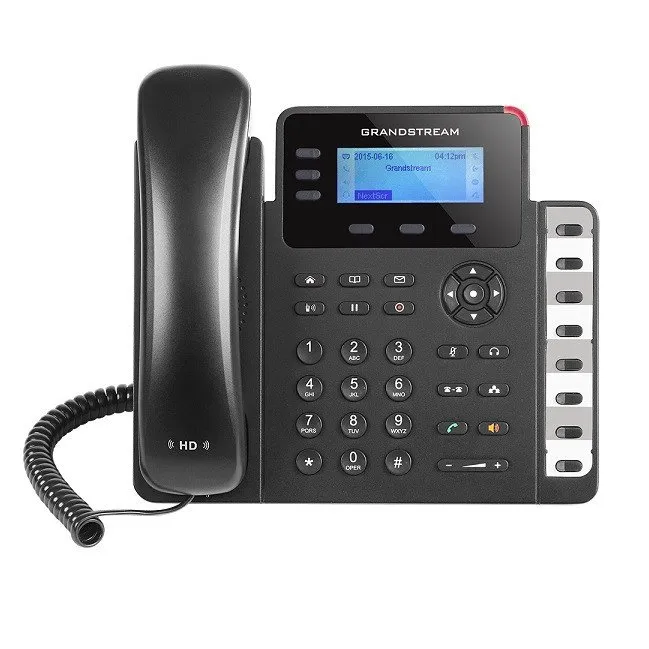

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

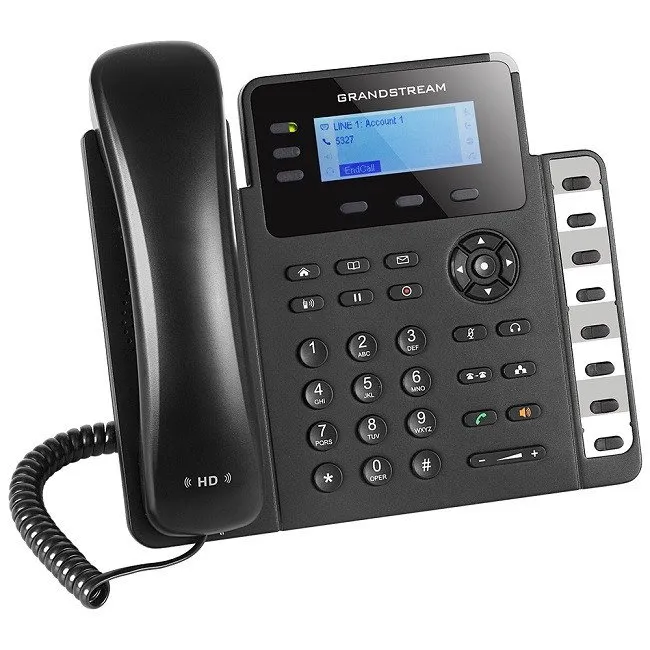

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

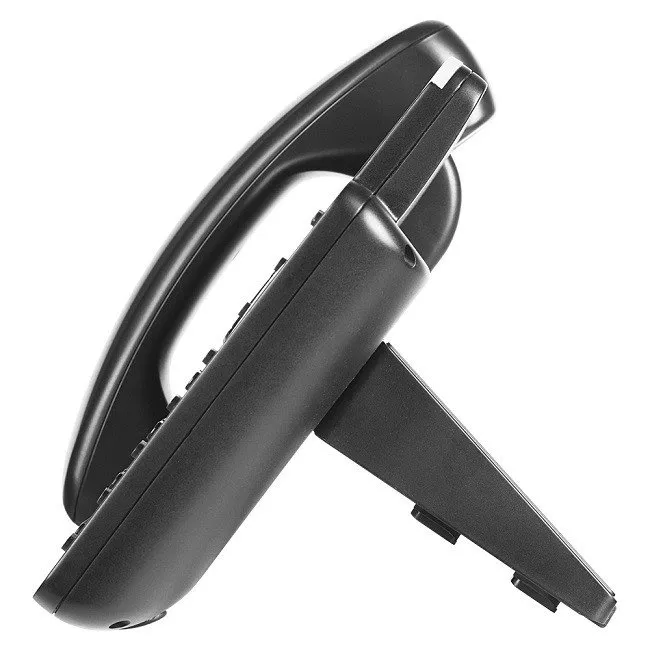

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)

Temperature and Humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% - 90%
Non - condensing

Contents of the delivery set
Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
"Quick Start", brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

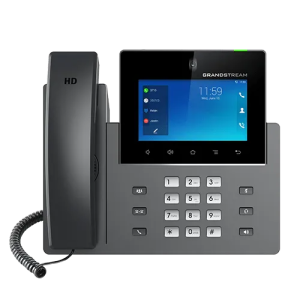

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)

Temperature and Humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% - 90%
Non - condensing

Contents of the delivery set
Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
"Quick Start", brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6 (expected), OpenVPN (expected)

Network interface
Gigabit Ethernet port with auto-detection and built-in PoE+ (IEEE
802.3at Class 4)

Graphic display
4.3” IPS LCD display with 800x480 resolution

Microphone
3 cardioid microphones; capture distance 12 ft., 360° coverage

Speaker
Frequency: 220-14,000 Hz
Volume Up to 86 dB at 0.5 meters

Bluetooth
Yes, built-in. Bluetooth 4.0

Wi-Fi
Yes, built-in. 802.11 b/g/n

Additional ports
3.5mm audio port, USB Micro-B, RJ48 flex port

Speech codecs
Support G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (expected),
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), G.729A/B,
VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
6 SIP accounts, retention, forwarding, translation, 7-way
conference, call parking, call interception, downloadable
phonebook (XML, LDAP, up to 2000 entries), call waiting, call history
(up to 2000 entries), XML screen setup, automatic call reception,
mouse-click dialing, flexible number plan, "hot" workplace,
personalized ringtones and music on hold,
server reservation and switching in case of failure

Application Examples
Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google Calendar,
import/export data from a mobile phone via Bluetooth, etc. API/SDK
is available for advanced development of user applications

HD Audio
Yes, a speaker with broadband audio support

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS.

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit configuration file protected
by AES, TLS, SRTP*, HTTPS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc.

Update/Provision of services
Firmware update via TFTP/HTTP/HTTPS or local HTTP download,
mass connection using TR-069 or AES encrypted
XML configuration file

Energy consumption and environmental efficiency
Universal power supply: Input: 100-240VAC 50-60Hz; Output: 12VDC,2A (24W)

Physical properties
Dimensions: 280mm(W) x 285mm(L) x 60mm(H) Weight:1.34kg; Package weight: 2.35kg

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: from 10% to 90% without condensation

Contents
of the delivery set

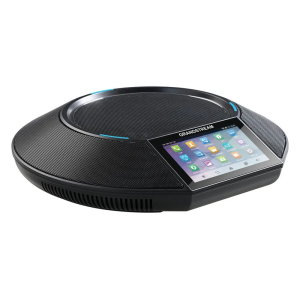

Phone GAC2500, Universal power supply, Network cable, USB cable,
RJ48 cascade cable, Quick Installation Guide

Accordance
FCC: Part 15(CFR 47) Class B, FCC Part 15C 15.247; UL 60950 (power adapter).
CE: EN 55032,EN 55035,EN 61000-3-2,EN 61000-3-3,ETSI EN 301 489-1,ETSI EN 301
489-17, ETSI EN 300 328, EN 60950-1,EN 62311, RoHS.
RCM: AS/NZS CISPR 32, AS/NZS 60950.1, AS/NZS 4268.
