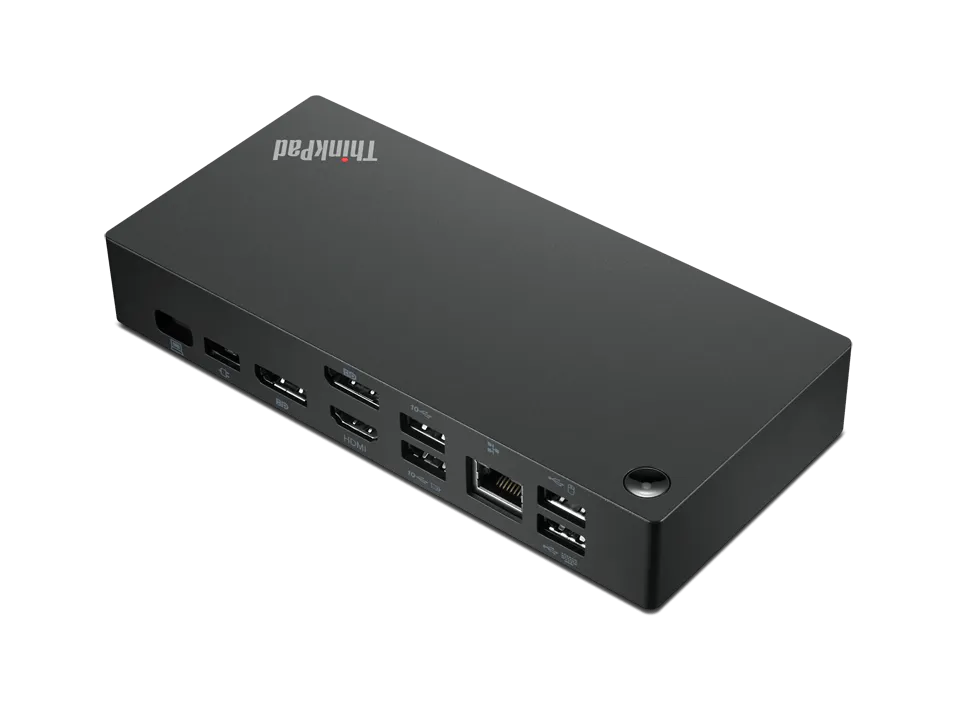

TP Universal USB-C Dock -EU

Interfaces/Ports
Connectivity

Video port
1 DisplayPort 1.4 port (HDCP 2.2) (Supports up to 4K 3840 x 2160, 60 Hz, DSC)
1 DisplayPort 1.4 out port (HDCP 2.2) (Supports up to 4K 3840 x 2160, 60 Hz, MST)
2 HDMI 2.0 ports (HDCP 2.2) (Supports up to 4K 3840 x 2160, 60 Hz)
1 Analog 2.0 audio line out port (3.5 mm jack)
1 RJ45 ethernet port, 1 GbE for remote management
1 RS232 port


USB port
1 USB-C 5Gbps upstream ports (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W)
1 USB-C 5Gbps downstream ports (Power Delivery up to 15 W)
3 USB 5Gbps Type-A downstream port
3 USB-B 5Gbps upstream ports

Interfaces/Ports
Interfaces
Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)
