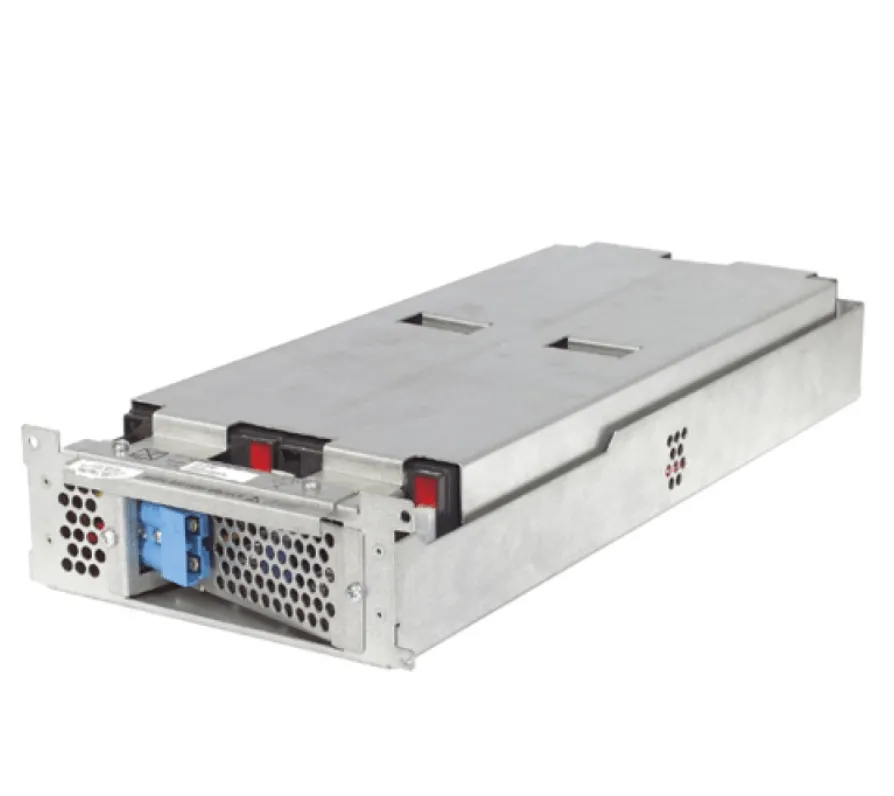

APC Replacement Battery Cartridge #23

Product Type
Battery

Number of Units
2U

Battery Type
Lead-acid battery

Supplied equipment
Documentation CD-ROM

Installation Guide
Brackets for mounting in hardware racks

Series
Smart-UPS Battery Systems

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
72 V

number of RBC™ cartridges
2

Spare battery
APCRBC141

Colour
Black

Height
8,5 cm

Width
43,2 cm

Depth
59,4 cm

Net weight
33,9 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,0000000000…15240,0000000000 m

Relative humidity of storage
0...95% without condensation

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years

Number of battery packs on the chain
4

RBC quantity
1

Battery placement
Internal battery

Battery installation
Closed battery cartridge

Battery output voltage
48

Form factor
Rack Rackmount (Installation in the cabinet)

Maximum height
83 mm, 8.3 cm

Maximum width
165 mm, 16.5 cm

Maximum depth
419 mm, 41.9 cm

Net weight, kg
10.82

Gross weight, kg
11.73

Height of the transport package
190 mm, 19.0 cm

The depth of the transport package
is 546 mm, 54.6 cm

Width of the transport package
292 mm, 29.2 cm

Colour
Black

Devices on a pallet
24

Operating temperature
0-40 °C

Operating range of relative humidity
0–95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15–45 °C

Relative humidity of storage
0–95 %

Altitude above sea level storage
0-15000meters

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3–5

- RBC quantity:
1

Physical parameters
- Maximum height:
76 mm, 7.6 cm

- Maximum width:
210 mm, 21.0 cm

- Maximum depth:
762 mm, 76.2 cm

- Net weight:
15.29 kg

- Gross weight:
17.55 kg

- Dimensions of the transport package:
203x343x635MM

- Color:
Black

- Devices on a pallet:
12.0

Environmental parameters
- Operating temperature:
0-40 °C

- Operating range of relative humidity:
0-95 (non-condensing) %

- Working altitude above sea level:
0 - 3048 meters

- Storage temperature:
-15–45 °C

- Relative humidity of storage:
0-95 (non-condensing) %

- Altitude above sea storage level:
0 - 15240 meters

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (reduced to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)

Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency 50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

Connection:

Standard runtime model:
● RT-5K/6KC13 x6, C19 x2, terminal x1, programmable socket C19 x1
● RT-8K/10KC13 x6, C19 x4, Terminal x1, Programmable socket C19 x1

A model with extended working hours
Terminal x1, Programmable Terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode 95.5%

Eco Mode
Up to 99%

Battery Type VRLA/Lithium-ion

Rated voltage:
Standard operating time model:
● RT-5K/6K192 In the post. current
● RT-8K/10K240 Per post. current

A model with extended working hours
144 In the post. current(2), 192-264 VDC. current

Charging current:
Standard operating time model:
● RT-5K/6K1 A (default), up to 8 A
● RT-8K/10K1.5 A (default), up to 8 A

A model with extended working hours
Up to 8 A

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)
Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with extended working hours:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Standard operating time model:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Main Input voltage
12 B direct current

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Closed battery pack

number of RBC™ cartridges
1

Colour
Black

Height
8,3 cm

Width
21,6 cm

depth
34.3 cm

Net weight
10 kg

Installation execution
Non - stable

USB-compatible
No

Operating ambient temperature
0...45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95 %

Product type or details
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Included equipment
All necessary connectors

Battery Recycling Guide
Metal tray or battery case

Reusable packaging
Installation Guide

Number of available battery slots
0

Battery modules included
0

Installing the device
The battery compartment is closed

Battery voltage
48 V

Additional information
The SUA48RMXLBP3U requires two (2) APCRBC105S..

The number of RBC
1

Height
10.8 cm

Width
16.5 cm

Depth
57.2 cm

Net weight of the product
24.55 kg

Installation method
It is not mounted in a rack

Ambient air temperature during operation
0...40 °C

Working height
0...10000 ft

Relative humidity
0...95 %

The ambient temperature during storage
is -5...45 °C

Storage height
0,0000000000...15240,0000000000 m

Relative humidity during storage
is 0...95 %

Exit
- Battery output voltage:
192 V

Batteries and battery life
- Battery type:
Lead-acid battery

- Installation of batteries:
Closed battery cartridge

- Expected battery life (years):
3-5

- Information about replaceable battery packs:
APCRBC140 consists of two battery modules

- RBC™ quantity:
1

Physical parameters
- Maximum height:
122MM, 12.2cm

- Maximum width:
197MM, 19.7cm

- Maximum depth:
597MM, 59.7cm

- Net weight:
34.55KG

- Gross weight:
37.27KG

- Dimensions of the transport package:
226x409x781MM

- Color:
Black

- Devices on the pallet:
20.0

Environmental Parameters
- Operating temperature:
0 - 40 °C

- Operating range of relative humidity:
0 - 95 (Non-condensing) %

- Operating range of altitude above sea level:
0 - 3048meters

- Storage temperature:
-15 - 45 °C

- Storage relative humidity:
0 - 95 (Non-condensing) %

- Altitude above sea level storage:
0 - 15240 meters

Accordance
- Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.

Type of product or component
Replaceable battery cartridge

Battery Type
Lead-acid battery

Battery packs per chain
10

Battery connectors are empty
0

Included battery modules
0

Installation of the device
Closed battery cartridge

Battery voltage
120 V

Number of RBC
1

Height
2.99 inches (7.6 cm)

Width
7.99 inches (20.3 cm)

Depth
22.99 inches (58.4 cm)

Net
Weight 49.10 lbs (USA) (22.27 kg)

Mounting mode
Not mounted in a rack

Ambient air temperature during operation
32…104 °F (0…40 °C)

Working height
0...10000 feet

Relative humidity
0...95 %

Ambient temperature during storage
5...113 °F (-15...45 °C)

Storage height
0-50,000 ft (0.00–15,240.00 m)

Relative humidity during storage
0...95 %

Category
11309-APC PRODUCTS FOR RESALE

Discount schedule
APK1

GTIN
731304282686

Returnability
No

Country of origin
PH
