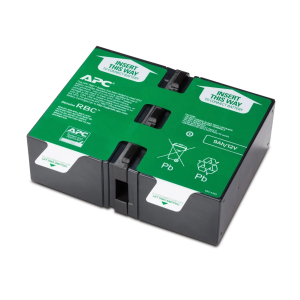

APC Replacement Battery Cartridge #150

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)
Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

A model with extended working hours
Terminal x1, programmable terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/Lithium-ion

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)

Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with an extended working time:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Model with standard operating time:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Operating temperature
0-55 °C (45-55 °C load reduction up to 75%)

Humidity
5-95% (non-condensing)

Noise level:
● RT-5K/6K● RT-8K/10K
Altitude above sea level
0-3000 m (decrease in nominal characteristics by 1%/100 m from 1000 to 3000 m)

Protection against penetration
IP20

Safety
CE, UKCA, TISI, RCM

EMS
IEC 62040-2

Efficiency
IEC 62040-3

Stability
RoHS, REACH

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
2

RBC™ quantity
1

Battery placement
Internal battery

Battery installation
Self-contained battery rack

Battery output voltage
24

Maximum height
107mm , 10.7cm

Maximum width
107mm , 10.7cm

Maximum depth
144mm , 14.4cm

Net weight, kg
3.3

Gross weight, kg
3.75

Height of the transport package
229mm , 22.9cm

Depth of transport packaging
229mm , 22.9cm

Width of the transport package
229mm , 22.9cm

Devices on a pallet
100

Operating temperature
0 - 50 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Main Features
- Number of Unit - 2U;
- Battery type - Lead-acid battery.

Batteries and battery life:
- Free battery compartments – 0;
- Pre-installed batteries – 0;
- Battery voltage - 96 V;
- Number of RBC™ cartridges - 2;
- Spare battery - APCRBC152.

Physical parameters
- Color – Black;
- Height - 8.5 cm;
- Width - 43.2 cm;
- Depth - 59.4 cm;
- Net weight - 40.6 kg;
- Installation design – Rack.

Environmental parameters:
- Ambient temperature - 0...40 °C;
- Altitude above sea level - 0...10000 ft;
- Relative humidity - 0...95% without condensation;
- Ambient temperature during storage - (-15...45 °C);
- Storage height - 0,00...15240,00 m;
- Relative humidity of storage - 0...95% without condensation.

Product Type
Battery

Number of Units
2U

Battery Type
Lead-acid battery

Supplied equipment
Documentation CD-ROM

Installation Guide
Brackets for mounting in hardware racks

Series
Smart-UPS Battery Systems

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
72 V

number of RBC™ cartridges
2

Spare battery
APCRBC141

Colour
Black

Height
8,5 cm

Width
43,2 cm

Depth
59,4 cm

Net weight
33,9 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-15…45 °C

Storage height
0,0000000000…15240,0000000000 m

Relative humidity of storage
0...95% without condensation

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Product Type
Battery

Number of Units
4U

Battery Type
Lead-acid battery

Colour
Black

Height
43,2 cm

Width
17,8 cm

Depth
48.3 cm

Net weight
60,91 kg

Installation execution
Rack-mounted

Ambient operating temperature
0…40 °C

Relative humidity
0...95 %

Altitude above sea level
0...10000 ft

Ambient temperature during storage
-15…45 °C

The relative humidity of storage
is 0...95 %

Storage height
0,00…15240,00 m

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

number of RBC™ cartridges
1

Height
20,8 cm

Width
16.5 cm

depth
25,9 cm

Net weight
27,18 kg

Installation execution
Non - stable

Operating ambient temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95 %

Overview Presentation High capacity battery pack for use with Easy UPS 3S with internal battery compartments and empty modular battery cabinet for Easy UPS 3S (E3SXR6). Each battery pack consists of four 9 Ah battery modules. Delivery Time Typically ships within 6 weeks Key Features Product Type Battery Module Product Series Compatibility Easy UPS 3M Battery Type Valve Regulated Lead Acid (VRLA) Easy UPS 3M Series Batteries and Runtimes Free Battery Slots 0 Pre-Installed Batteries 0 Unit Mounting Sealed Battery Pack Battery Voltage 120 V Battery Wattage 9 WAh Physical Parameters Height 15.7 cm Width 42.8 cm Depth 76 cm Net Weight 108 kg Mounting Type Non-Rack Mount Environmental Parameters Ambient Operating Temperature 0…40 °C Altitude 0...3281 ft Relative Humidity 0…95 % non-condensing Ambient Storage Temperature -15…40 °C Storage Altitude 0…15240 m Storage Relative Humidity 0…95 % non-condensing Unit Type of Package 1 PCE Number of units in a package 1 Package 1 Height 18,000 cm Package 1 Width 56,000 cm Package 1 Length 82,000 cm Package weight 112,000 kg
