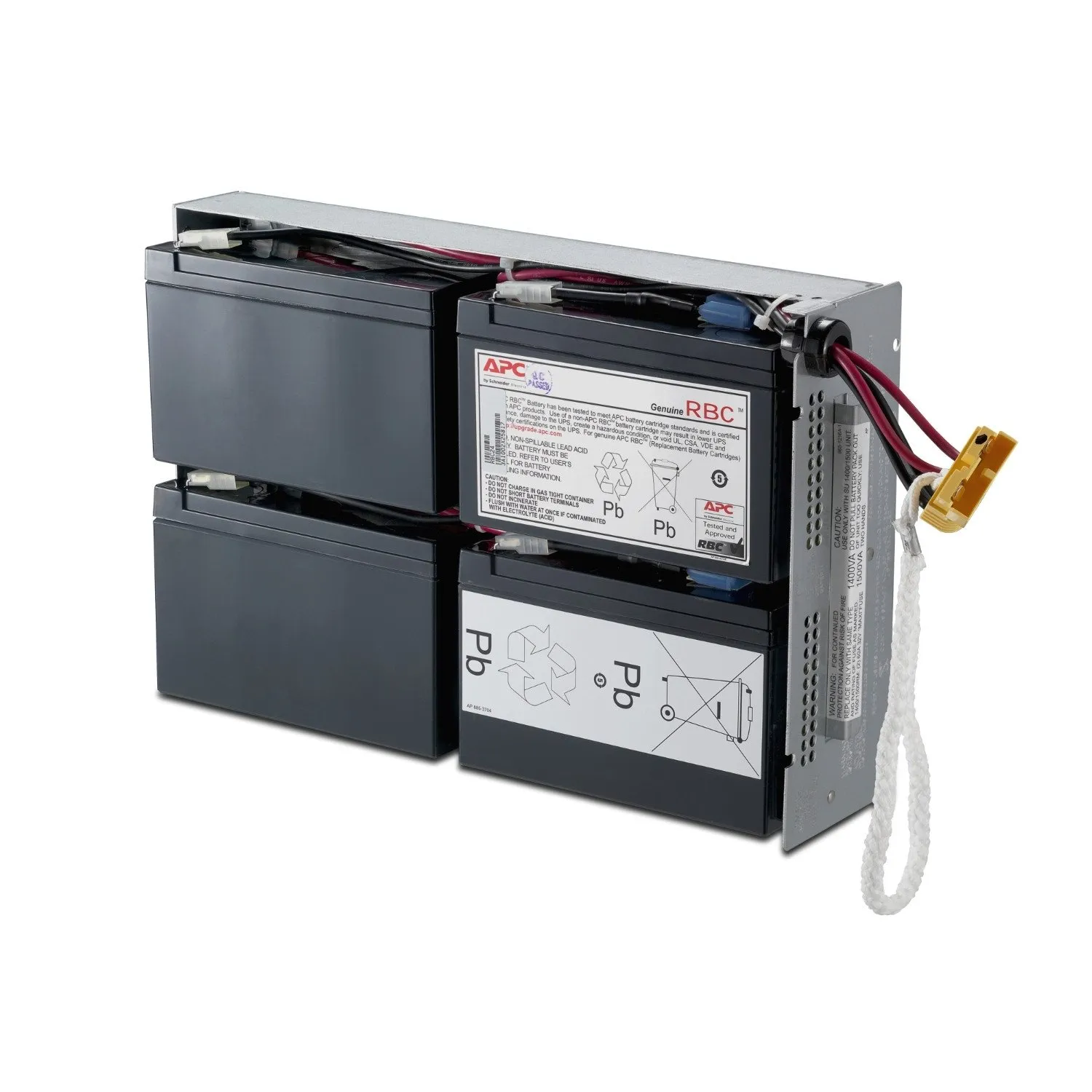

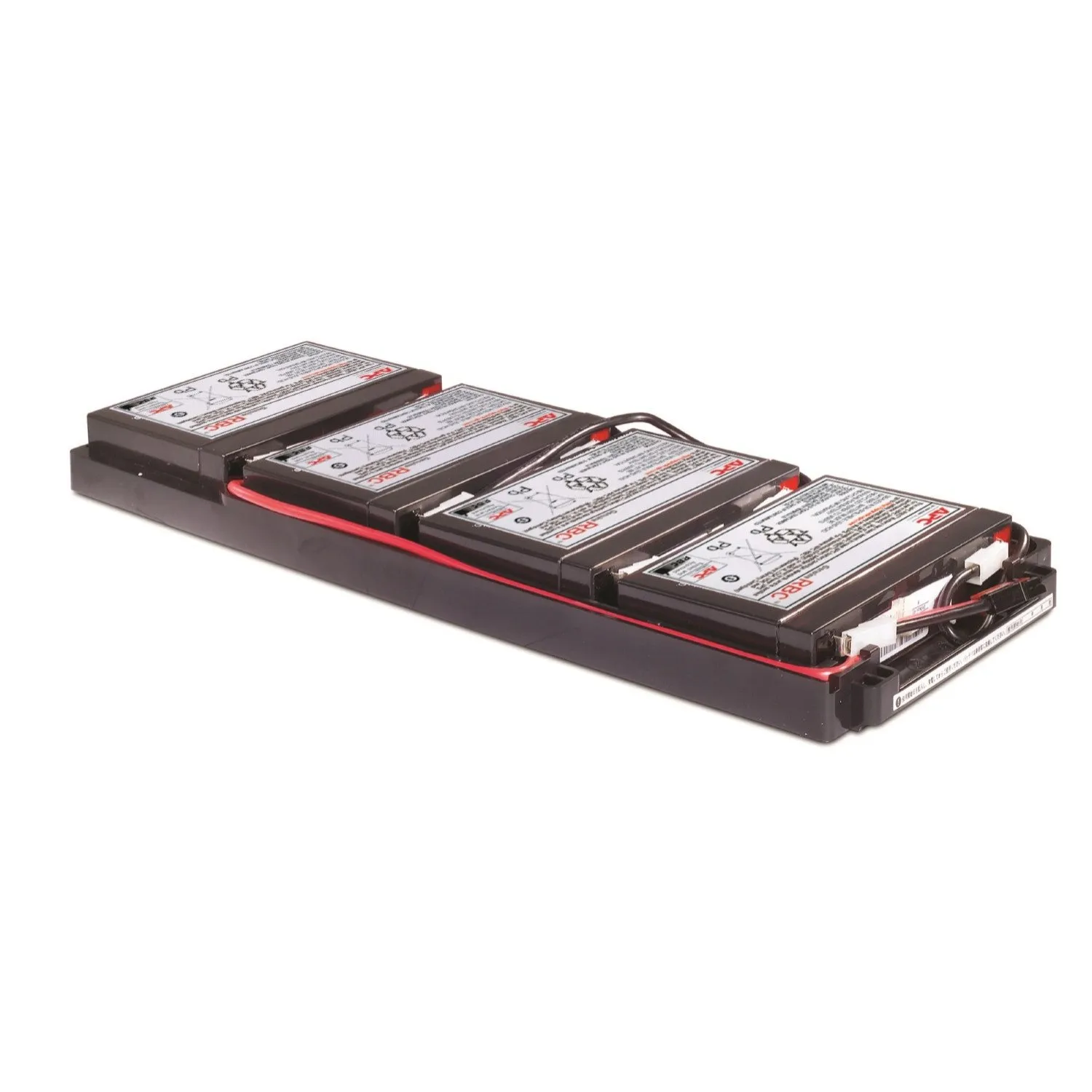

APC Replacement Battery Cartridge RBC24

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
2 - 5

RBC™ quantity
1

Battery installation
--

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
48mm , 4.8cm

Maximum width
102mm , 10.2cm

Maximum depth
140mm , 14.0cm

Net weight, kg
2.5

Gross weight, kg
2.77

Height of the transport package
89mm , 8.9cm

Depth of transport packaging
213mm , 21.3cm

The width of the transport package
is 175mm , 17.5cm

Colour
Black

Devices on a pallet
240

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
0 - 40 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-3000meters

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage range
175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load)

Frequency range
40-70 Hz

Total Harmonic Distortion Coefficient (THDi)
Power factor
> 99% (100% load)

Connection
Input terminal

Rated voltage
200/208/220/230/240 VAC, 1P2W+PE

Voltage regulation
±1%

Frequency
50/60 ± 0.05 Hz

Total harmonic distortion coefficient (THDv)

Power factor
1

A model with extended working hours
Terminal x1, programmable terminal x1

Overload capacity(1)106-125%:
5 min, 126-150%: 1 min, > 150%: 500 ms

Current peak ratio
3:1

Online mode
Up to 95.5%

Eco Mode
Up to 99%

Battery Type
VRLA/Lithium-ion

Display
Graphic LCD display with LED indicators

Port
USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3

Dimensions (W x D x H)

Standard operating time model:
● RT-5K/6K440 x 665 x 176 mm
● RT-8K/10K440 x 750 x 218 mm

A model with an extended working time:
● RT-5K/6K440 x 430 x 88.2 mm
● RT-8K/10K440 x 565 x 88.2 mm

Weight:
Model with standard operating time:
● RT-5K/6K54 kg
● RT-8K/10K85.5 kg

A model with an extended working time:
● RT-5K/6K10.9 kg
● RT-8K/10K15,2 kg

Operating temperature
0-55 °C (45-55 °C load reduction up to 75%)

Humidity
5-95% (non-condensing)

Noise level:
● RT-5K/6K● RT-8K/10K
Altitude above sea level
0-3000 m (decrease in nominal characteristics by 1%/100 m from 1000 to 3000 m)

Protection against penetration
IP20

Safety
CE, UKCA, TISI, RCM

EMS
IEC 62040-2

Efficiency
IEC 62040-3

Stability
RoHS, REACH

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery Manufacturer
Panasonic

Installation of the device
Closed battery pack

Battery voltage
48 V

Additional information
The SU48R3XLBP requires two (2) RBC27S.

number of RBC™ cartridges
1

Height
10,8 cm

Width
16.5 cm

Depth
57,2 cm

Net weight
24.55 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-5…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

number of RBC™ cartridges
1

Colour
Black

Height
20,8 cm

Width
16.5 cm

Depth
25,9 cm

Net weight
27,18 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

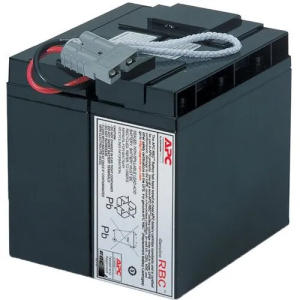

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Height
11,2 cm

Width
9.9 cm

Depth
7,4 cm

Net weight
1,7 kg

Installation execution
Non - stable

Battery capacity
4,5 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Main Input voltage
12 B direct current

Product Type
Replaceable battery cartridge

Battery Type
Lead-acid battery

Supplied equipment
Installation Guide

Free battery compartments
0

Pre-installed batteries
0

number of RBC™ cartridges
1

Colour
Black

Height
7,6 cm

Width
15,2 cm

Depth
20,3 cm

Net weight
5,2 kg

Installation execution
Non - stable

Operating ambient temperature
0...45 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95% without condensation

Ambient temperature during storage
-5…45 °C

Storage height
0,00…15240,00 m

Relative humidity of storage
0...95% without condensation
