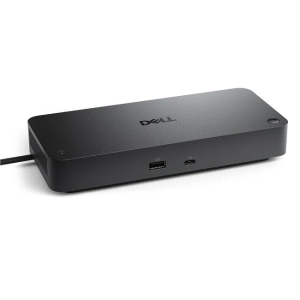

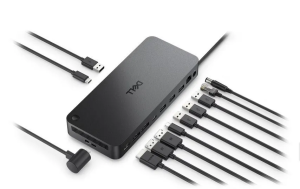

Dell Pro Dock WD25

Technical description Docking station: Dell Pro Dock WD25Z Model: WD25Z Purpose The docking station is designed to connect laptops and desktop computers via the USB Type-C interface. Provides expansion of the number of ports, connection of multiple external monitors, network devices, peripherals and power supply to compatible devices via a single cable. Supports corporate management and remote administration functions. Main technical specifications Connection interface Connection interface to the computer - USB Type-C. Connection type - wired. Cable length - 0.9 m. Power supply External power adapter - 180 W. Power supply to the laptop: up to 130 W for compatible Dell laptops; up to 96 W for laptops from other manufacturers (USB Power Delivery). Power supply to USB ports: 4 × USB Type-A - up to 4.5 W each; USB Type-C - up to 15 W; USB Type-C with DisplayPort Alt Mode - up to 7.5 W. Video The docking station supports connection of up to 4 external displays. Supported resolutions: Full HD (1920 × 1080); QHD (2560 × 1440); WQHD (3440 × 1440); 4K UHD (3840 × 2160); 5K (5120 × 2160); 6K (6144 × 3456). The maximum number of simultaneously connected monitors is 4 (depending on the capabilities of the connected computer). Interfaces and connectors Video connectors 2 × DisplayPort 1.4. 1 × HDMI 2.1. 1 × USB Type-C with support for DisplayPort 1.4 Alt Mode (Multi-Function DisplayPort). USB ports 4 × USB 3.2 Gen 2 Type-A (10 Gbps). 1 × USB 3.2 Gen 2 Type-C (10 Gbps). 1 × USB Type-C with DisplayPort 1.4 Alt Mode support. Network interface 1 × RJ-45 Ethernet 2.5 Gigabit (10/100/1000/2500 Mbps). Performance Maximum data transfer rate is up to 10 Gbps via USB 3.2 Gen 2. The aggregate throughput of interfaces is up to 1.25 GB/s. Supported operating systems Windows 10. Windows 11. Ubuntu 24.04. Red Hat Enterprise Linux 9.6. ChromeOS 137. Management functions Supported: Wake-on-LAN; PXE Boot; MAC Address Pass-Through; WLAN to LAN Switch; Kernel DMA Protection; Dell Command Update; Dock Power Button Sync; Firmware update from computer; Firmware update after device disconnection; The ability to disable ports using administrative tools. Security: Kensington Security Slot. Noble Wedge Lock Slot. Dimensions: Width: 205 mm. Depth: 90 mm. Height: 35.3 mm. Weight: 550 g. Package Contents: Dell Pro Dock WD25Z. 180W Power Adapter. Power Cord. Quick Start Guide. Safety and Regulatory Information.

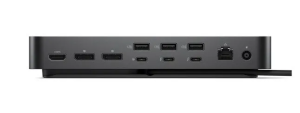

Interfaces/Ports
Interfaces
Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)

Interfaces/Ports
Interfaces
Video interfaces

2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4

USB Ports (Data Only)

4 x USB-A 3.2 Gen 2 (10 Gbps)
1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)

4 x USB-A 3.2 Gen 2 (4.5W each)
1 x USB-C 3.2 Gen 2 (15W)
1 x USB-C Multi-function DisplayPort (7.5W)
All deliver power with or without PC

USB Power Delivery

130W (Dell systems)
96W (non-Dell systems)

Technical description Docking station: Dell Pro Thunderbolt 4 Dock Model: WD25TB4 Purpose The docking station is designed to connect laptops and desktops via the Thunderbolt 4 (USB Type-C) interface. Provides connection to multiple external monitors, peripheral devices, wired Ethernet network and charging of compatible devices via a single cable. Supports enterprise management and remote administration functions. Main technical specifications Connection interface Connection interface to the computer - Thunderbolt 4 (USB Type-C). Connection type - wired. Cable length - 0.83 m (2.72 ft). Power supply External power adapter - 180 W. Power supply to the laptop: up to 130 W for compatible Dell laptops; up to 96 W for laptops from other manufacturers (USB Power Delivery). Power to peripheral devices: 4 × USB-A - up to 4.5 W each; 1 × USB-C - up to 15 W; 1×USB-C with DisplayPort Alt Mode — up to 7.5W; 2×Thunderbolt 4 — up to 15W each. Monitor Support The dock supports connection of up to 4 external displays. Maximum supported resolutions (depending on the capabilities of the connected computer and Display Stream Compression technology): 4×QHD (2560×1440) @ 60Hz; 3×WQHD (3440×1440) @ 60Hz; 4×4K UHD (3840×2160) @ 60Hz; 2×6K (6144×3456) @ 60Hz; 1×8K UHD (7680×4320) @ 60Hz; 1×5K WUHD (5120×2160) @ 60Hz. Interfaces and connectors Video connectors 2×DisplayPort 1.4. 1×HDMI 2.1. 1×USB Type-C with support for DisplayPort 1.4 Alt Mode. 2×Thunderbolt 4 (downstream). USB ports 4×USB 3.2 Gen 2 Type-A (10 Gbps). 1×USB 3.2 Gen 2 Type-C (10 Gbps). 1×USB Type-C with support for DisplayPort 1.4 Alt Mode. 2×Thunderbolt 4. Network interface 1×RJ-45 Ethernet 2.5 Gigabit (10/100/1000/2500 Mbps). Performance Maximum data transfer rate via USB is up to 10 Gbps. The Thunderbolt 4 interface provides a throughput of up to 40 Gbps. The maximum data transfer rate through the docking station is up to 1.25 GB/s. Supported operating systems Windows 10. Windows 11. Ubuntu 24.04. Red Hat Enterprise Linux 9.6. macOS. ChromeOS. Management features Supported: Intel AMT over Thunderbolt (for compatible PCs with Intel vPro); Wake-on-LAN; PXE Boot; MAC Address Pass-Through; WLAN to LAN Switch; Kernel DMA Protection; Dell Command Update; Dell Display and Peripheral Manager; Dock Power Button Sync; Firmware update via host computer; Firmware update after device disconnection; Ability to disable ports using administrative tools. Security Kensington Security Slot. Noble Wedge Lock slot. Dimensions Width - 205 mm. Depth - 90 mm. Height - 35.3 mm. Weight: 0.57 kg (1.25 lb). Package contents: Dell Pro Thunderbolt 4 Dock WD25TB4. 180W power adapter. Power cable. Quick start guide. Safety and regulatory information.
