IP-телефон Fanvil V62 Pro

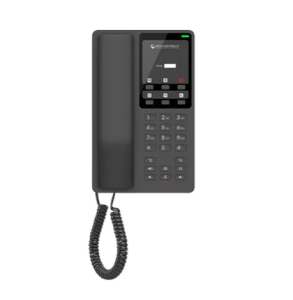

The GHP Series of hospitality phones includes the easy-to-use GHP620/GHP620W and GHP621/GHP621W IP phones for any hotel room, which can be programmed and configured to meet the needs of hotels and their guests. The GHP620W and GHP621W models feature built-in dual-band Wi-Fi to support wireless network deployments. This series features a high-definition speakerphone, two SIP accounts/lines, six programmable keys, ten speed-dial keys, three-way voice conferencing, support for the full-band OPUS voice codec, and an advanced jitter-tolerance algorithm that tolerates up to 30% packet loss without affecting voice quality. The GHP Series is supported by the Grandstream Device Management System (GDMS), which provides a centralized interface for configuring, provisioning, managing, and monitoring Grandstream endpoint deployments. The GHP series IP phones can be desktop or wall-mounted and can be powered via PoE (GHP620/GHP621), a power adapter (GHP620W/GHP621W), or a USB Type-C charger. Their sleek and compact design makes the GHP620/GHP620W and GHP621/GHP621W ideal for not only hotels but also apartments, dormitories, hospitals, and retail spaces.

The GHP Series of hospitality phones includes the easy-to-use GHP620/GHP620W and GHP621/GHP621W IP phones for any hotel room, which can be programmed and configured to meet the needs of hotels and their guests. The GHP620W and GHP621W models feature built-in dual-band Wi-Fi to support wireless network deployments. This series features a high-definition speakerphone, two SIP accounts/lines, six programmable keys, ten speed-dial keys, three-way voice conferencing, support for the full-band OPUS voice codec, and an advanced jitter-tolerance algorithm that tolerates up to 30% packet loss without affecting voice quality. The GHP Series is supported by the Grandstream Device Management System (GDMS), which provides a centralized interface for configuring, provisioning, managing, and monitoring Grandstream endpoint deployments. The GHP series IP phones can be desktop or wall-mounted and can be powered via PoE (GHP620/GHP621), a power adapter (GHP620W/GHP621W), or a USB Type-C charger. Their sleek and compact design makes the GHP620/GHP620W and GHP621/GHP621W ideal for not only hotels but also apartments, dormitories, hospitals, and retail spaces.

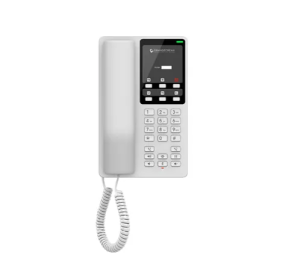

Grandstream GHP630 — гостиничный IP‑телефон с цветным экраном

Grandstream GHP630 — это компактный и функциональный IP‑телефон, разработанный для гостиниц, жилых комплексов, офисов и других объектов с высокой нагрузкой на телефонию. Устройство обеспечивает удобство использования, высокое качество аудио и широкие возможности телефонии, включая поддержку нескольких линий, HD‑звук и централизованное управление. :contentReference[oaicite:1]{index=1}

Основные характеристики

• Тип: стационарный IP‑телефон для гостиниц и корпоративной телефонии
• Поддержка SIP: 2 SIP‑аккаунта и 2 линии
• Экран: 3.5″ цветной LCD с разрешением 480×320 пикселей
• Графический интерфейс с интуитивной навигацией
• Сетевой интерфейс: 1 × 10/100 Mbps Ethernet порт с Auto‑Negotiation и PoE Class 2
• Поддержка централизованного управления: Grandstream Device Management System (GDMS)
• Подключение питания через PoE или адаптер (для моделей с адаптером)
• USB Type‑C порт для зарядки внешних устройств
• Hearing Aid Compatibility (HAC) — совместимость с слуховыми аппаратами
• 6 контекстно‑зависимых программируемых клавиш
• 10 клавиш быстрого набора
• 3‑сторонняя аудио конференция

Аудио и голосовые функции

• HD‑аудио с поддержкой широкополосного кодека G.722
• Полный диапазон OPUS кодека для максимального качества звука
• Подавление эха, VAD, CNG, AEC, AGC, AJB
• Поддержка DTMF (In‑band, RFC2833, SIP INFO)

Дополнительные возможности

• Dial, Answer, Redial, Flash, Hold/Unhold, Transfer, Conference
• Гибкие настройки набора номера и многопользовательские сценарии
• Поддержка службы E911 и многоадресного пейджинга
• Enterprise‑уровень сетевой безопасности
• Может быть установлено на стол или на стену

Применение

Grandstream GHP630 идеально подходит для гостиниц, апартаментов, офисов, больниц, магазинов и других объектов, где требуется надёжная VoIP‑телефония с удобным интерфейсом, поддержкой нескольких линий и централизованным управлением. Это устройство обеспечивает высокое качество связи и простоту эксплуатации для гостей и сотрудников.

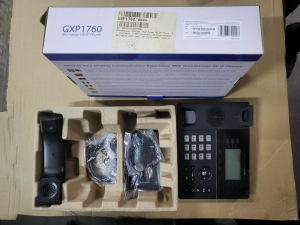

The GXP1760 is a mid-range IP phone with a sleek new design and a mid-range call feature set. It supports 6 lines, 3 SIP accounts, 6 dual-color line buttons, and 4 XML programmable context-sensitive softkeys on a 200 x 80 pixel (3.3”) backlit LCD. For personalization, the GXP1760 features a customizable ringtone/ringback tone and is compatible with advanced web and enterprise applications, as well as a weather service. This phone is also one of the first Grandstream models equipped with a Kensington lock – one of the most common anti-theft devices on the market. The GXP1760 is equipped with dual 10/100 Mbps auto-sensing network ports. This mid-range IP phone offers users worldwide excellent performance and appearance at an affordable price.

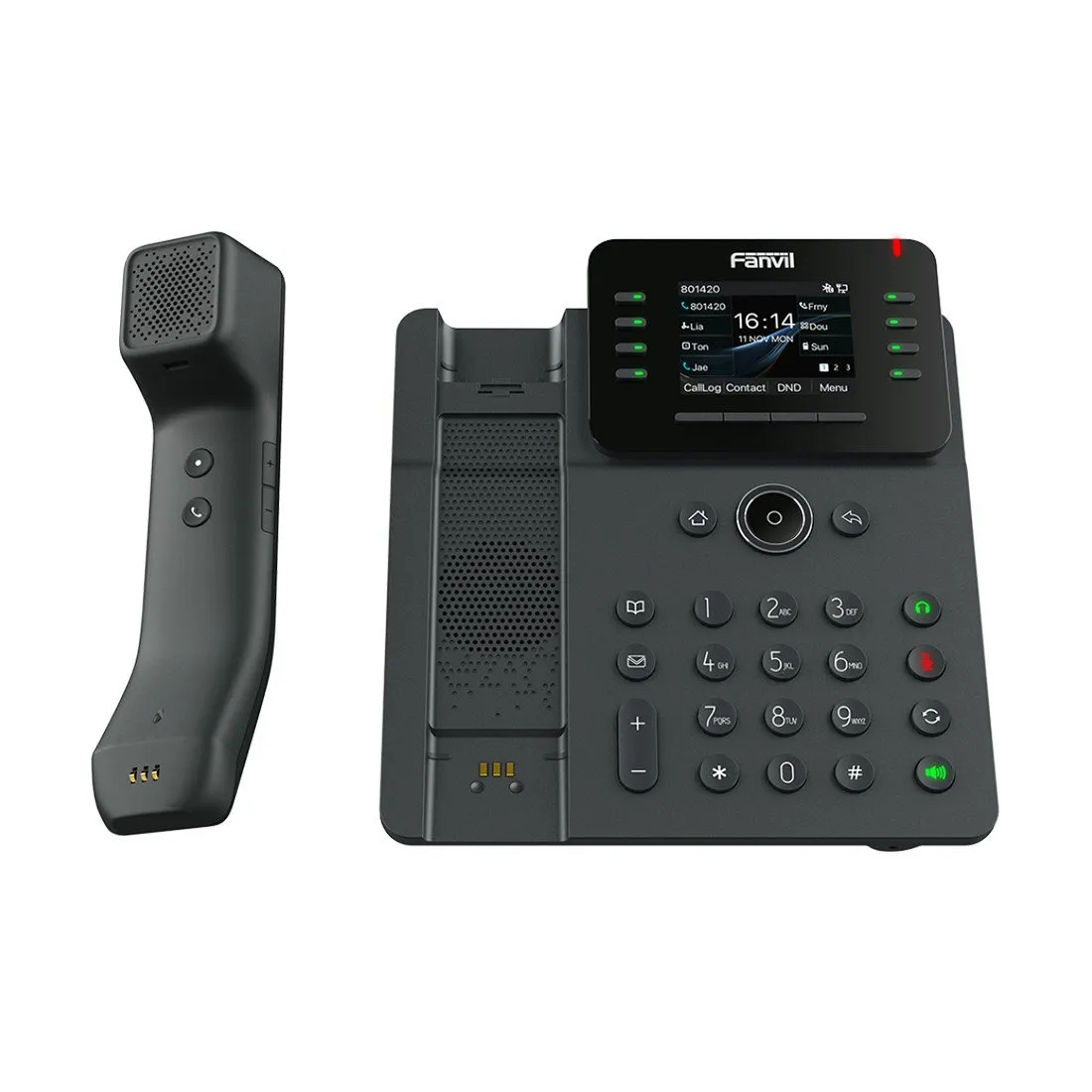

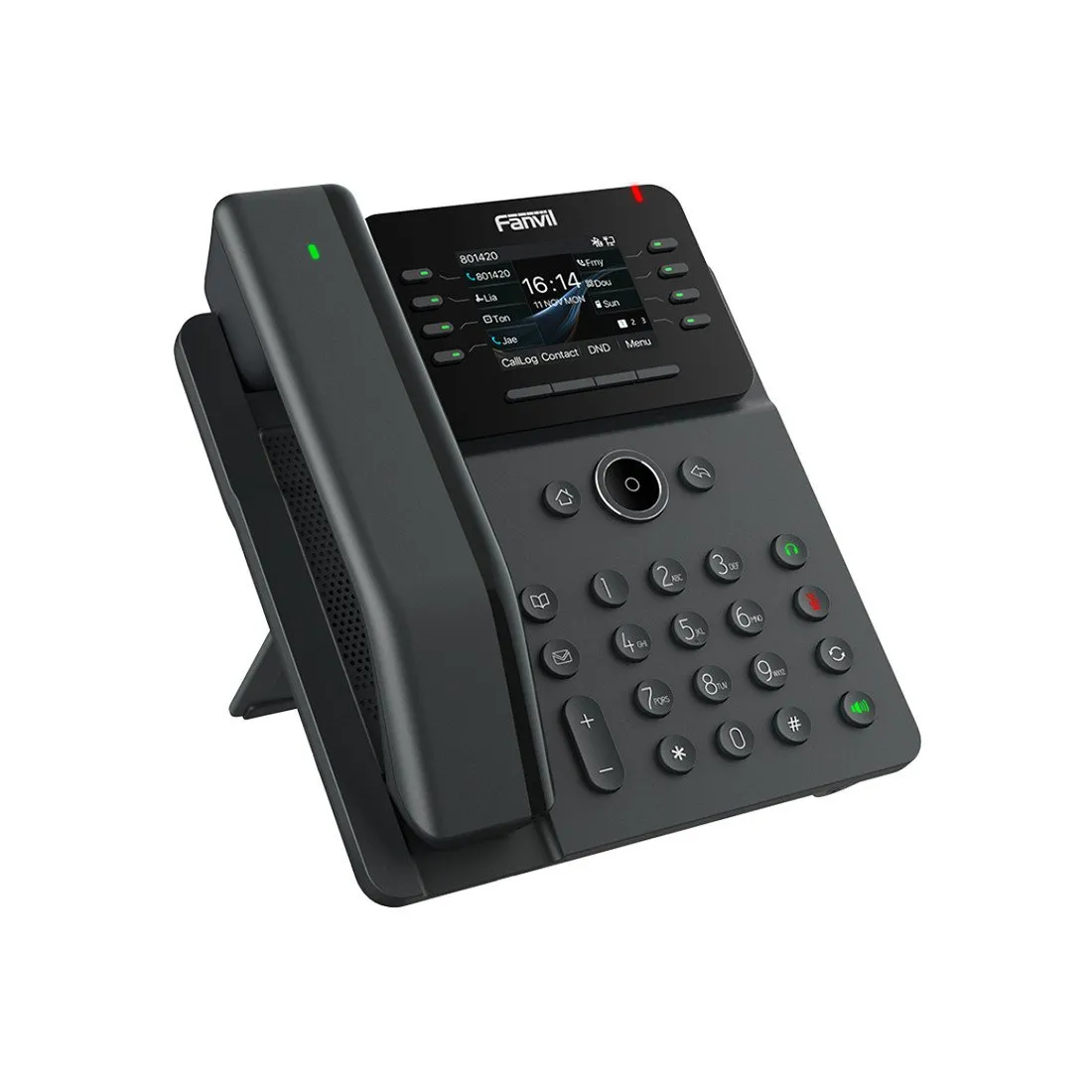

IP‑телефон Fanvil V61W

Fanvil V61W — современный настольный IP‑телефон с поддержкой Wi‑Fi, предназначенный для корпоративной IP‑телефонии. Устройство сочетает в себе удобный цветной интерфейс, высокое качество звука, гибкие сетевые возможности и удобство беспроводного подключения.

Телефон оснащён ярким 2.4" цветным дисплеем, поддерживает до 4 SIP‑линий и обеспечивает качественную передачу голоса благодаря технологии HD Voice и современным аудиокодекам. Поддержка Wi‑Fi позволяет упростить установку устройства в местах с ограниченным доступом кабелей, а также обеспечивает мобильность рабочих мест.

Основные особенности

• Цветной дисплей 2.4" (320 × 240)
• Поддержка 4 SIP‑линий
• HD Voice с кодеками G.722, Opus, G.711 и др.
• 6‑сторонняя аудиоконференция
• Беспроводное подключение Wi‑Fi 2.4/5 ГГц
• Ethernet 10/100 Мбит/с
• Поддержка питания PoE через Ethernet
• До 12 программируемых DSS‑клавиш
• Локальная телефонная книга до 1000 контактов
• Поддержка IPv4 / IPv6
• Настольная или настенный монтаж
• Разъём RJ9 для гарнитуры

Технические характеристики

• Дисплей: 2.4" цветной LCD, 320 × 240
• SIP‑линии: до 4
• Аудио: HD Voice, G.722, Opus, G.711 и др.
• Конференция: до 6 участников
• Сетевые интерфейсы: Wi‑Fi 2.4/5 ГГц, Ethernet 10/100 Мбит/с
• DSS‑клавиши: до 12 программируемых
• Питание: PoE (802.3af) или адаптер питания
• Телефонная книга: до 1000 контактов
• Поддержка IPv4 / IPv6
• Монтаж: настольная или настенный
• Гарнитура: RJ9

Применение

IP‑телефон Fanvil V61W подходит для корпоративных офисов, колл‑центров, гостиниц и предприятий малого и среднего бизнеса, где требуется стабильная беспроводная связь и гибкие сетевые возможности. Модель отлично подходит для гибких рабочих мест с ограничением кабельной инфраструктуры.

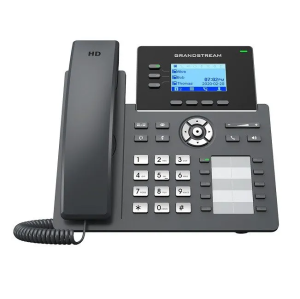

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A
record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP*, IPv6

Network interfaces
Two switched 10/100/1000 Mbps Ethernet ports with auto-detection,
built-in PoE support (only in the GRP2604P model)

Screen 132 x 64 (2.7 inch’) dots graphic LCD display with backlight

Function buttons
3 line buttons with two-color LEDs and support for 6 SIP accounts, 4
XML context-sensitive on-screen buttons, 5 buttons
(navigation, menu). 10 BLF buttons, 8 special function buttons
for: MESSAGE (with LED indicator), TRANSLATION, HEADSET,
MUTE THE MICROPHONE, SEND/REDIAL, SPEAKERPHONE
COMMUNICATION, VOLUME +, VOLUME
Additional RJ9 ports headset jack (EHS support for Plantronics, Jabra and
Sennheiser)

Voice codecs and features
Support G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS,
in- and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC,
AGC, AJB

Telephony functions
Hold, Transfer, Forwarding, 5-way Conference, Call Parking
, Call Interception, Shared Line (SCA)/parallel
call indication (BLA), downloadable phonebook (XML, LDAP, up to 2000 entries),
call waiting, call log (up to 800 entries), auto-dial when
you pick up the handset, auto-answer, click-to-dial, flexible number plan, hot
table system, personalized ringtones and music on hold, backup
server and fault tolerance

HD Audio
Yes, HD quality in the handset and speaker with broadband sound support
Base Yes, 2 positions available (39° & 45°), wall mounting option
(*Wall mounting bracket sold separately)

QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Safety
User and administrative level password,
MD5 and MD5-sess authentication, configuration file with 256-bit AES encryption,
SRTP*, TLS, 802.1x media access control, secure boot

Supported languages
English, Chinese, Korean, Japanese, German, Italian,
French, Spanish, Portuguese, Russian, Croatian, etc. languages

Update/
Automatic setup
Firmware update via FTP/TFTP/HTTP/HTTPS, group configuration
using GDMS (Grandstream Device Management System),
TR-069 or XML configuration file with AES encryption

Power and energy efficiency
Universal power supply
Input 100-240V AC 50-60Hz;
Output +5V post. current, 600mA; PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE)
(only for GRP2604P model)

Temperature and humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% non-condensing

Package contents
Phone model GRP2604, tube with wire, base, universal
power supply (only for model GRP2604), network cable, quick
guide, labels for BLF

Sizes
Dimensions: 214mm (L) x 206mm (W) x 68mm (H) (with tube)
Device weight:780g; Package weight:1100g for GRP2604P and 1150g for GRP2604

Compliance with standards
GRP2604/GRP2604P
FCC: Part 15 Class B; FCC Part 68 HAC;
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS
CISPR32; AS/NZS 62368.1; AS/CA S004;
IC: ICES-003; CS-03;

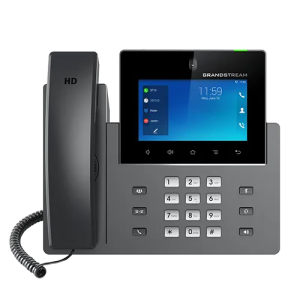

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0
