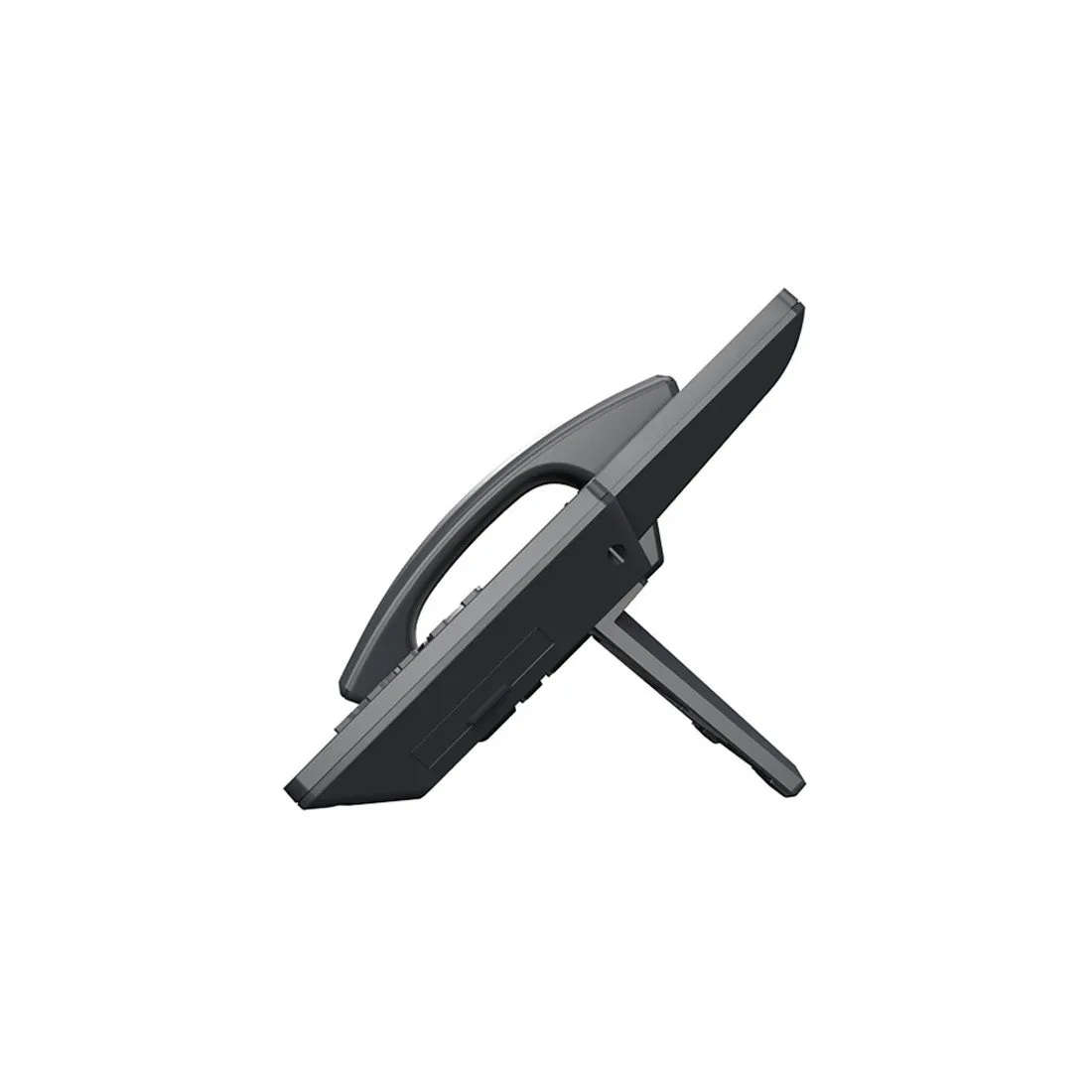

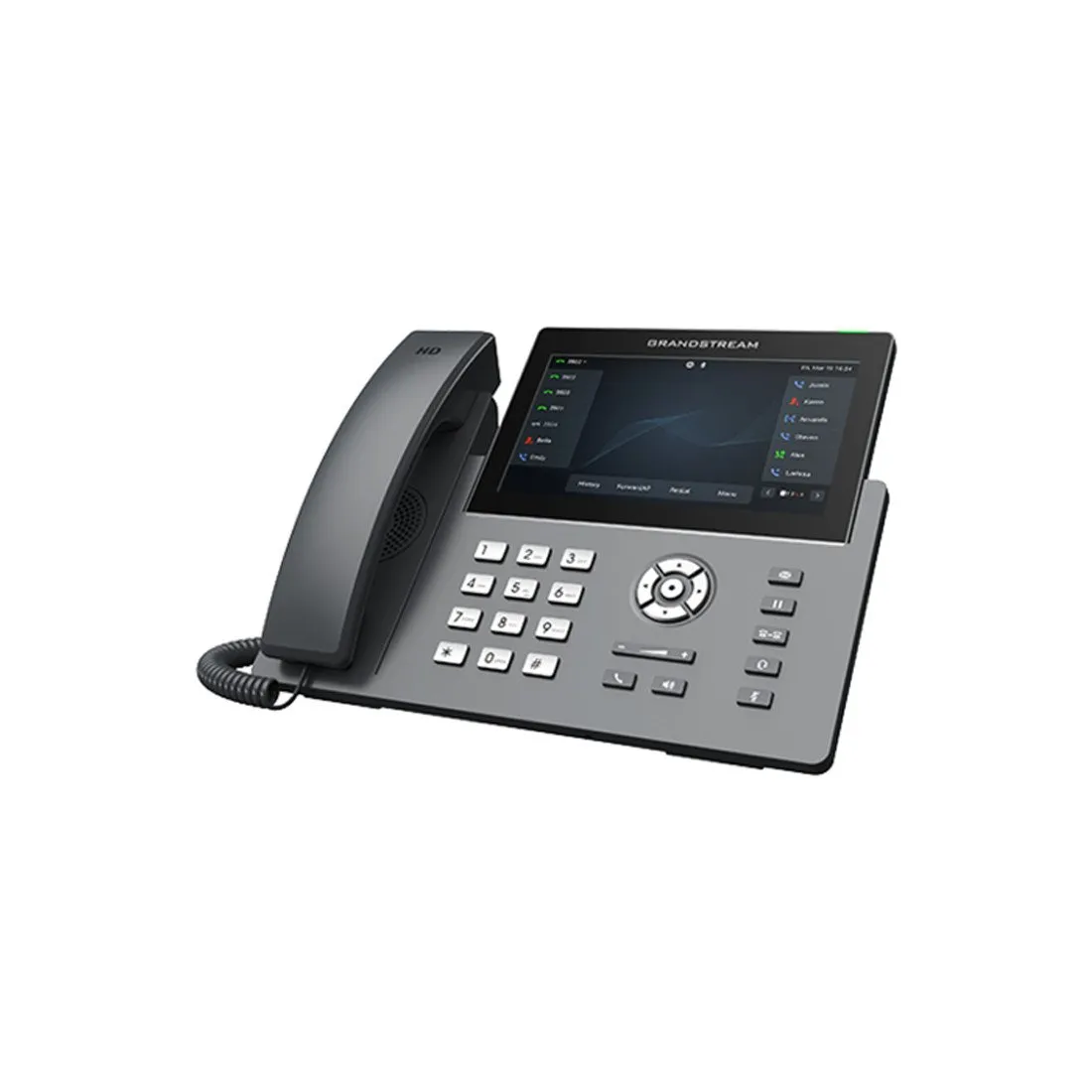

IP телефон Grandstream GRP2670

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (record A, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS,
SRTP, IPV6

Network interfaces
Two switchable 10/100/1000 Mbit/s Gigabit Ethernet ports with
auto-negotiation and integrated PoE module

Graphic display
5" TFT LCD display (1280×720)

Wi-Fi
Yes, built-in dual-band Wi-Fi module 802.11 a/b/g/n/ac (2.4 and 5 GHz)

Bluetooth
Yes, the built-in module

Main buttons
14 line buttons with support for up to 6 SIP accounts, 6 programmable (XML)
contextual touch keys, 5 menu/navigation keys, 9 special keys:
MESSAGE (with LED indicator), TRANSLATE, HOLD, HEADSET,
SOUND OFF, SEND/REDIAL, SPEAKER, THUNDER.+, THUNDER.–
Additional connectors RJ9 headset jack (allowing you to connect an EHS headset adapter
Plantronics) and a USB connector

Voice codecs and features
Supports G.729A/B, G.711m/a-law, G.726-32, G.722 (broadband), G723.1, iLBC,
OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony functions
Retention, transfer, forwarding, five-participant conference, call parking
, call interception, single internal number (shared call appearance,
SCA), bridged line appearance (BLA) function, downloadable
phone book (XML, LDAP, up to 2000 elements), call waiting
, call log (up to 2000 recordings), XML screen setup, auto-dial when the handset is picked up,
answering machine, call from the website (click-to-dial), flexible configuration of subscriber groups,
support for shared workplace usage, personalization of ringtones
and ringtones on hold, switching to a backup server in case of failure

HD Audio
Yes (HD tube and speaker), with broadband audio support
and two microphones

Expansion Module
Yes, GBX20

Rack
Yes, with two tilt angles and wall mount (*Wall mount
is available separately)

Quality of service
Layer 2 (802.1Q, 802.1P), 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, authentication on the database
MD5 and MD5-session, configuration file with 256-bit AES encryption, SRTP, TLS,
802.1x-based media access control, secure download

Languages
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via FTP/TFTP/TFTPS/HTTP/HTTPS, mass configuration
using GDMS/TR-069 or XML configuration file with AES encryption

Nutrition and energy efficiency
The package includes a universal power adapter:
input: 100-240 V; output: +12V, 1.0 A;
integrated Power-over-Ethernet module (802.3af)
IEEE 802.3az Ethernet energy efficiency
Maximum power consumption: 6.2W (power adapter)

Temperature and humidity
Operation: from 0 to 40 °C
Storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package Contents
GRP2650 phone, handset with wire, stand, 12V power adapter, Network
cable, Quick installation guide

Physical characteristics
Sizes: device weight 1050 g; package weight 1620 g
Dimensions: 263 × 210 x 82 mm

The GXV3370 is a high-performance, enterprise-class desktop video phone. It features a 7-inch touchscreen, a megapixel camera for HD video conferencing, built-in Wi-Fi and Bluetooth modules, Gigabit network ports, and modern telephony features. It runs Android 7.0 and has SDK support for customized applications. The GXV3370 is fully compatible with most SIP platforms and can be integrated into a single system with Grandstream devices, including SIP-based surveillance cameras, intercoms, IP PBXs, and video conferencing services and systems. This phone is the ideal choice for users who need a desktop video communication solution. 16 lines, up to 16 SIP accounts Built-in megapixel camera with a shutter for video communication Runs on the Android 7.0 operating system Built-in Bluetooth for synchronization with mobile devices and connecting Bluetooth headsets Dual switchable ports with auto-sensing 10/100/1000 Mbps Integrated dual-band WiFi (2.4 Ghz & 5 Ghz) PoE/PoE+ support for network connection and power HD speaker, echo cancellation and double-talk 4-core 1.3 GHz ARM Cortex A53 processor with 2 GB RAM and 8 GB eMMC flash memory 7 '' (1024 × 600) capacitive TFT LCD screen with support for up to 5 simultaneous touches TLS and SRTP encryption to protect calls and accounts Conducting 7-way audio conferences and 3-way 720p 30fps HD video conferencing

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV,
NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,
TLS, SRTP*, IPV6 (expected), OpenVPN (expected)

Network interface
Gigabit Ethernet port with auto-detection and built-in PoE+ (IEEE
802.3at Class 4)

Graphic display
4.3” IPS LCD display with 800x480 resolution

Microphone
3 cardioid microphones; capture distance 12 ft., 360° coverage

Speaker
Frequency: 220-14,000 Hz
Volume Up to 86 dB at 0.5 meters

Bluetooth
Yes, built-in. Bluetooth 4.0

Wi-Fi
Yes, built-in. 802.11 b/g/n

Additional ports
3.5mm audio port, USB Micro-B, RJ48 flex port

Speech codecs
Support G.711µ/a, G.722, G.726, iLBC, Opus, G.722.1 and G.722.1c (expected),
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), G.729A/B,
VAD, CNG, AEC, PLC, AJB, AGC

Telephony functions
6 SIP accounts, retention, forwarding, translation, 7-way
conference, call parking, call interception, downloadable
phonebook (XML, LDAP, up to 2000 entries), call waiting, call history
(up to 2000 entries), XML screen setup, automatic call reception,
mouse-click dialing, flexible number plan, "hot" workplace,
personalized ringtones and music on hold,
server reservation and switching in case of failure

Application Examples
Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google Calendar,
import/export data from a mobile phone via Bluetooth, etc. API/SDK
is available for advanced development of user applications

HD Audio
Yes, a speaker with broadband audio support

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS.

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit configuration file protected
by AES, TLS, SRTP*, HTTPS, 802.1x media access control

Multi-language support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Chinese, Korean, Japanese, etc.

Update/Provision of services
Firmware update via TFTP/HTTP/HTTPS or local HTTP download,
mass connection using TR-069 or AES encrypted
XML configuration file

Energy consumption and environmental efficiency
Universal power supply: Input: 100-240VAC 50-60Hz; Output: 12VDC,2A (24W)

Physical properties
Dimensions: 280mm(W) x 285mm(L) x 60mm(H) Weight:1.34kg; Package weight: 2.35kg

Temperature and Humidity
Operation: from 0°C to 40°C
Storage: -10°C to 60°C
Humidity: from 10% to 90% without condensation

Contents
of the delivery set

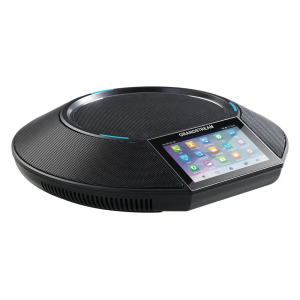

Phone GAC2500, Universal power supply, Network cable, USB cable,
RJ48 cascade cable, Quick Installation Guide

Accordance
FCC: Part 15(CFR 47) Class B, FCC Part 15C 15.247; UL 60950 (power adapter).
CE: EN 55032,EN 55035,EN 61000-3-2,EN 61000-3-3,ETSI EN 301 489-1,ETSI EN 301
489-17, ETSI EN 300 328, EN 60950-1,EN 62311, RoHS.
RCM: AS/NZS CISPR 32, AS/NZS 60950.1, AS/NZS 4268.

The GXV3370 is a high-performance, enterprise-class desktop video phone. It features a 7-inch touchscreen, a megapixel camera for HD video conferencing, built-in Wi-Fi and Bluetooth modules, Gigabit network ports, and modern telephony features. It runs Android 7.0 and has SDK support for customized applications. The GXV3370 is fully compatible with most SIP platforms and can be integrated into a single system with Grandstream devices, including SIP-based surveillance cameras, intercoms, IP PBXs, and video conferencing services and systems. This phone is the ideal choice for users who need a desktop video communication solution. 16 lines, up to 16 SIP accounts Built-in megapixel camera with a shutter for video communication Runs on the Android 7.0 operating system Built-in Bluetooth for synchronization with mobile devices and connecting Bluetooth headsets Dual switchable ports with auto-sensing 10/100/1000 Mbps Integrated dual-band WiFi (2.4 Ghz & 5 Ghz) PoE/PoE+ support for network connection and power HD speaker, echo cancellation and double-talk 4-core 1.3 GHz ARM Cortex A53 processor with 2 GB RAM and 8 GB eMMC flash memory 7 '' (1024 × 600) capacitive TFT LCD screen with support for up to 5 simultaneous touches TLS and SRTP encryption to protect calls and accounts Conducting 7-way audio conferences and 3-way 720p 30fps HD video conferencing

The GXV3370 is a high-performance, enterprise-class desktop video phone. It features a 7-inch touchscreen, a megapixel camera for HD video conferencing, built-in Wi-Fi and Bluetooth modules, Gigabit network ports, and modern telephony features. It runs Android 7.0 and has SDK support for customized applications. The GXV3370 is fully compatible with most SIP platforms and can be integrated into a single system with Grandstream devices, including SIP-based surveillance cameras, intercoms, IP PBXs, and video conferencing services and systems. This phone is the ideal choice for users who need a desktop video communication solution. 16 lines, up to 16 SIP accounts Built-in megapixel camera with a shutter for video communication Runs on the Android 7.0 operating system Built-in Bluetooth for synchronization with mobile devices and connecting Bluetooth headsets Dual switchable ports with auto-sensing 10/100/1000 Mbps Integrated dual-band WiFi (2.4 Ghz & 5 Ghz) PoE/PoE+ support for network connection and power HD speaker, echo cancellation and double-talk 4-core 1.3 GHz ARM Cortex A53 processor with 2 GB RAM and 8 GB eMMC flash memory 7 '' (1024 × 600) capacitive TFT LCD screen with support for up to 5 simultaneous touches TLS and SRTP encryption to protect calls and accounts Conducting 7-way audio conferences and 3-way 720p 30fps HD video conferencing

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,
SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP,
TR-069, 802.1x, TLS, SRTP*, CDP/SNMP/RTCP-XR

Network interfaces
Dual 10/100/Mbit/s network ports with automatic identification,
Integrated PoE function (only in GXP1610P/GXP1615)

Graphic display
Graphic LCD display 132*48 pixels (2.95’)

Function Keys
2 line keys with two-color LED, and 1 SIP account, 3 context-sensitive programmable
touch keys, 5 navigation/menu keys, 13
special function keys PAGE/INTERCOM (PAGING/INTERCOM),
PHONEBOOK (PHONEBOOK), MESSAGE (MESSAGE), HOME (HOME)),
HOLD (HOLD), RECORD (RECORD), MUTE (OFF SOUND), HEADSET
(HEADSET), TRANSFER (TRANSFER), CONFERENCE (CONFERENCE), SEND and
REDIAL, SPEAKERPHONE, VOLUME

Voice codecs
Support G.711µ/a, G.722 (Broadband), G.723, G.726-32, G.729 A/B, iLBC,
In-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG,
AEC, PLC, AJB, AGC

Telephony Functions
Hold, Transfer, Redirection (unlimited/no-answer/busy),
Parking/Call withdrawal, Downloadable Phonebook (XML, LDAP, up to 1000
items), Call waiting, Call history (up to 200 entries), Auto-dial,
Auto-answer, One-click dialing, Flexible Numbering plan, Hot
Desking, Personalized music ringtones, Server redundancy
and fault tolerance

Headset jack
Headset with RJ9 connector (which allows the use of EHS with headsets
Plantronics)

Base stand
Yes, 2 corner positions are available, the possibility of mounting on the wall

Possibility of mounting on the wall
Yes

QoS
QoS layer 2 (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS)

Safety
User and administrator level access control
, MD5 and MD5-sess authentication, 256-bit encrypted
AES configuration file, media access control SRTP*, TLS, HTTPS, 802.1x

Multilingual support
English, German, Italian, French, Spanish, Portuguese,
Russian, Croatian, Simplified and Traditional Chinese, Korean,
Japanese, etc.

Updating/providing services
Updating the program via TFTP/HTTP/HTTPS, mass provision of services
via TR-069 or AES-encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency
Universal power Supply connector 100-240VAC 50-60Hz; Output +5VDC,
600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (only GXP1610P/
GXP1615)

Dimensions and weight
Dimensions 209mm(L) x 184.5mm(W) x 76.2mm(H) (With tube), Device weight: 0.74 kg;
Package Weight: 1.1 kg (GXP1610/GXP1615) 1.0 kg (GXP1610P)

Temperature and Humidity
For operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% - 90%
Non - condensing

Contents of the delivery set

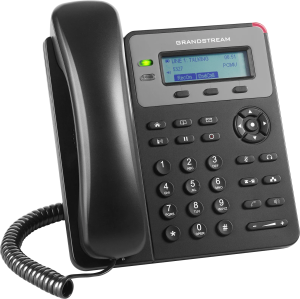

Phone GXP1610/GXP1610P/GXP1615, handset with cord, base,
universal power supply (GXP1610P/GXP1615), power cord, Manual
"Quick Start", brochure, GPL license

Accordance
FCC: Part 15, (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-
3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1

IP‑видеотелефон Fanvil V67

Fanvil V67 — флагманский корпоративный IP‑видеотелефон с большим регулируемым сенсорным экраном и расширенными возможностями аудио и видео связи. Устройство работает на базе Android 9.0 и сочетает функции видеотелефонии, мобильной связи, высокого качества HD‑аудио и гибких сетевых интерфейсов. V67 подходит для руководителей, колл‑центров, переговорных комнат и офисов, где важны видео‑ и аудиокоммуникации.

Телефон поддерживает до 20 SIP‑аккаунтов и обеспечивает видеозвонки с разрешением до Full HD (1080p). Он оснащён встроенной 5 МП видеокамерой с механическим затвором для приватности, регулируемым сенсорным экраном 7″ и RGB‑подсветкой DSS‑клавиш. Поддерживаются многоточечные аудиоконференции и видеоконференции, а также интегрированные Wi‑Fi и Bluetooth модули для гибких сетевых подключений.

Основные особенности

• 7″ цветной регулируемый IPS‑сенсорный экран (1024 × 600)
• Поддержка до 20 SIP‑аккаунтов
• Встроенная 5 МП видеокамера с Full HD (1080p) и механическим затвором
• Поддержка видеовызовов и 3‑сторонней видеоконференции
• До 10‑сторонней аудиоконференции
• HD аудио с кодеками G.722 и Opus
• Встроенный Wi‑Fi (2.4 GHz и 5 GHz)
• Bluetooth 5.0 для гарнитур и аксессуаров
• До 112 виртуальных DSS‑клавиш с RGB‑подсветкой
• Два порта Gigabit Ethernet с поддержкой PoE
• Поддержка USB‑A порта
• Антибактериальная поверхность корпуса и клавиатуры

Технические характеристики

• Экран: 7″ цветной сенсорный IPS, разрешение 1024 × 600
• ОС: Android 9.0
• SIP‑аккаунты: до 20
• Видео: Full HD 1080p (H.264), встроенная 5 МП камера
• Аудио: HD Voice, кодеки Opus, G.722, G.711 и др.
• Аудиоконференция: до 10 участников
• Видеоконференция: до 3 участников
• Сетевые интерфейсы: 2 × Gigabit Ethernet (10/100/1000 Мбит/с) с PoE
• Wi‑Fi: 2.4 GHz / 5 GHz
• Bluetooth: версия 5.0
• DSS‑клавиши: до 112 (виртуальные)
• USB: USB‑A порт для гарнитур/аксессуаров
• Телефонная книга: до 2000 записей
• Журнал вызовов: до 1000 записей
• Поддержка IPv4 / IPv6
• Монтаж: настольная или настенный

Применение

Fanvil V67 подходит для корпоративных офисов, переговорных, колл‑центров и мест, где необходимы гибкие аудио‑ и видеокоммуникации. Устройство обеспечивает современные возможности видео‑ и голосовой связи, удобный интерфейс и высокую производительность в сетях IP‑телефонии.

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents

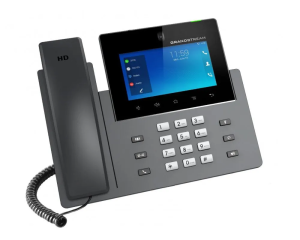

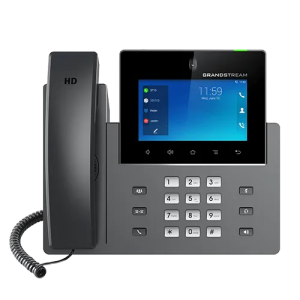

Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0

Protocols/standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A-record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP*, IPv6, OpenVPN®

Network interfaces
Two switchable 10/100/1000 Mbps ports with integrated PoE/PoE+ module

Graphic display
5.0" (1280 ×720) capacitive LCD touch screen, 5 touch points, IPS

Camera
Camera with CMOS matrix, protective shutter and tilt adjustment, 2 MP, 1080p, 30 fps

Bluetooth
Yes, built-in Bluetooth 5.0 module

Wi-Fi
Yes, dual-band dual-stream Wi-Fi module 5 (2.4 and 5 GHz), 802.11 a/b/g/n/ac

Additional connectors
RJ9 connector for Plantronics Headset EHS Adapter, USB 2.0 and USB 3.0 connectors

Main buttons
11 function keys: CONFERENCE, TRANSLATION, SENDING/REDIAL,
OFF SOUND, HEADSET, SPEAKER, VOLUME –/+. 3 special Android keys: HOME,
LAST, BACK

Voice codecs and features
Broadband Opus, Broadband G.722, G.711µ/a, G.729A/B, G.726-32, iLBC, In- and
out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0


H.264 BP/MP/HP video codecs and capabilities, video resolution up to 720p, frame rate up to 30 fps, bitrate up to 2 Mbps,
video conference for three participants (720p, 30 fps), flicker prevention technology,
autofocus and auto exposure

Telephony functions
Hold, transfer, forwarding (unconditional/no response/busy line),
call parking, call interception, 10-way audio conference (including the creator),
single internal number (shared call appearance, SCA)/combined line function (bridged
line appearance, BLA), virtual programmable key, downloading contacts (XML, LDAP,
up to 1000 elements), recording calls (locally and to the server), call log (up to 1000 entries),
call waiting, answering machine, XML screen setup, flexible configuration of subscriber groups,
personalization of ringtones and ringtones on hold, switching to a backup server in
case of failure

Typical applications
• Local applications: Contacts, Call log, File manager,
softkey, Settings, Browser, Clock, Voicemail, Calculator, Audio recording, GS store, etc.
• Supports third-party Android apps
• API/SDK available for custom application development

Android
Uses Android 11.0 OS

Application Deployment
Supports the development, download and use of Android 11-compatible applications
on a device with preparation control

HD audio
Yes, two omnidirectional microphones, an HD headset and a speaker with broadband
audio support

Rack
Table stand with three tilt levels

Extension Module
You can connect up to four GBX20 expansion modules with a color LCD display (272 x 480),
20 speed dial/BLF keys with two-color LEDs, two
navigation buttons and power consumption of up to 1.2 watts per module

Quality of service
Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety
Passwords for users and administrators, random default administrator password
, MD5 and MD5-sess authentication, 256-bit configuration file
AES encryption, TLS, SRTP*, HTTPS, access control to the transmission medium based on 802.1x,
secure download with protection against hacking

Languages
English, German, Italian, French, Spanish, Portuguese, Russian,
Croatian, Chinese, Korean, Japanese and others

Update/Setup
Firmware update via TFTP/HTTP/HTTPS or via HTTP local download, mass
configuration using an XML configuration file with TR-069 or AES encryption, GDMS

Power and energy efficiency
The package includes a universal power adapter. Input: 100-240
VAC; 50-60 Hz; Output: DC12V, 1.5 A (18 W).
Integrated PoE module * 802.3af, Class 3, PoE+ 802.3at, Class 4

Temperature and humidity
Operation: 0 to 40 °C; storage: -10 to 60 °C
Humidity: 10 to 90% non-condensing

Package contents
Phone GXV3450, headset with wire, stand, universal power adapter, network
cable, screen wipe, quick installation guide

Compatibility
FCC: CFR 47, Part 15, Subsection B, Class B; CFR 47, Part 15, Subsection C; CFR 47, Part 15,
Subsection E; Part 68 (HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE: EN 55032, Class B; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA: BS EN 55032, Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1;
ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268
RoHS 2.0
