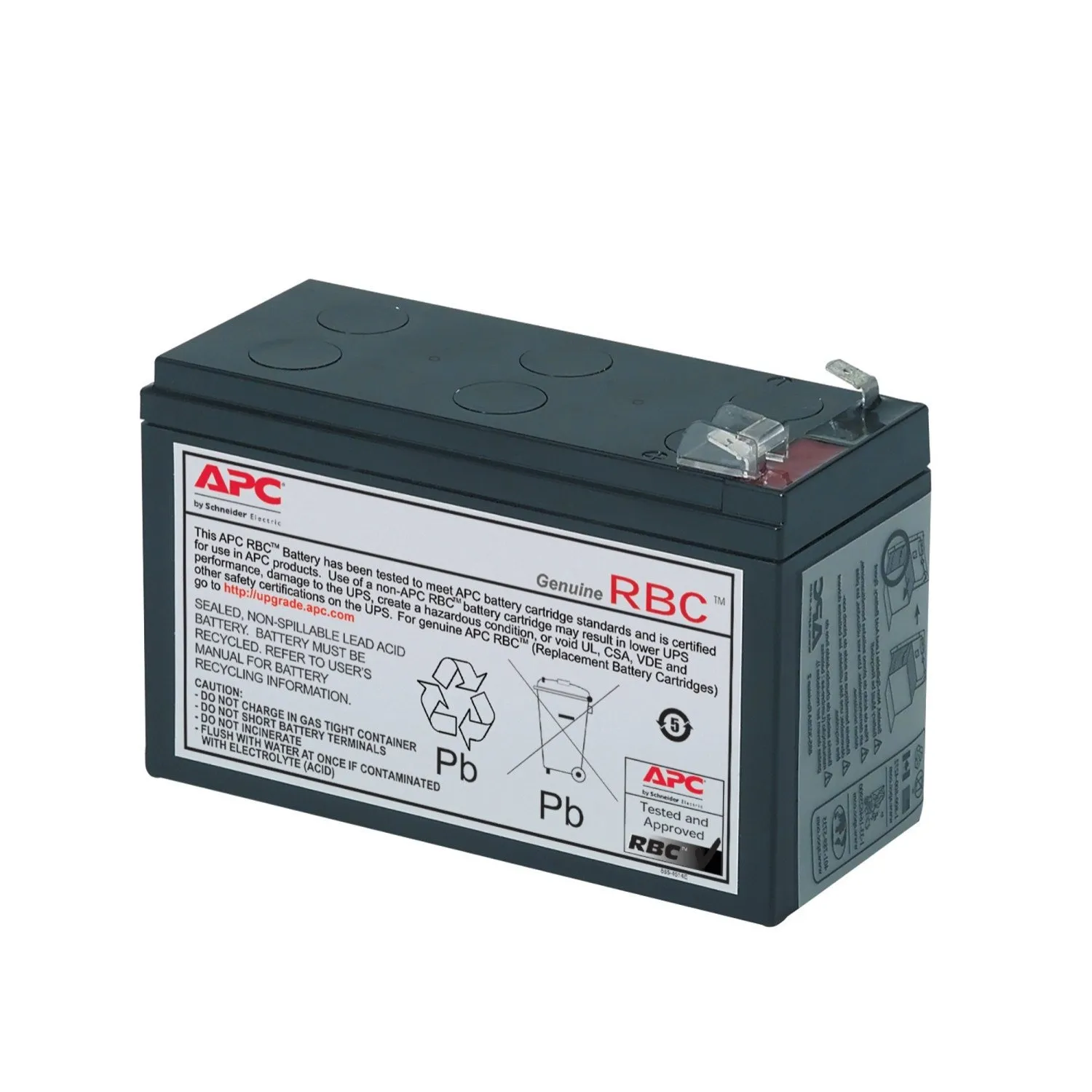

APC Replacement Battery Cartridge #40

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
48 V

Additional information
The battery is supplied assembled

number of RBC™ cartridges
1

Height
7 cm

Width
16.5 cm

Depth
41,9 cm

Net weight
11,23 kg

Installation execution
Non - stable

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery placement
Internal battery

Battery installation
Closed battery cartridge

Battery output voltage
48

Maximum height
89mm , 8.9cm

Maximum width
165mm , 16.5cm

Maximum depth
419mm , 41.9cm

Net weight, kg
10.45

Gross weight, kg
11.36

Height of the transport package
190mm , 19.0cm

The depth of the transport package
is 546mm , 54.6cm

Width of the transport package
292mm , 29.2cm

Color Black

Devices on a pallet
24

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Storage altitude above sea level
0-15000meters

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
2

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
104mm , 10.4cm

Maximum width
151mm , 15.1cm

Maximum depth
132mm , 13.2cm

Net weight, kg
5.58

Gross weight, kg
6.14

Height of the transport package
305mm , 30.5cm

The depth of the transport package
is 102mm , 10.2cm

Width of the transport package
229mm , 22.9cm

Colour
Charcoal

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
0 - 40 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-3000meters

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Installation of the device
Stand-alone battery

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
3.6 cm

Width
30,2 cm

Depth
10,2 cm

Net weight
2,6 kg

Installation execution
Non - stable

Battery capacity
9 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %

Main characteristics:
- Product Type - Replacement Battery Cartridge
- Number of cables - 1
- Battery type - Lead-acid battery
- Equipment supplied - All necessary connectors. Battery Recycling Guide. Metal compartment or cabinet for batteries. Reusable packaging. Installation Guide

Physical parameters:
- Height 7.6 cm
- Width 21.6 cm
- Depth 53.3 cm
- Net weight 19.09 kg
- Installation style: Non-rackmount
- USB compatible No

Environment parameters:
- Operating ambient temperature 0…40 °C
- Altitude 0...10000 ft
- Relative humidity 0…95%
- Ambient temperature during storage -15…45 °C
- Storage height 0.00…15240.00 m
- Relative storage humidity 0…95%

Batteries and battery life:
- Free battery compartments 0
- Pre-installed batteries 0
- Device installation Closed battery pack
- Battery voltage 48 V
- Number of RBC™ cartridges 1
- Replacement battery

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

RBC™ quantity
1

Battery installation
Closed battery cartridge

Maximum height
102mm , 10.2cm

Maximum width
133mm , 13.3cm

Maximum depth
152mm , 15.2cm

Net weight, kg
6.8

Gross weight, kg
7.0

Transport package height
140mm , 14.0cm

The depth of the transport package
is 171mm , 17.1cm

Width of the transport package
210mm , 21.0cm

Colour
Black

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-5 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters

Product Type
Replaceable battery cartridge

Number of cables
1

Battery Type
Lead-acid battery

Free battery compartments
0

Pre-installed batteries
0

Battery voltage
12 V

number of RBC™ cartridges
1

Colour
Black

Height
10,2 cm

Width
9,4 cm

Depth
15 cm

Net weight
3.68 kg

Installation execution
Non - stable

Battery capacity
10 Ah

Ambient operating temperature
0…40 °C

Altitude above sea level
0...10000 ft

Relative humidity
0...95 %

Ambient temperature during storage
-15…45 °C

Storage height
0,00…15240,00 m

The relative humidity of storage
is 0...95 %
